Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
Specifications
Brand Name :
WINDAN
Model Number :
WD-2-240W
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
800USD-1700USD 1-10sets
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000sets/Month
Delivery Time :
3 days
Packaging Details :
Iron shelf package
Lift Capacity :
4.0T
Car Max Lifting Height(mm) :
1745
Drop Time(appro.) :
30s
Power Supply :
220V/380V
Inner Width Between Posts(mm) :
2860
Min Height(mm) :
85/105
Rise Time(appro.) :
50s
Power Of Motor :
2.2KW
Height Of The Post(mm) :
2812
Description

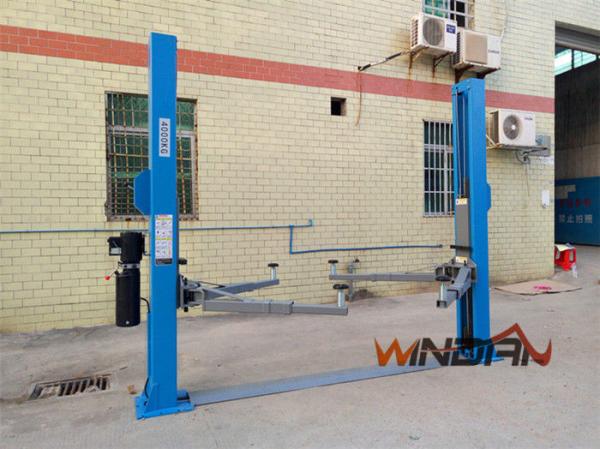

Single Manual Release Lock Hydraulic Car Lift 2 Post Auto Lift
1. Product Description

1.Capacity: 4000KG

1. Factory more than 10 years story
3.18 months warranty
4.ISO,CE,GOST

2. Features:

  1. Extra strong base frame, added strength and stability.
  2. Driven by double hydraulic cylinders, steel wire chain-type elevating system
  3. Automatic lock release, easy operation, just press UP/DOWN button.
  4. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
  5. Automatic arm restraints, lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.
  6. Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
  7. 3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
  8. Door opening protection rubber as standard.
  9. The overall design is suitable for tire tear open outfit, chassis maintenance, oil changes and maintenance, engineering vehicles such as regular vehicle maintenance; (suitable for conventional garage and service station to purchase)
  10. Economical but reliable cast-iron cover motor, Optional aluminum motor
  11. Optional imported pumping device

3.Technical Parameter:

Model WD-2-240W
Colour blue, grey,red

Lift

Capacity

 4.0T
Min height(mm) 85
Car max lifting height(mm) 1745
Rise time(appro.) 50s
Drop time(appro.) 30s
Power of motor 2.2KW
Power supply 220V/380V
Height of the post(mm) 2812
Inner Width between posts(mm) 2860
Total width 3450
Machine weight 0.59T

4. Car lift Quality Control:

Highly skilled and educated employees manufacture products in a modern facility, which incorporates

C.A.D. (Computer Aided Design), C.A.M. (Computer Aided Manufacturing) and C.N.C. (Computer Numeric

Controlled) manufacturing techniques. Quality management system follows ISO9001/ISO14001, and

our products are with CE and ISG certificate.

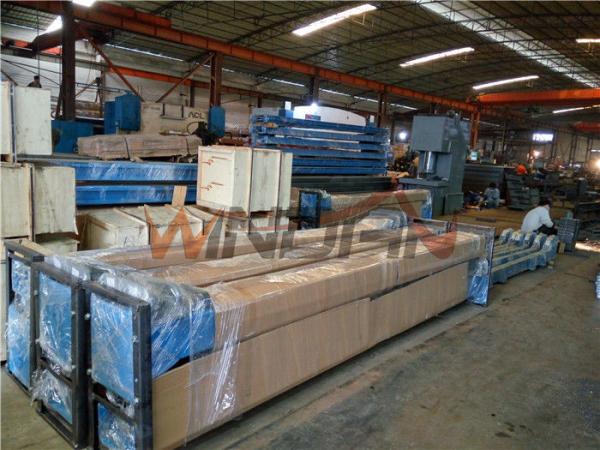

About the package
