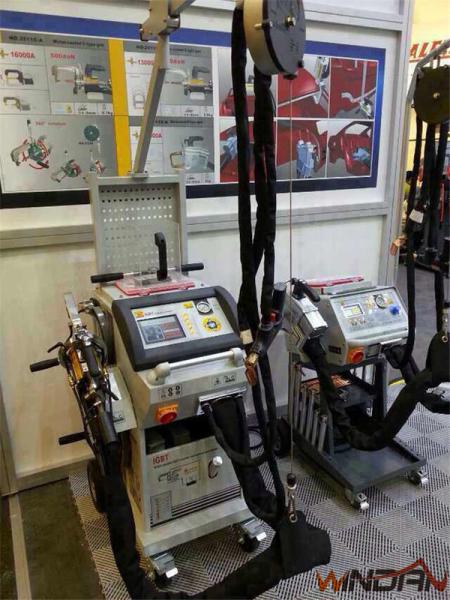

2300mm Cable Length Portable Spot Welder , Aluminum Spot Welder For Shrinking
2300mm Cable Length Portable Spot Welder , Aluminum Spot Welder For Shrinking
Specifications
Brand Name :
WINDAN
Model Number :
WD-FY-9000A
Certification :
CE. ISO
Place of Origin :
GUANGDONG, CHINA
MOQ :
1 set
Payment Terms :
Western Union, L/C, T/T, MoneyGram
Supply Ability :
1000 Set/ Month
Delivery Time :
5days after confirm the order
Packaging Details :
Plywood packing
Input Voltage :
AC 380-440V 50/60Hz
AC 380-440V 50/60Hz :
AC6-10V
Input Current: :
57A
Max Welding Current: :
5800A
Operation Way: :
Electronic Timer Continuously
Movement: :
360orotation
Description

2300mm Cable Length Portable Spot Welder , Aluminum Spot Welder For Shrinking

Description

This machine is equipped with innovative and advanced technology that allows the operating voltage to be compensated automatically. When the welder is connected to an AC380V power supply, the system compensates for variations of the main supply voltage and ensures a constant current level to achieve a high quality performance. The large digital graphic LCD display with blue backlight is easy to learn and read. The uniquely designed gun cable support arm allows flexible movement with a 360° rotation.

Features

  1. The microprocessor control system optimizes the welding parameters. Using advanced digital control technology and user friendly design, all you have to do is select the welding current corresponding to the work piece thickness to achieve the best welding results
  2. High precision time adjustment system
  3. Automatic mains voltage monitoring
  4. Overheating protection
  5. A welding gun test function to evaluate the usage status of the welder
  6. A variety of welding procedures are available such as shrinking, washer, direct-pulling, spot welding, flattening, waveform wire, stud welding, OT washer and triangle washer
  7. Suitable for dent pulling of different kinds of car steels such as conventional steel and stainless steel

Technical data

Input voltage AC 380-440V 50/60Hz
Input power 22KVA
Input current 57A
Max welding current 5800A
Output voltage carbon rod heating AC6-10V
Output voltage washer melting rate: AC1-12V
Output voltage butt-weld: AC1-13V
One-side welding thickness: 0.8+1.2mm
Operation way Electronic timer continuously
Welding time 0-99S
Weld current regulation Stepless
Cable length: 2300+1900mm
Dimensions: 720*600*1550mm
Weight 86kg
