Cruise vessels Customed Marine Mooring Equipment Admiralty Anchor With CCS
Specification

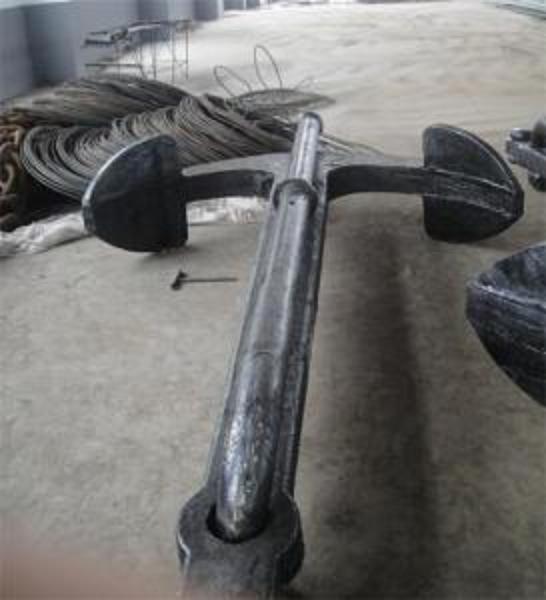

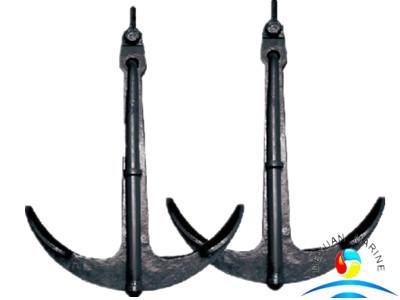

Admiralty anchor
1. Reliable quality
2. Weight: 50kg-10000kg
3. Cordial service and favorable price
4. Cert.: ABS, CCS, GL, LR, BV and DNV.
Data sheet
Admiralty Anchor | |||||
Weight | Size | ||||
H mm | h mm | h1 mm | B mm | C mm | |
50 | 960 | 230 | 42 | 635 | 185 |
75 | 1105 | 266 | 45 | 710 | 210 |
100 | 1215 | 293 | 49 | 780 | 230 |
125 | 1310 | 316 | 52 | 840 | 245 |
150 | 1395 | 336 | 55 | 900 | 265 |
200 | 1535 | 370 | 61 | 990 | 290 |
250 | 1650 | 398 | 65 | 1065 | 310 |
300 | 1755 | 423 | 70 | 1105 | 330 |
400 | 1930 | 465 | 77 | 1240 | 365 |
500 | 2080 | 502 | 84 | 1335 | 390 |
600 | 2210 | 533 | 89 | 1440 | 415 |
700 | 2330 | 560 | 93 | 1500 | 440 |
800 | 2435 | 587 | 97 | 1570 | 460 |
900 | 2530 | 610 | 101 | 1630 | 475 |
1000 | 2620 | 633 | 104 | 1685 | 495 |
1250 | 2825 | 680 | 112 | 1810 | 535 |
1500 | 3000 | 725 | 118 | 1955 | 565 |
2000 | 3300 | 797 | 131 | 2140 | 625 |
2500 | 3550 | 857 | 138 | 2270 | 672 |
3000 | 3780 | 912 | 150 | 2415 | 715 |
3500 | 3980 | 960 | 158 | 2540 | 750 |
4000 | 4160 | 1000 | 155 | 2650 | 785 |
5000 | 4480 | 1100 | 184 | 2830 | 800 |
6000 | 4740 | 1113 | 190 | 3000 | 838 |
7000 | 5025 | 1180 | 200 | 3165 | 960 |
8000 | 5240 | 1280 | 210 | 3300 | 980 |
9000 | 5450 | 1330 | 220 | 3440 | 990 |
10000 | 5680 | 1340 | 230 | 3600 | 1085 |
As a supplier specialized in boat anchors, steel castings and large steel construction , our products have widely used by the ship, metallurgy and mining and other industrial.
One of our most important advantages is: for which we can ensure to provide customized product on the basis of every special need from customers. Meanwhile innovation and creation keeps us at the technical leading position ,makes us following market trend dynamically.
Information of our factory
1. Supply various anchors , castings and other marine equipments
Marine products are anchors, yacht anchors, stainless steel anchors, offshore anchors, marine cultivation anchors, buoys, chocks, rollers, bollards, anchor chains, marine outfittings, marine cables and so on.
2. Advantages of our company
1) We have our own factory,which can ensure the proferential price,the best quality and the fast delivery time.
2) We have the perfect pre-sales, after-sales service.
3) Our factory is located in Shanghai, is convenient to Shanghai International Port.
3. Customerized Orders are welcomed
Our professional technical team are specialized in producing products with your drawings,samples even ideas.
Shipping
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Sea for batch goods, for FCL;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 10-15 days for samples; 25-30 days for batch goods.
Payment Terms
T/T, LC at sight; 30% deposits; 70% balance before delivery.
Pictures
