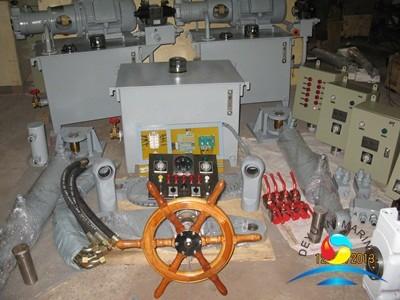

Marine Eletro - Hydraulic Control Boat Steering Gear 15 KN - 250 KN

Main advantages:

1. Electro-hydraulic control.

2. Compact design.

3. Suitable for normal rudder blades.

4. Pumps with variable displacement or constant delivery.

5. One-piece tiller for standard or keyless fit of rudder stock.

6. Pump units mounted on and completely piped with the cylinders.

Specification:

1) Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that

need more steering torque.

(2) Main Tech:

Max working torque: 15 KN.M — 250 KN.M

Max. mech. rudder angle: ± 45 degree

Time of rudder movement: ≤28 S

Rudder stock Diameter: 300mm — 900 mm

Working pressure: 13 Mpa — 20 Mpa

Design pressure: 16 Mpa — 24 Mpa

(3) Scope of delivery:

Marine steering gear with hydraulic cylinders

Electro-Hydraulic power station with oil pumps

Oil tanks

Start motors

On requests, the full range of parts will be delivered.

Quality Control:

Product Range: We specialized in majority of marine equipments& technique solution.

Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

Product Inspection: We support factory inspection and inspection/certification.

Certificates:

- Material certificates by a classification society

- Inspection protocol

- Inspection reports tank testing

- NDT reports

- Official certificates for accessories and other equipment

Advantages of our factory:

1. Control the product quality from the source

2.The main mechanical stress components should pass flaw detection to ensure the quality.

3. Adopt domestic famous brand electric device

4. Fully equipped with accessories

5. Easy installation and operation

6. Provide professional customization service

7. Reasonable price and good after-sale service

8. Manufacture according to client's rquirements
