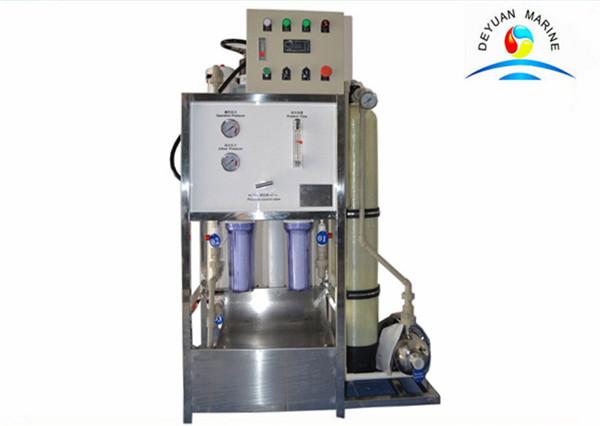

CCS Approved Automatic Marine Fresh Water Generator For Water Purifier
CCS Approved Automatic Marine Fresh Water Generator For Water Purifier
Specifications
Brand Name :
Deyuan Marine
Model Number :
DY-FWG
Certification :
CCS,BV.EC.ABS..
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Packaging Details :
Standard export package
Capacity :
30 persons
Certificate :
CCS
Power supply :
80V/50Hz/3phase
RO membrane :
USA Filmtec DOW
Power :
3KW
Control valve :
Manual or Automatic
Delivery Time :
20days
Description

CCS Approved Automatic Marine Fresh Water Generator For Water Purifier

Specifications:

(1) Usage: It is used for treating teh sewage on board, shipyard or dock (2) international standard: IMO resolution MEPC159(55), Annex IV of (MARPOL 73/78), MEPC. 2(VI)
(3) discharge standard: TSS ≤ 35mg/L, BOD5 ≤ 25mg/L, COD ≤ 125mg/L, Coliform ≤ 100PC/100ml, pH: 6~8.5
(4) Electricity: AC380V. 50Hz, 3Φ AC440V, 60Hz, 3Φ (the electricity can be changed in according to your requirment )
(5) Capacity: From 15 persons to 440 persons
(6) Certificate: EC, CCS

Description:

This mineral water plant includes raw water tank ,raw water pump,silica sand filter,active carbon filter,

ion exchanger,high pressure pump,precision filter, security filter ,reverse osmosis,Ozone generator sterilizer,UV, Mixing tower ,water pump, water storage tank.

water quality

a. The customer's requirement of the output water quality and output water capacity

b. The reliability of the design of the process

1) The system can change the water quality steadily

2) The easy operation and automatic operation

3) Investment and operation cost

4) The physical and chemical cleaning function of the system

5) The output water quality stability

6) The reliable on line monitor function

Parameters:

Model

LG-FSHB1

LG-FSHB2

LG-FSHB5

LG-FSHB10

Productm3/d

1~1.5

2~3

5~6

10~11

Freshwater flows(L/h)

50~60

100~130

200~250

400~450

Desalination rate%

≥98

≥98

≥98

≥98

Salt content of product water(mg/L)

≤1000

≤1000

≤1000

≤1000

Product water pressure(MPa)

4~6.5

4~6.5

4~6.5

4~6.5

Power consumption(kw)

1.1

1.5

2.2

5.5

Boosting inlet pressure(MPa)

0.1~0.3

0.1~0.3

0.1~0.3

0.1~0.3

Temperature of inlet water

5~40

5~40

5~40

5~40

Weight(kg)

110

120

140

200

Dimension

L(mm)

580

580

650

800

W(mm)

440

440

440

600

H(mm)

1600

1600

1600

1700

CCS Approved Automatic Marine Fresh Water Generator For Water Purifier

CCS Approved Automatic Marine Fresh Water Generator For Water Purifier
