Sea Water Cooling Diesel Engine Driven Water Pump With CCS Certificate
Sea Water Cooling Diesel Engine Driven Water Pump With CCS Certificate
Specifications
Brand Name :
Deyuan
Model Number :
DY102-130
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
USD1000 to USD 3000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 units per month
Delivery Time :
7 to 30 days
Packaging Details :
Export packing
Peoduct name :
Diesel engine driven marine water pump
Voltage :
380V
Fuel :
Diesel
Usage :
Water, Sea Water
Structure :
Single-stage Pump
Mode :
Horizontal
Description

Sea Water Cooling Diesel Engine Driven Water Pump With CCS Certificate

Brief description:

The diesel engine driven marine water pump is developed to meet the needs on boat. Driven by diesel engine ,this pump is specially used to wash the deck or for fire fighting under emergency.

The diesel engine driven marine water pump may be provided according to user's requirements. The

pump which used in this series is SWZ series pump ,CWL series pump and CIS series pump. If the rotatingspeed of diesel engine is equal to that of the aforesaid pump , the performance parameters of the pump may be same as those of the pump above.

Cooling mode of diesel engine:

Air cooled , provide with cooling by fan and radiating water tank.

Water cooled , that is cooled though seawater and fresh water heat exchanger by using the water from

the pump itself.

Starup of diesel engine: Electric startup , with battery provided.

Main features:


1. Light weight , small size , mobile and flexible.
2. High quality , low price.

3. Low noisy

4. Delicate struture

5. Short delivery

Specification:

Type (50HZ ,3phase ,380v) main technical parameter Power (kw)
Capacity
(m3 / h)		 Head
(m)		 Speed
(R / min)		 NPSHR
(m)		 Shaft power
(kw)
32 CWL-4 2 20.2 2900 4.2 0.74 1.1
4 21 4.1
4.8 20.9 4.1
32CWL-3 2 31 2900 3 0.99 1.5
4 30 2.5
4.8 29.2 2.8
40CWL-5 4 22.2 2900 4.4 0.85 1.1
8 21 3
9.6 20 3.1
40CWL-4 4 32.3 2900 3.6 1.31 2.2
8 30 2.6
9.6 28.5 2.5
40CWL-3 4 43 2900 3 2.13 3
8 42 2.5
9.6 41 2.9
50CWL-6 6 22.2 2900 2.8 1.16 1.5
12 21 2
14.4 19.8 3

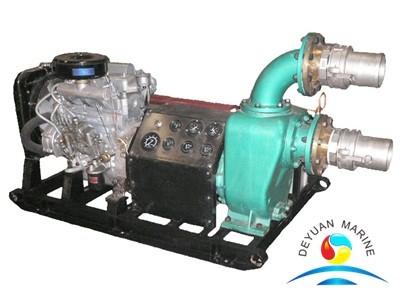

Product's photo:

Sea Water Cooling Diesel Engine Driven Water Pump With CCS Certificate
