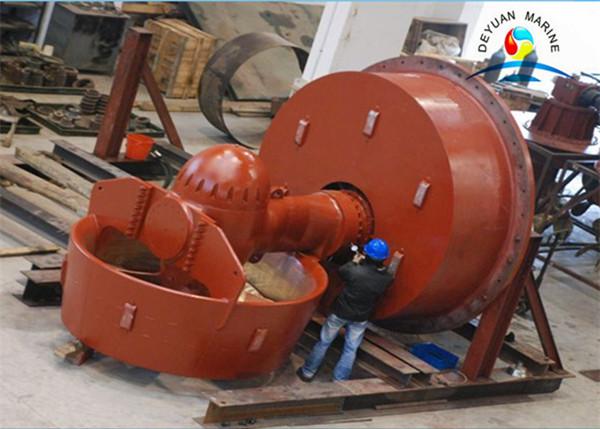

200N Electric Boat Propulsion Systems , Rudder Propeller Marine Propulsion Engine
200N Electric Boat Propulsion Systems , Rudder Propeller Marine Propulsion Engine
Specifications
Brand Name :
Deyuan
Model Number :
DY0201023
Certification :
CCS,ABS,DNV,BV,RINA ..
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
Within 20 to 30 days, According to customers's order
Packaging Details :
Export packing
Type :
Diesel Engine Driven Rudder Propeller
Blade :
3-5pcs
Input power Max. :
45KW
Input torque Max. :
200N.m
Material :
Cu1.Cu3,Copper,bronze
Propeller Dia.Max. :
500mm
Description

200N Electric Boat Propulsion Systems , Rudder Propeller Marine Propulsion Engine

Product Feature:

1. Material:Cu1.Cu3,Copper,bronze.
2. Certificate:ABS,BV,CCS,DNV GL, KR, LR, NK.
3. Blades:3-5pcs.

Specification:

China Deyuan Marine Fitting Co.,ltd is leading supplier of Tunnel thruster,Marine rudder propeller,marine

controllable pitch propeller,6 blades marine propeller,79600DWT Bulk Ship Fixed Pitch propeller,fixed

pitched marine propeller,oil cylinder of adjustable propeller,propeller hub,Pls contact us for more

specific details.

We can design and make propellers for container ships,Cargo ships,tankers, and kinds of boats.

The material can be : Cu1.Cu3,Copper,bronze.

The dimension can be according to your requirements.

We are able to make Max 10m diatermeter propeller.

The blades can be 3.4.5.

The certificate of ABS,BV,CCS,DNV GL, KR, LR, NK and etc are availabe.

Type

Input power Max.(KW)

Input speed

rated.(rpm)

Input torque

max.(N.m)

Propeller Dia.max.

(mm)

Reduction ratio

Weight(kg)

SRP12

45

2300

200

500

1.93

65

SRP45

100

2500

450

800

2.5

190

SRP85

210

2350

850

950

2.68

400

SRP138

260

2000

1380

1100

3.01

1200

SRP180A

340

1800

1800

1150

3.46

1450

SRP180B

280

1500

1800

1150

2.88

1450

SRP180C

180

1000

1800

1150

2.526

1450

SRP226

350

1800

2260

1350

3.34

2000

SRP280

480

1800

2800

1350

3.96

2100

SRP310A

580

1800

3070

1550

3.718

2500

200N Electric Boat Propulsion Systems , Rudder Propeller Marine Propulsion Engine200N Electric Boat Propulsion Systems , Rudder Propeller Marine Propulsion Engine
