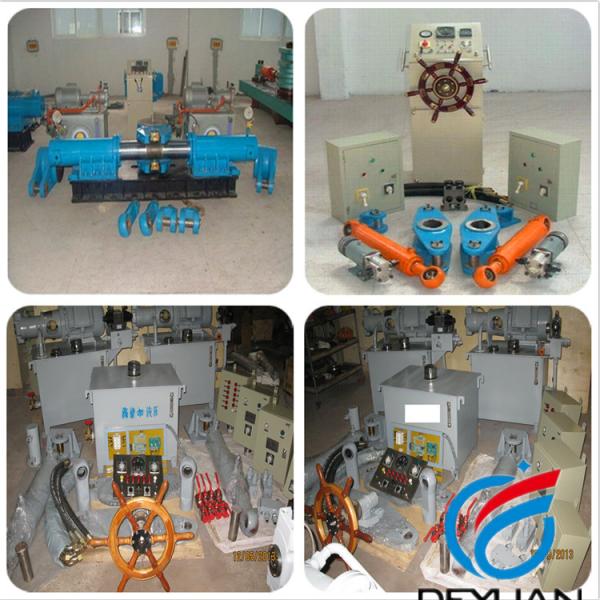

Double Rudder Cargo Ships Marine Steering Gear Engine Deck Machinery
Double Rudder Cargo Ships Marine Steering Gear Engine Deck Machinery
Specifications
Brand Name :
Deyuan
Model Number :
DY2901
Certification :
CCS,ABS,DNV,BV,RINA ..
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
Within 20 to 30 days, According to customers's order
Packaging Details :
Export packing
Type :
Tilt Type Double Rudder Hydraulic Steering Gear
Torque :
50-63KN.m
Max. mech. rudder angle :
± 45 degree
Time of rudder movement :
≤28 S
Working pressure :
13 Mpa — 20 Mpa
Customized :
Yes
Description

Double Rudder Cargo Ships Marine Steering Gear Engine Deck Machinery

Marin advantages:

1. Electro-hydraulic control.

2. Compact design.

3. Suitable for normal rudder blades.

4. Pumps with variable displacement or constant delivery.

5. One-piece tiller for standard or keyless fit of rudder stock.

6. pump units mounted on and completely piped with the cylinders.

Specification:

Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that

need more steering torque.

No.

Torque(kN.m)

A

B

Tiller Dia R

Center height H

Tiller thickness H

rudder stock (d)

1

8-12

970

500

200

110

120

≤130

2

16-25

1269

700

300

110

150

≤160

3

30-40

1170

790

320

115

150

≤160

4

50-63

1420

940

420

145

180

≤180

5

75-125

1700

1080

500

145

220

≤200

6

160-250

2250

1440

650

200

400

≤280

7

300-450

3100

1800

700

260

550

≤340

8

500

3500

1900

720

260

600

≤360

Quality Control:

Product Range: We specialized in majority of marine equipments& technique solution.

Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

Product Inspection: We support factory inspection and inspection/certification.


Certificates:

- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment


Advantages of our factory:

1. Control the product quality from the source
2. The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements

Double Rudder Cargo Ships Marine Steering Gear Engine Deck MachineryDouble Rudder Cargo Ships Marine Steering Gear Engine Deck Machinery
