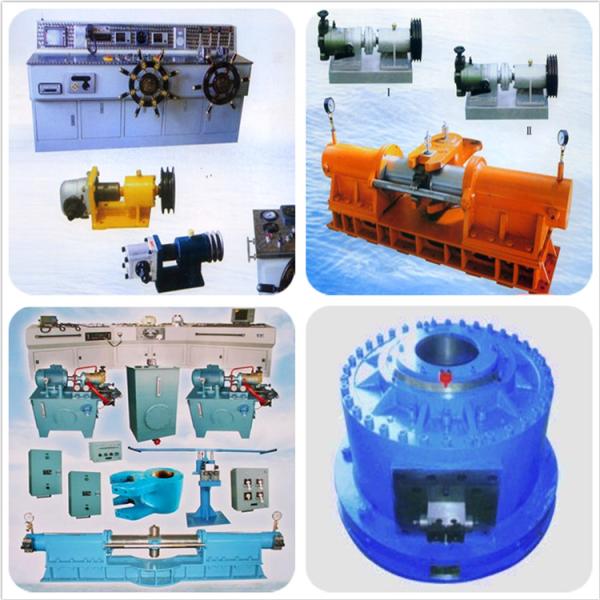

Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS
Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS
Specifications
Brand Name :
Deyuan
Model Number :
DY080108
Certification :
CCS,ABS,DNV,BV,RINA ..
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 set/month
Delivery Time :
Within 20 to 30 days, According to customers's order
Packaging Details :
Export packing
Type :
Rotary Vane
Torque :
25-1000kN.m
Turning time :
<28s
Turning angle :
35deg
Navigation area :
Without limited
Drive :
electro-hydraulic
Description

Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS

Marin advantages:

1. Electro-hydraulic control.

2. Compact design.

3. Suitable for normal rudder blades.

4. Pumps with variable displacement or constant delivery.

5. One-piece tiller for standard or keyless fit of rudder stock.

6. pump units mounted on and completely piped with the cylinders.

Specification:

Suitable for:

Containers, tankers, ferries, General cargo ships, passage ships, Dredgers and any other vessels that need more steering torque.

(kn.m)

Nominal

Torque

Turning

Angle

(°)

(s)

Turning

time

(Mpa)

Max

working

oil

pressure

Gear pump/motor

(mm)

rudder

tiller radius

(Mm)

Diameter

of radius

Type

No

Output

(kw)

10

±35

≤28/20

6.5

CBN-316

2

1.1

240

75-130

16

±35

≤28/20

10.2

CBN-316

2

1.1

240

75-130

20

±35

≤28/20

12

CBN-320

2

2.2

240

75-130

25

±35

≤28/20

10.9

CBN-320

2

2.2

290

75-150

30

±35

≤28/20

9.8

CBN-320

2

3

290

75-150

40

±35

≤28/20

10.3

CBN-420

2

3

360

1160

50

±35

≤28/20

12.5

CBN-420

2

4

480

170

63

±35

≤28/20

8.4

CBN-420

2

4

480

175

More hydraulic steering gear can be offered,pls contact us for more details

Quality Control:

Product Range: We specialized in majority of marine equipments& technique solution.

Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

Product Inspection: We support factory inspection and inspection/certification.


Certificates:

- Material certificates by a classification society
- Inspection protocol
- Inspection reports tank testing
- NDT reports
- Official certificates for accessories and other equipment


Advantages of our factory:

1. Control the product quality from the source
2.The main mechanical stress components should pass flaw detection to ensure the quality.
3. Adopt domestic famous brand electric device
4. Fully equipped with accessories
5. Easy installation and operation
6. Provide professional customization service
7. Reasonable price and good after-sale service
8. Manufacture according to client's rquirements

Marine Rotary Vane Steering Gear System Electro - Hydraulic ABS
