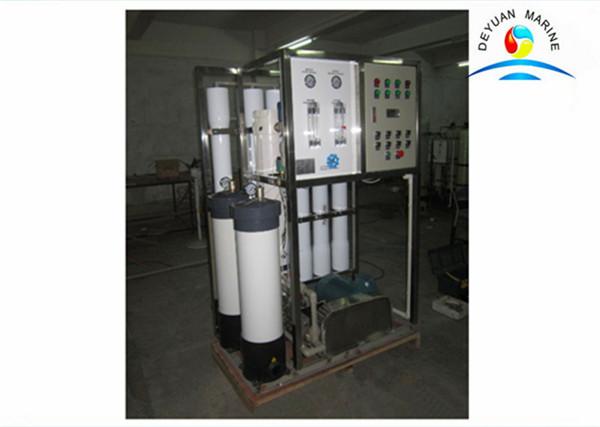

PLC Marine Fresh Water Generator Automatic Control 80V / 50Hz
PLC Marine Fresh Water Generator Automatic Control 80V / 50Hz
Specifications
Brand Name :
Deyuan Marine
Model Number :
DY-FWG
Certification :
CCS,BV.EC.ABS..
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Packaging Details :
Standard export package
Usage :
Water purification
Capacity :
100 tons/day
Power supply :
80V/50Hz/3phase
RO membrane :
USA Filmtec DOW
Width(mm) :
600~1450
Control valve :
Manual or Automatic
Delivery Time :
20days
Description


PLC Marine Fresh Water Generator Automatic Control 80V / 50Hz

Specification:

It adopts computer simulating system design; the complete system performs safely and reliably.

It enables to treat seawater and brackish water meets to the World Health Organization (WHO), drinking water standard.Easy operation, it adopts PLC automatic control, one button can achieve the equipment start and stop. Compact size, light weight, easy installation and commissioning.

It adopts the American DOW membranes and American CAT and Denmark Danfoss high pressure pump. Modular design, especially suitable for the old ship, very easy in position.



Features:

Compact design for installation flexibility

High standard titanium used for evaporator and condenser

Compatible with a variety of heating course

Standardized parts for easy maintenance

It solves the problem of drinking water in area of water shortage.Usually the Fresh Water Generator can be used together with Rehardening water Filter and UV-Sterilizer.


Components

Functions

Raw water tank

Its function is to store raw water,this can be omited if you don't need

Raw water pump

To provide pressure to the raw water into the pretreatment filters

Sand filter

To remove the suspended solids and colloids in the water

Activated carbon filter

To remove the color, free chloride, organic matter, harmful matters etc.

Precision filter

To remove the large particles, bacteria, viruses, in case they into RO membrane, the accuracy is usually 5um

Dosing system

usually it is adopted when the raw water recovery rate is more than 35%

HP pump

To provide high pressure so that the water can be pumped into the RO membrane with enough pressure

RO system

One of the most important part in the plant, remove the salinity of the water with rejection rate high to 99%

Water producing tank

To hold the produced water for drinking

PLC Marine Fresh Water Generator Automatic Control 80V / 50Hz
