High Performance Stainless Steel Boat Water Pump For Diesel Generating
High Performance Stainless Steel Boat Water Pump For Diesel Generating
Specifications
Brand Name :
Deyuan Marine
Model Number :
DY-OS
Certification :
CCS
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Packaging Details :
Standard export package
Throughput capacity :
2-5T/H
Machine Control :
PLC
ery overseas Material :
stainless steel
Processing :
Separater
Type :
Centrifuge
Delivery Time :
According to order volume
Description

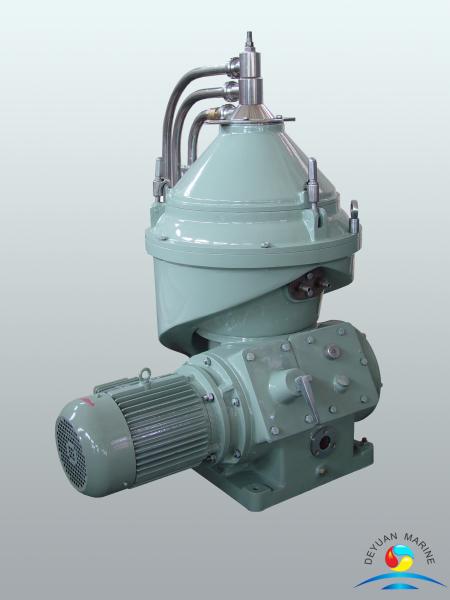

High Performance Stainless Steel Marine Oil Separator For Diesel Generating

Specifications:

Rated Capacity:6000 L/h(No.0light diesel oil)

Drum diameter:430mm

Power:11kW

Drum Speed:6000 r/min

Discharge:automatic discharging ;

Pump pressure:≥0.2MPa

Vibration speed:≤4.5 mm/s

Noise level:≤90 dB(A)

Weight:~1000 kg

Size(L*W*H):1152mmX880mmX1400mm

Separation temperature of heavy fuel oil:95~98°C

Separation conditions and actual productivity of mineral oil

Descriptions of Veg Oil Centrifuge Separator:

The fluid is continuously pumped to a high-speed disc bowl separating centrifuge where subjected to high g-forces. The fluid typically separates into a heavy phase and a light phase. The 2 liquid phases exit the centrifuge through separate liquid discharge connections. Any residual solids are separated and discharged automatically with an automatic self-cleaning style unit.

Application of Veg Oil Centrifuge Separator:

It is mainly used for the liquid liquid separation or liquid liquid solid separation. For examples:

1) Vegetable and animal oil separation (vegetable oil degum, de-soap etc)

2) sea buckthorn oil, essential orange oil, essential rose oil etc extraction and separation

3) Waste water handling, waste oil treatment

4) milk separation, coconut oil separation

Main Parameters:

No.

Model

Capacity

(l/h)

Drum

diameter

(mm)

Drum

speed

Motor

Power

(KW)

Discharge

way

Separator

factor

Weight

(kg)

Size

(mm*mm*mm)

1

KYDR203CD-23

1500

230

6930

2.2

Manual

6170

245

850*625*985

2

KYDH204SD-23

2000

270

7200

4

Automatic

6950

550

865*645*1100

3

KYDH206SD-23

3000

315

6500

5.5

Automatic

7000

650

900*600*1150

4

KYDH207SD-23

4000

385

6500

7.5

Automatic

7500

750

1100*1050*1250

5

KYDH209SD-23

5000

430

6000

11

Automatic

8050

900

1200*950*1400

6

KYDH211SD-23

10000

500

5500

18.5

automatic

8000

1200

1250*1000*1550
