Towing Boat Ramp Marine Winch With 40 Ton Drum Capacity And Warping End
Towing Boat Ramp Marine Winch With 40 Ton Drum Capacity And Warping End
Specifications
Brand Name :
Deyuan
Model Number :
DY019-030
Certification :
CCS,ABS,BV,GL,LR,RINA,NK
Place of Origin :
China
MOQ :
1
Price :
USD 5000 to USD 30000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 units per month
Delivery Time :
30 to 60 days
Packaging Details :
Export packing
Product name :
Marine towing winches
Brake :
Hydraulic Type
Power Source :
Electric/hydraulic
Voltage :
According to customer's demand
Frequency inverter :
Could supply
Rope Guider :
Could supply
Description

Towing Boat Ramp Marine Winch With 40 Ton Drum Capacity And Warping End

Brief description:

This series winches are mainly used in large , extra large concrete , steel structure , and wire rope ,

steel rope for long distance lifting and large stroke towing. Constant speed and smooth lifting are the

features of the wire rope. It is suitable for a variety of bridges , ports , terminals and other road and bridge

construction and large factories and mines , power engineering equipment installation.

Main features:

We can design and manufacture special winches according to customers' specifications.

1. Wide line pull range up to 200 ton

2. Compact design & high reliability

3. Easy to install

4. High starting& working efficiency

5. Reliable operation with little noise

6. Low maintenance relieves your anxiety

Specification:

1. Drive: Electric / hydraulic
2. Configuration: Single or double drum with / without warping end
3. Wire drum: Steel wire rope drum
4. Rated pull (1st layer): 400 to 750KN
5. Brake: Holding 1.5 times the rated pull (static , first layer)
6. Paint: As per your specifications

7. Class: CCS , ABS , LR , BV , GL , NK , DNV , KR , RINA , etc.

Name Rated Pull
KN		 Rated Speed
m / min		 Drum Capacity
mm X m
400kN Hydraulic Winch 400 4 - 30 44 X 480
450kN Hydraulic Winch 450 4 - 30 46 X 480
500kN Hydraulic Winch 500 4 - 30 46 X 500
550kN Hydraulic Winch 550 4 - 30 48 X 500
600kN Hydraulic Winch 600 4 - 30 50 X 500
630kN Hydraulic Winch 630 4 - 30 52 X 500
650kN Hydraulic Winch 650 4 - 30 52 X 500
700kN Hydraulic Winch 700 4 - 30 52 X 500
750kN Hydraulic Winch 750 4 - 30 52 X 500

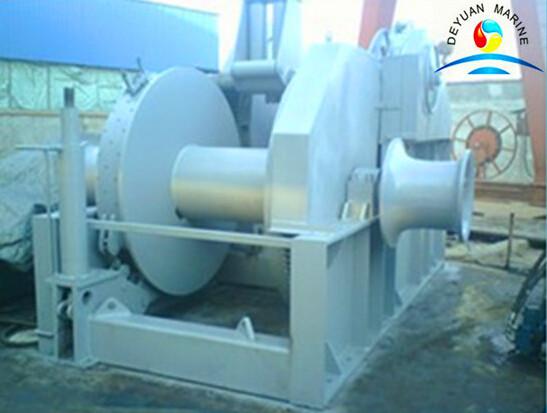

Product's photo:

Towing Boat Ramp Marine Winch With 40 Ton Drum Capacity And Warping End
