5T 50KN Marine Winch Electric Remote Control 500 Meters Drum Capacity
5T 50KN Marine Winch Electric Remote Control 500 Meters Drum Capacity
Specifications
Brand Name :
Deyuan
Model Number :
DY023-030
Certification :
CCS,ABS,BV,GL,LR,RINA,NK
Place of Origin :
China
MOQ :
1
Price :
USD 2000 to USD 10000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 units per month
Delivery Time :
15 days
Packaging Details :
Export packing
Product name :
50KN marine electric winches
Drum capacity :
200 meters
Driven :
Electric
Control type :
Local control& remote control in wheelhouse
Drum Rope :
P.P Rope or wire rope
Speed :
12 m/min
Description

5T 50KN Marine Winch Electric Remote Control 500 Meters Drum Capacity

Brief description:

The mooring winch can make ship run effectively when stopping. It has many functions such as drift ,

support , locate , in loading and unloading work. The mooring winch is widely used in marine field.

The electric mooring winch is used widely in the place with heavy work and big traction. The motor of single

drum which drive the drum by reducer box , the brake is installed between the motor and input shaft. The

winch could be set up to double and multiple drum for adapting the need of hoisting traction and rotary

work. Usually , winch with the rated load less than 10T could be set up to electric mooring winch.

Main features:

1. Reasonable structure , strong bearing capacity.

2. Easy to assembling and do maintenance.

3. It could lift , drag and drop vertically.

4. Rope arranged orderly , safe and reliable on perform .

5. Low maintenance relieves your anxiety.

Specification:

Model Rated pull
KN		 Rated speed
m / min		 Drum capacity
mm × m		 Braking force
KN
 Motor power
KW
 Weight
KG
DY-20 20 12 15×200 60 11 2.5
DY-30 30 12 16×200 90 15 3
DY-50 50 12 22×200 120 22 3.5
DY-80 80 12 28×220 240 37 4
DY-100 100 12 30×220 300 45 4.5
DY-125 125 12 32×220 375 55 5
DY-150 150 12 36×220 450 75 6
DY-200 200 10 39×720 600 75 9
DY-250 250 10 43×350 750 90 12

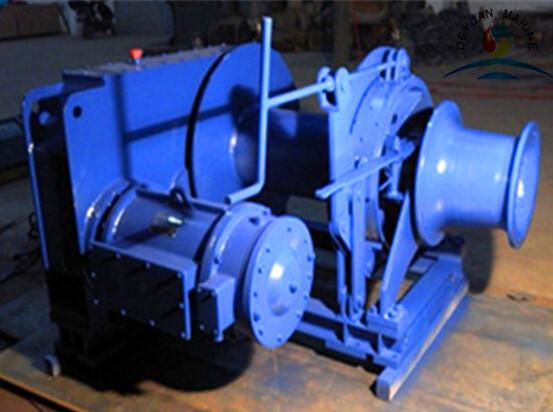

Product's photo:

5T 50KN Marine Winch Electric Remote Control 500 Meters Drum Capacity
