250 KN Mooring Hydraulic Marine Winches Towing Without Warping End
250 KN Mooring Hydraulic Marine Winches Towing Without Warping End
Specifications
Brand Name :
Deyuan
Model Number :
DY 006 - 030
Certification :
CCS,ABS,BV,GL,LR,RINA,NK
Place of Origin :
China
MOQ :
1
Price :
USD 10000 to USD 40000 per unit
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 units per month
Delivery Time :
30 - 60 days
Packaging Details :
Export packing
Application :
cargo boat,cargo ship,bulk carrier,shipyard
Warping end :
Without
Drum load :
250KN
Class approval :
CCS,ABS,BV,GL,LR,RINA,NK
Drum number :
single or double
Frequency inverter :
could supply
Description

250 KN Mooring Hydraulic Marine Winches Towing Without Warping End

Brief description:

We consistently concentrates on marine fittings with good quality, best service and good price,

we can supply series of electric marine mooring winches with Compact structure, easy to operate

and Punctual delivery.

Main features:

1. Drive: Electric / hydraulic

2. Configuration: Single or double drum with / without warping end
3. Wire drum: Steel wire rope drum
4. Rated pull (1st layer): 75 to 250KN

5. Brake: Holding 1.5 times the rated pull (static, first layer)
6. Paint: As per your specifications

Specification:

Name

Rated Pull

(kN)

Rated Speed

(m/min)

Drum Capacity

(m)

Ele-Motor Power
(kw)

Hydr-Motor Power

(kW)
75kN Electric(Hydraulic)
Mooring Winch 		75 15 Ø26×200 30/30/22 45
80kN Electric(Hydraulic)
Mooring Winch 		80 15 Ø26×200 30/30/22 45
100kN Electric(Hydraulic)
Mooring Winch 		100 15 Ø30×200 45/45/30 45
125kN Electric(Hydraulic)
Mooring Winch 		125 15 Ø30×200 45/45/30 75
160kN Electric(Hydraulic)
Mooring Winch 		160 15 Ø32×250 60/60/45 75
200kN Electric(Hydraulic)
Mooring Winch 		200 9.6 Ø41×250 60/60/45 75
250kN Electric(Hydraulic)
Mooring Winch 		250 9.6 Ø44.5×250 60/60/45 90

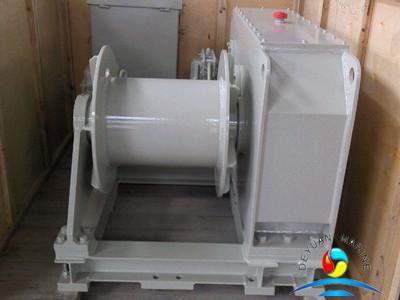

Product photo:

250 KN Mooring Hydraulic Marine Winches Towing Without Warping End
