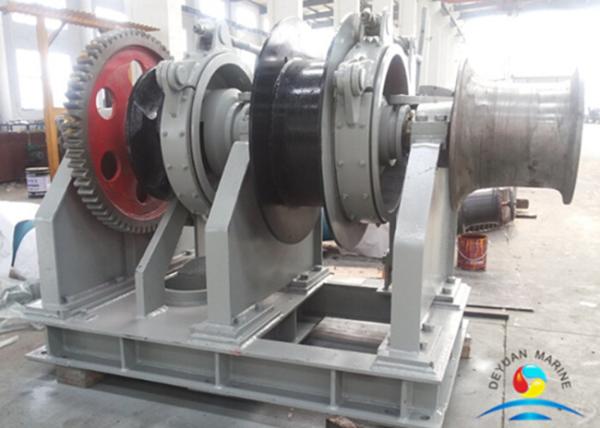

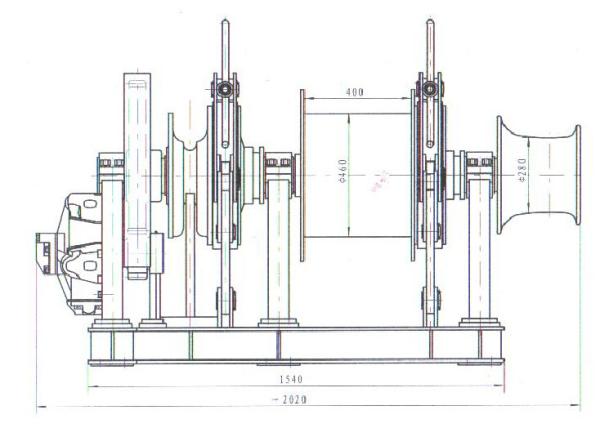

φ28 Hydraulic Drive Combined Anchor Windlass with Winch

Product Feature:

1. Windlass

1.1 (AM2) Anchor chain diameter(AM2) : Φ28mm
1.2 Anchoring speed: ≥10m/min
1.3 Working load: 33.3kN
1.4 Overload pull: 50kN
1.5 Withstand load: 202kN
1.6 Anchoring depth: ≤82.5m

2. Winch

2.1 Working load: 25kN
Rope speed: ≥12m/min
Withstand load: 75kN
Rope diameter: φ19mm (Wire rope)
Drum rope capacity: 70m

2.3 Working load of warping end: 25kN
2.4 Hyd. motor:XHM11-1200-B
Total displacement:1247mL/rev
Rated torque::3740/4675Nm

Working pressure : continuous/ peak =20/25MPa
Speed:0-280r/min

2.5 Working pressure:11MPa
2.6 Working flow:49L/min
2.7 Relief vale set pressure:17MPa
2.8 Hydraulic pump ::63SCY14-IB
2.9 E - motor:Y160L-4-H
Speed: 1460r/min
Power: 15kW
Source : 380V/50Hz

Detail Specification:

This Hydraulic combined windlass is stalled on the ship deck for weighing anchor,dropping anchor and mooring.

Quality Control

Product Range: We specialized in majority of marine equipments& technique solution.

Product Design: With strong engineer team, for all marine products, we support design, manufacture, install etc, according to your requirements. All products strictly conform to your confirmation.

Product Process: Most of products are finished in our manufacture bases, thus quality and delivery time could keep best and , also avoid some details mistake

Product Inspection: We support factory inspection and inspection/certification.

Certificates:

- Material certificates by a classification society

- Inspection protocol

- Inspection reports tank testing

- NDT reports

- Official certificates for accessories and other equipment

Advantages of our factory:

1. Control the product quality from the source

2. The main mechanical stress components should pass flaw detection to ensure the quality.

3. Adopt domestic famous brand electric device

4. Fully equipped with accessories

5. Easy installation and operation

6. Provide professional customization service

7. Reasonable price and good after-sale service
