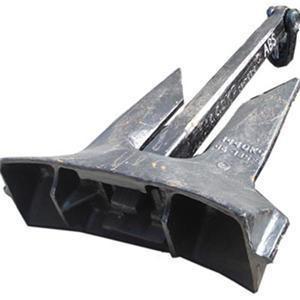

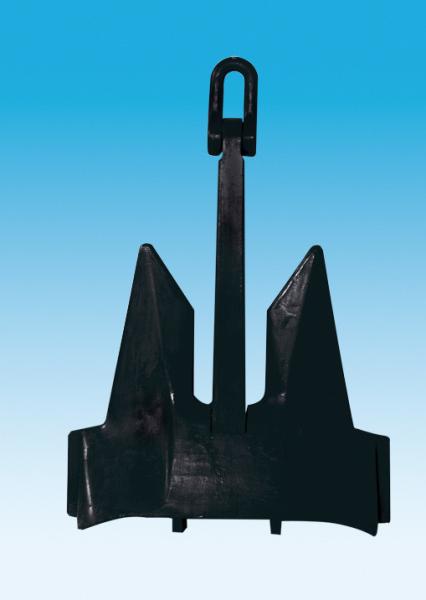

AC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless Anchors
AC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless Anchors
AC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless Anchors
AC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless Anchors
Specifications
Brand Name :
Deyuan Marine
Model Number :
AC-14
Certification :
CCS,BV.EC.ABS..
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Delivery Time :
20days
Packaging Details :
Standard export package
Anchor type :
AC-14
Material :
High Tensile Casting Steel (as per client's request)
Weight (Kg) :
56kg-100000kg
Technology :
Casted/Welded
Finish :
Black Bitumen Paint, HDG
Feature :
Wear-Resistant
Description

AC-14 High Holding Power Anchor Marine Mooring Equipment Ship HDG Stockless Anchors

China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine mooring equipment, such as marine anchor, anchor chain, chain stopper, mooring rope, mooring reel, marine bollard, marine chock, roller fairleads, chain cable clenches etc, pls contact us for more details.

AC-14 Anchor features

1. Certificate: ABS, LR, CCS, BV, DNV, NK, KR, GL
2. Sizes: 56kgs-100000kgs
3. Nude package
4. Black tempered or Blue tempered

Weight(kg)

A B C D E F
56 612 555 170 376 113 298
100 745 675 200 458 135 364
135 745 675 205 458 135 364
180 909 822 252 558 166 442
225 1010 915 277 623 185 495
250 1010 915 280 623 185 495
270 1040 940 288 638 190 508
300 1075 975 298 660 200 525
315 1075 975 300 660 200 525
340 1120 1015 310 690 205 548
360 1120 1015 313 690 205 548
428 1213 1098 336 745 222 590
495 1255 1135 348 770 230 610
590 1350 1220 375 829 246 658
675 1412 1278 390 868 257 690
765 1470 1335 408 906 269 718
910 1560 1410 430 957 284 760
970 1592 1445 440 978 292 775
1080 1650 1495 455 1014 302 805
1200 1710 1545 470 1050 315 835
1305 1760 1595 485 1082 323 858
1361 1782 1615 495 1096 326 870
1440 1818 1645 505 1118 332 885
1575 1875 1695 518 1152 343 915
1710 1925 1745 532 1184 352 940
1845 1975 1785 546 1215 362 965
1980 2020 1830 560 1242 370 985
2100 2065 1865 570 1268 377 1005
2295 2130 1920 588 1310 385 1035
2475 2175 1970 602 1340 395 1062
2655 2225 2018 615 1368 408 1085
2794 2265 2055 625 1393 415 1105
3040 2320 2100 640 1424 426 1130
3550 2455 2225 680 1508 450 1198
3670 2480 2248 688 1525 455 1210
3940 2540 2300 705 1562 465 1240
4500 2655 2405 735 1632 485 1295
4840 2720 2465 755 1670 500 1330
5175 2785 2520 770 1710 510 1358
5610 2858 2590 790 1758 523 1396
6000 2922 2646 810 1796 535 1426
6450 2995 2712 830 1840 548 1462
6900 3062 2775 848 1884 560 1496
7350 3126 2832 866 1923 572 1526
7800 3190 2890 884 1962 584 1558
8300 3256 2950 902 2002 596 1590
8700 3308 2996 916 2034 605 1614
9300 3382 3064 936 2080 619 1652
9675 3425 3104 948 2108 627 1674
9900 3452 3128 956 2124 632 1686
10500 3523 3192 976 2166 645 1720
11100 3589 3252 994 2207 657 1752
11700 3650 3308 1010 2245 668 1782
12300 3712 3364 1028 2283 680 1812
12900 3772 3418 1044 2320 690 1842
13500 3830 3470 1060 2355 700 1870
14100 3885 3520 1076 2389 710 1896
14700 3940 3570 1090 2423 721 1924
15400 4002 3626 1108 2461 732 1954
16100 4062 3680 1125 2498 744 1982
16900 4128 3740 1144 2538 755 2016
17800 4200 3806 1162 2583 769 2050
18800 4277 3875 1185 2630 783 2088
20000 4366 3956 1210 2685 800 213

1. Investment casting sand casting/ lost wax casting/precision casting/gravity casting/stainless steel casting/carbon steel casting/ die casting/cookware handle casting/pan handle casting/home hardware casting;
2. Materials: grey iron ,ductile iron , Carbon steel, stainless steel, alloy steel and duplex steel, wcc, wcb, lcc, color metal etc;
3. Surface treatment: Heat treatment, machining, polishing, anodizing, hard anodizing, galvanized, enp, chrome plating, powder coating and painting;
4. Software for specification drawings: Pdf, auto CAD, solid work, proe;
5. Main production equipments: Wax injection, CNC-machine, heat treatment furnace;
6. Quality assurance in accordance with ISO9001: 2008, strict material inspection and exact dimension control, 100% quality control.
7. OEM order is welcome;
8. The parts can be made completely based on your specifications such as drawing, design, sample etc.


Our factory is well-equipped with state-of-the-art testing facilities, including:

Quantity Equipment name
1 Spectroanalysis instrument
2 Universal material tester
2 Impact testing machine
3 Low-temperature impact test box
2 Impact test bar gap manually broaching machine
2 Projector
4 Magnetic defect detector
several Ultrasonic fault detector


AC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless AnchorsAC-14 High Holding Power Ship Anchor Boat Mooring Systems HDG Stockless Anchors

We look forward to any of your inquiries for whatever products you need.
