Specifications
Brand Name :
Deyuan Marine
Model Number :
SM
Certification :
CCS,BV.EC.ABS..
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Delivery Time :
20days
Packaging Details :
Standard export package
Name :
Spek Anchor
Sizes :
80-20000KG
Color :
Black tempered
Material :
Black painted, Hot dip galvanized, Stainless Steel
Lifetime :
15 years
Application :
Cruise vessels, container shippers
Description

DNV Marine Mooring Equipment 80 - 20000KG For Container Shippers

Specification

1. Model: Type M spek anchor.

2. Certificates:ABS, CCS, GL, LR, BV and DNV.

3. Weight:2460-11100KG.

4. Material: Black painted, Hot dip galvanized, Stainless Steel.

Data sheet

Nominal Weight
(KG)
A B B1 C C1 H
80 611 339 468 336 108 222
105 669 371 512 368 120 242
135 669 371 512 368 149 254
180 800 455 613 440 142 290
240 800 455 613 440 182 304
300 949 527 727 522 168 344
360 949 527 727 522 190 358
420 1062 590 813 584 188 385
480 1062 590 813 584 211 395
570 1175 653 900 647 208 428
660 1175 653 900 647 236 438
780 1305 725 1000 718 231 473
900 1305 725 1000 718 264 485
1020 1428 793 1093 785 252 518
1140 1428 793 1093 785 277 530
1290 1544 858 1182 850 273 561
1440 1544 858 1182 850 299 573
1590 1655 920 1268 911 293 601
1740 1655 920 1268 911 315 611
1920 1761 980 1350 970 312 640
2100 1761 980 1350 970 337 650
2280 1866 1038 1430 1027 331 678
2460 1866 1038 1430 1027 355 688
2640 1959 1090 1500 1079 347 712
...... ...... ...... ...... ...... ...... ......
...... ...... ...... ...... ...... ...... ......
20000 3905 2170 2990 2148 652 1416


As a supplier specialized in boat anchors, steel castings and large steel construction , our products have widely used by the ship, metallurgy and mining and other industrial.

One of our most important advantages is: for which we can ensure to provide customized product on the basis of every special need from customers. Meanwhile innovation and creation keeps us at the technical leading position ,

makes us following market trend dynamically.

Information of our factory


1. Supply various anchors , castings and other marine equipments
Marine products are anchors, yacht anchors, stainless steel anchors, offshore anchors, marine cultivation anchors, buoys, chocks, rollers, bollards, anchor chains, marine outfittings, marine cables and so on.
2. Advantages of our company
1) We have our own factory,which can ensure the proferential price,the best quality and the fast delivery time.
2) We have the perfect pre-sales, after-sales service.
3) Our factory is located in Shanghai, is convenient to Shanghai International Port.
3. Customerized Orders are welcomed
Our professional technical team are specialized in producing products with your drawings,samples even ideas.

Shipping

1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;

2. By Sea for batch goods, for FCL;

3. Customers specifying freight forwarders or negotiable shipping methods;

4. Delivery Time: 10-15 days for samples; 25-30 days for batch goods.


Payment Terms

T/T, LC at sight; 30% deposits; 70% balance before delivery.

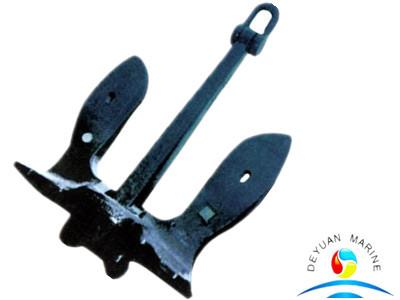

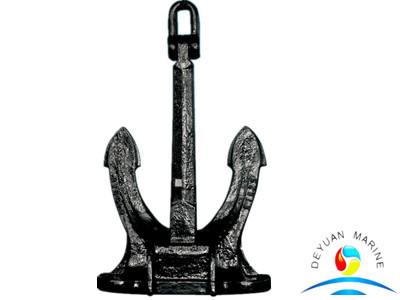

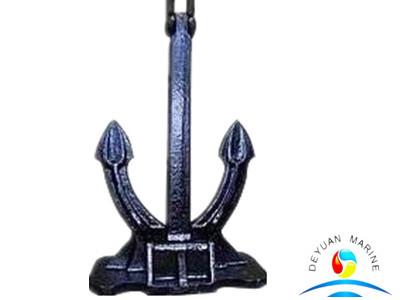

Pictures

DNV Marine Mooring Equipment 80 - 20000KG For Container ShippersDNV Marine Mooring Equipment 80 - 20000KG For Container Shippers
