Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard
Specifications
Brand Name :
Deyuan Marine
Model Number :
REEL
Certification :
CCS,BV.EC.ABS..
Place of Origin :
China
MOQ :
1
Price :
According to order volume
Payment Terms :
T/T.L/C.D/A.D/P.Western Union ,Money Gram
Supply Ability :
1-5000
Delivery Time :
20days
Packaging Details :
Standard export package
Part :
Mooring Reel
Diameter of Fiber Wire :
28mm to 72mm
Specification :
CB/T 498-95
Package :
Standard Export Packing or as Required
IACS class :
Can offer different kinds of class certificate
Customize :
Available
Description

Ship's Mooring Synthetic Fiber Rope Reel CB/T 498-95 Standard with class approval certificate

1. Applicable to Fiber Wires ;
2. Diameters of Fiber Wire: 28mm~72mm ;
3. Fiber Wire Length: 140mm~220mm ;
4. Screw Diameter: M16 ;
5. Screw Quantity: 8, 10, 12 ;
6. Material: Steel ;
7. Smooth and Clean Surface without Defects such as Burrs, Cracks, Sharp Corners etc.
8. Lubricated, Anti-corrosive Painting
9. Certificate: ABS, CCS, BV, DNV, NK etc.
10. Meet Customer's Special Requirements

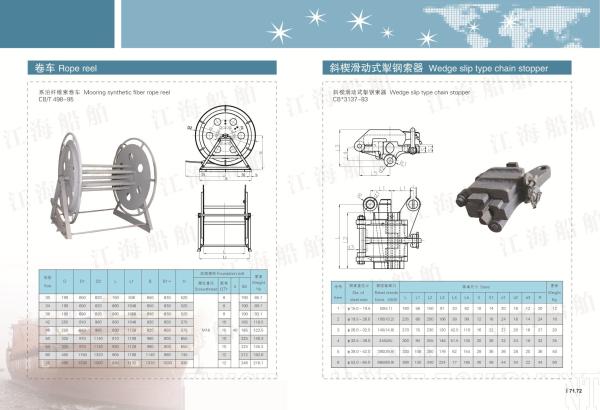

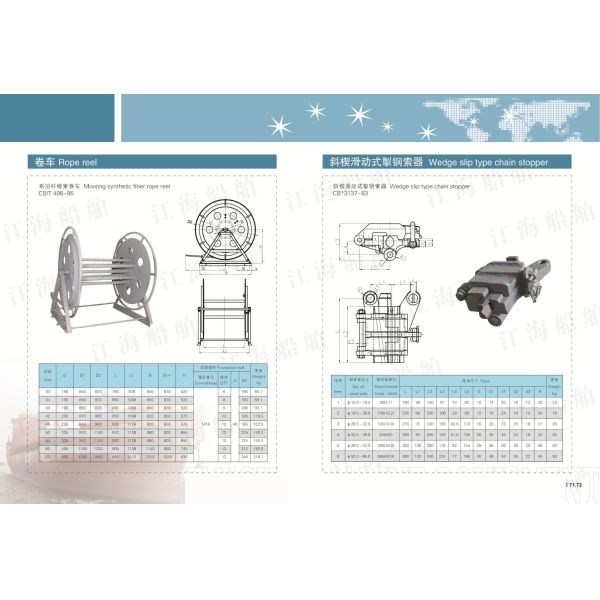

Data Sheet and Picture

Synthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 StandardSynthetic Fiber Rope Reel Marine Mooring Equipment with CB/T 498-95 Standard

Steel Rope Cable Reel for Ship

China Deyuan Marine Fitting Co.,ltd are leading supplier of marine mooring equipment.Such as marine chock,marine fairleader,marine roller fairlead,marine mooring rope reel.Pls contact us for more details.


1. Steel wire rope dia.: 20mm---72mm
2. Steel wire rope length: 140-220m
3. Material: Marine grade cast steel
4. Use for the storage of ship fiber rope on all kinds of ships.


Name
Type
No
Wire rope(m)
Wire long(m)

Type A steel
(w-nohandle)
AW,A
AW13
A13
13.0
120

AW17
A17
17
190

AW21
A20.5
20.5
180

AW26
A26.0
26.0
190

AW32
A32
32
190

Type B
Steel wire reel
B
B39
39.0
210

B48
47.5
230

Type C
Steel wire reel
C
C56
56
300
