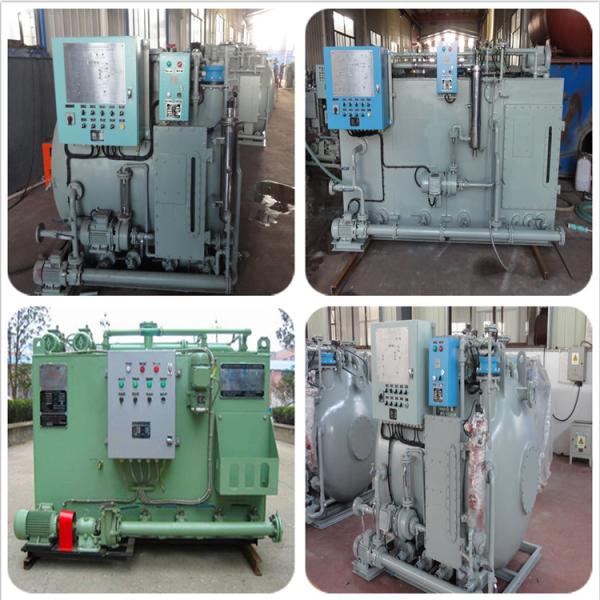

Explosion Proof Marine Auxiliary Machinery Marine Sewage Treatment Unit
Explosion Proof Marine Auxiliary Machinery Marine Sewage Treatment Unit
Specifications
Brand Name :
Deyuan
Model Number :
DY-SWT
Certification :
ABS CCS EC BV ETC
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-10000 Per Set
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Packaging Details :
Standard Export Packaging
Material :
Carbon steel/Stainless steel
Application :
Marine
Operate :
Automatic/Manual
Standard :
IMO MEPC159(55),MARPOL 73/78
Usage :
Ships &vessels.
Description

Explosion Proof Marine Auxiliary Machinery Marine Sewage Treatment Unit

Overview:

Marine Sewage Treatment Plant belongs to the key devices for prevention of pollution form ships in

seas and oceans according to the revised Annex IV of the International Convention of the Prevention of Pollution (MARPOL 73/78).This device is applicable to treat the sewage, which means human body wastes and the wastes from the toilets on vessels and which is also called “black water”, to meet the effluent standards of IMO. MEPC.159(55), and discharge the effluent overboard . This device is according to the resolution MEPC.159(55) enacted on 13 October 2006.The convention (MARPOL 73/78) provides that all STPs installed on board on or after 1 January 2010 should meet the resolution MEPC159(55).

Features:

1. The device is adopting the principle of "air-lifting" to transfer the sludge from sediment tank and membrane tank to aeration tank,meantimes the "pump stops and air never stopped",so as the scale on the membrane surface comes dowm.Due to back flushing and clean the membrane "online" usd technol;oge patent.

2. "Online" cleaning technology,making the dirt on membrane off automatically,recover membrane flux.It can be solved the problem of openning the cleaning or replacement of the membrane difficultly caused by the small space in cabin.

3. The effluent after further treatment can be reached at the requirment of "water recovery".

Description:

1. Ship / Domestic Sewage Water Treatment Plant

2. CCS & EC(GL) certificate

3. 1 year warranty

4. World wide after-sales service

Parameters:

Model

15

20

25

30

40

50

60

80

100

150

200

250

Load

Average load

L/d

1190

1540

1890

2310

3080

3780

4480

6020

7700

11200

14700

18200

Peak load

L/h

149

193

237

289

385

473

560

753

963

1400

1838

2275

Organic load

kgBOD5/d

0.595

0.77

0.945

1.155

1.54

1.89

2.24

3.01

3.85

5.6

7.35

9.10

Rated capacity(P)

15

20

25

30

40

50

60

80

100

150

200

250

Max capacity(P)

17

22

27

33

44

54

64

86

110

160

210

260

Electricity

AC380V, 50HZ, 3φ/AC 440, 60Hz, 3φ

Power(KW)

1.5

1.5

1.5

1.5

1.5

2.0

2.0

2.5

2.5

3.0

Explosion Proof Marine Auxiliary Machinery Marine Sewage Treatment Unit
