Marine 15 PPM Bilge Separator With Led Digital Tube DNV Approved
Marine 15 PPM Bilge Separator With Led Digital Tube DNV Approved
Specifications
Brand Name :
Deyuan
Model Number :
DY-15ppm
Certification :
CCS
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-10000 Per Set
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Packaging Details :
Standard Export Packaging
Usage :
Bilge alarm
Linearity :
better than 2 %
Degree of Protection :
IP 45
Consumption :
10 VA
Sample Water Pressure :
0.01 -6 bar
Power Supply :
220VAC/110VAC 10%
Description

Marine 15 PPM Bilge Separator With Led Digital Tube DNV Approved

Features:

(1)Applying the most advanced multi-band infrared measuring technique and the micro-processing technology, fast response with high-accuracy-measurement;

(2)The overall use of EMI suppression design to overcome the environmental impact on equipment,and improve system stability and equipment reliability;

(3)Real-time display of oil concentration and working state of the system.

(4)Real-time recording of the alarm status and automatically store data,historical data at any time to print;

(5)Measuring room to facilitate maintence and cleaning,simple operation;

(6)With the monitoring of operation condition,automatic control over discharge of sewage to function when equipment in failure,maintence or replacement

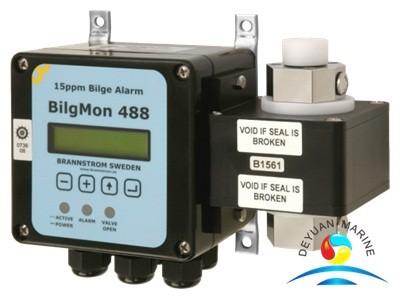

(7)The 15 ppm Bilge Alarm type BilgMon 488 is approved and certified in accordance with the latest IMO resolution MEPC107(49) .

Specifications:

1) Measuring range: 0-30ppm (display range 0-80ppm)
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard)
3) Display type : LED digital tube
4) 15ppm bilge water Alarm Alarm indication: 4 red LED
5) 2-way alarm relay
6) Rated capacity of relay contact 250VAC 3A (non-emotional)
7) 15ppm bilge water Alarm Response time ≤ 5 seconds
8) Output signal 4-20mA

Technique Parameter:

Alarm relay output contact value

5A, 250VAC

Alarm relay output feedback signal test

Two way working status contact testing

Alarm Indication:

Red LED's

Output Signal:

4 - 20 mA, reversible Ri < 500 Ω

Sample Water Pressure:

0.01 -6 bar

Sample Flow:

approx. 0.2 - 4 l/min depend on pressure

Ambient Temperature:

0 to + 55° C

Sample Water Temperature:

+ 1 to + 80° C

Size (over all):

360 mm W x 240 mm H x 105 mm D

Degree of Protection:

IP 45

Weight:

8kg

Pipe Connections:

R 1/4" Female

Marine 15 PPM Bilge Separator With Led Digital Tube DNV Approved
