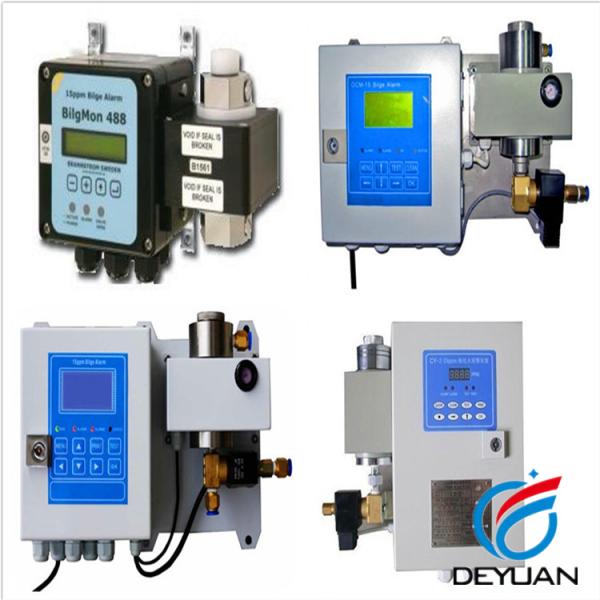

IMO Standard 15ppm Bilge Alarm Marine Auxiliary Machinery with CCS Cert
IMO Standard 15ppm Bilge Alarm Marine Auxiliary Machinery with CCS Cert
Specifications
Brand Name :
Deyuan
Model Number :
DY-15ppm
Certification :
CCS
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-10000 Per Set
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Packaging Details :
Standard Export Packaging
Certificate :
CCS or DNV
Alarm point :
1-15ppm
Display type :
LED digital tube
Degree of Protection :
IP45
Oil in Water Monitor system :
for oily water separator
Power Supply :
220VAC/110VAC 10%
Description

IMO Standard 15ppm Bilge Alarm Marine Auxiliary Machinery with CCS Cert

Features:

1) Measuring range: 0-30ppm (display range 0-80ppm).
2) Measurement precision: (15ppm alarm) ± 5ppm (meet the IMO standard).
3) Display type : LED digital tube.
4) 15ppm bilge water Alarm Alarm indication: 4 red LED.
5) 2-way alarm relay.
6) Rated capacity of relay contact 250VAC 3A (non-emotional).

7)Model:15ppm bilge alarm.

Compact and robust construction:

Low maintenance

Small dimensions

Easy installation

Continuous on-line work

Works adjustment

Easy zero adjustment via push buttons (+-5ppm)

Technique Parameter:

Range:

0 – 30 mg/l can exceed to 50mg/l

Accuracy

Better than 5mg/L

Linearity

better than 2 %

Display

LCD display

Power Supply:

220VAC/110VAC ± 10%

Consumption:

10 VA

Alarm Points:

1-15ppm

Alarm Points works set:

15ppm

Alarm 1 delay

0-10 second.

Alarm 2 delay

0-10 second

Alarm output

Two way relays output

Alarm relay output contact value

5A, 250VAC

Alarm relay output feedback signal test

Two way working status contact testing

Alarm Indication:

Red LED's

Output Signal:

4 - 20 mA, reversible Ri < 500 ohm

Sample Water Pressure:

0.01 -6 bar

Sample Flow:

approx. 0.2 - 4 l/min depend on pressure

Ambient Temperature:

0 to + 55° C

Sample Water Temperature:

+ 1 to + 80° C

Size (over all):

360 mm W x 240 mm H x 105 mm D

Degree of Protection:

IP 45

Weight:

8kg

Pipe Connections:

R 1/4" Female

Standard

IMO.Res.MEPC.107(49)

IMO Standard 15ppm Bilge Alarm Marine Auxiliary Machinery with CCS Cert
