High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa
Specifications
Brand Name :
DEYUAN
Model Number :
DY/CZ
Certification :
CCS, RINA, KR, BV etc.
Place of Origin :
China
MOQ :
1 set
Price :
USD1500-3000 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A
Supply Ability :
100 sets per month
Delivery Time :
15 work days
Packaging Details :
Crate box
Name :
High Pressure Air Compressors
Capacity :
0.27~0.43M3/min.
Motor power :
7.5-11KW
Material :
Stainless steel/cast steel/cast iron
Rated pressure :
5.9~19.6Mpa.
Color :
As per the customer's request
Weight :
210-350KG
Quality :
High quality with competitive price
Description

High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa


Main application and feature

1. Air cooled marine air compressor
2. Start diesel engines of oceangoing ships
3. Discharge pressure from 1-350bar for option
4. Air cooled
5. Motor power 380V/50HZ or 440V/60HZ or diesel motor
6. we can design different kind air compressor as required


Specification

1. Type: Horizontal high pressure marine air compressor.

2. Capacity: 0.27~0.43M3/min.

3. Rated pressure: 5.9~19.6Mpa.



Description

China Deyuan Marine Fitting Co., Ltd. are leading supplier of marine air compressor supplier. We can offer many types of air compressor such as low pressure air compressor, medium pressure, high pressure air compressor with good quality and competitive price.
We have water-cooled type,air-filled type,diesel driven type, electric driven type, piston type air compressor etc. Pls contact us for more details.

Technical data

Type Displacement Specified
pressure		 Rotating
speed 		Motor power Dimension weight
c(L*W*H)
M3/min Mpa r/min kw hp mm kg
1-0.27/150 0.27 14.7 970 7.5 10 1100*500*950 300
1-0.27/150 1000 7.5 10 555*585*940 210
Cz-0.42/150 0.42 14.7 1460 11 15 1100*500*950 330
CZ-0.42/150 1500 11 15 620*650*1000 270
CZ-0.43/60 0.43 6 1460 11 15 1100*500*950 330
CZ-0.43/60 1500 11 15 620*650*1000 270
CZ-0.41/200 0.41 19.6 1460 11 15 1100*520*950 350


Shipping


1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Sea for batch goods, for FCL;
3. Customers specifying freight forwarders or negotiable shipping methods;
4. Delivery Time: 10-15 days for samples; 25-30 days for batch goods.


Payment Terms

T/T, LC at sight; 30% deposits; 70% balance before delivery.


Pictures

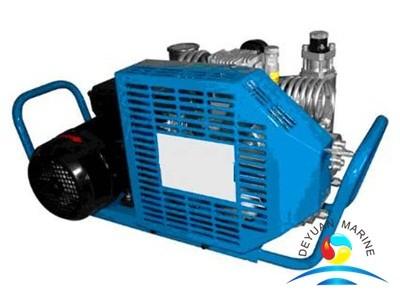

High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa

High Pressure Air Compressors For Marine Auxiliary Machinery With 14.7 Mpa


Contact

Anna Wong
Email: sales11@deyuanmarine.com
Tel: +86-756-6302052
Fax: +86-756-8305812
MP: +86-13798955790
