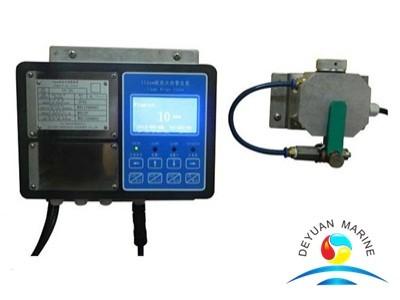

Accuracy 15PPM Oil Content Meter Marine Auxiliary Water Detector Alarm
Accuracy 15PPM Oil Content Meter Marine Auxiliary Water Detector Alarm
Specifications
Brand Name :
Deyuan
Model Number :
DY-15ppm
Certification :
CCS
Place of Origin :
China
MOQ :
1 set
Price :
USD 1000-10000 Per Set
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Packaging Details :
Standard Export Packaging
Usage :
Bilge alarm
Linearity :
better than 2 %
Accuracy :
Better than 5mg/l
Bilge Alarm Point :
15ppm Oil Content Meter
Operation :
LCD display
Power Supply :
220VAC/110VAC 10%
Description

Accuracy 15PPM Oil Content Meter Marine Auxiliary Water Detector Alarm

Description:

Measure range:0-30ppm

Alarm Point:1-15 ppm adjustable

Accuracy: Better than 5mg/l

Power Supply:220VAC/110VAC ± 10%

Display:LCD display

Size (over all):360 mm W x 240 mm H x 105 mm D

Standard:IMO.Res.MEPC.107(49)

Specifications:

The 15PPM Oil Content Meter/Marine 15ppm Bilge Water Alarm device has been designed specifically for use in continuous monitoring of

oil in bilge water, 15 ppm alarm and control of discharge, detection, memory and enquiry of alarm status. It is applicable to detect boiler condensate water. And it applies to oil and chemical industries as well.The bilge water alarm device use the technology of near infrared measurement, which can

display the detected result in real time. The unit is supplied with 2 worksadjusted alarms. The

set point (15ppm factory set) could be adjusted at any moment through the panel. If an alarm set

point is exceed, the alarms are visible at the front panel and the appropriate relays are switched,

that can be achieved the movement control of overrun closedown or the treatment of overrun

recycle, and the memory and enquiry of alarm record. Furthermore, a 4 - 20 mA (equal to 0 – 15ppm) effective signal output is available for driving a recorder or external meter.

Technique Parameter:

Type:

OCM-15

Range:

0 – 30 mg/l can exceed to 50mg/l

Accuracy

Better than 5mg/l

Linearity

better than 2 %

Display

LCD display

Power Supply:

220VAC/110VAC ± 10%

Consumption:

10 VA

Alarm Points:

1-15ppm

Alarm Points works set:

15ppm

Alarm 1 delay

0-10 second.

Alarm 2 delay

0-10 second

Alarm output

Two way relays output

Accuracy 15PPM Oil Content Meter Marine Auxiliary Water Detector Alarm
