Molas B300m Lidar Offshore Wind Rental Measurement Layer 12
Molas B300m Lidar Offshore Wind Rental Measurement Layer 12
Specifications
Brand Name :
MOVELASER
Model Number :
Molas B300
Certification :
WINDGUARD / RISO Dtu / DNV GL / Intertek
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 6W$+ （Price consultation customer service）
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set ，1 month
Delivery Time :
1-2 months
Packaging Details :
Air Box
Measuring Distance :
30-300m
Measurement Layer :
12
Sampling Rate :
1Hz
Wind Speed Accuracy :
0.1m/s
Wind Speed Range :
0~75m/s
Measurement Principle :
Pulsed Laser Coherent Doppler
Description

Offshore Wind Lidar Molas B300M lidar rental Measurement Layer 12

| Product introduction

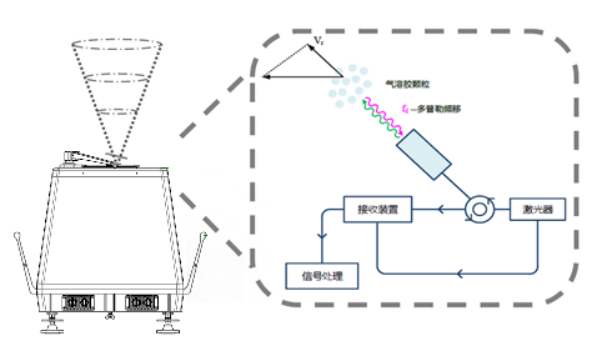

The working principle of wind lidar is shown in the following figure. The signal light generated by the fiber laser is emitted into the air to be measured through an optical antenna, and interacts with the aerosol particles to generate a backscattered signal containing their velocity information. According to the Doppler principle, the Doppler frequency shift fd of the echo signal is directly proportional to the velocity of aerosol particles (i.e. wind speed). Therefore, the backscattered signal received by the optical antenna can be processed by combining with the local oscillator light generated by the fiber laser in the system and digital demodulation to obtain the wind field information of the target to be tested.

| Application scenarios

Early wind resource detection

Offshore construction and operation and maintenance wind power monitoring

Prediction of wind power in offshore wind farms

| Product parameters 参数

Measuring Distance 30-300m
Measurement Layer 12
Sampling Rate 1Hz
Wind Speed Accuracy 0.1m/s
Wind Direction Accuracy 1°
Wind Speed Range 0~75m/s
Wind Direction Range 0~360°
Measurement Principle Pulsed Laser Coherent Doppler

| Product Features

Low cost: Whether it is used with monopile platforms or buoys, the price is much lower than the construction cost
of offshore wind towers
Large range: 40~300m, 12 custom height levels
High precision: full life cycle, accuracy up to 0.1m/s and 1°
Time-saving and efficient: the project construction period is short, saving valuable time and cost
Flexible configuration: flexible wireless connection, enabling remote configuration delivery and data transmission
Data security: data encryption has no risk of leakage
Non-contact measurement: convenient and fast, leading the industry

| Product Image

Molas B300m Lidar Offshore Wind Rental Measurement Layer 12
