Molas 3D Corrosion Class C4 Doppler Wind Lidar 10km Detection Distance
Molas 3D Corrosion Class C4 Doppler Wind Lidar 10km Detection Distance
Specifications
Brand Name :
MOVELASER
Model Number :
Molas 3D
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 13W$+ （Price consultation customer service）
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set ，1 month
Delivery Time :
1-2 months
Packaging Details :
Air Box
Line-of-sight detection distance :
10km (typical case)
Distance resolution :
30m/45m/60m/75m optional
Number of distance layers :
up to 300
Horizontal scan range :
360° × n
Scanning method :
PPI , RHI , DBS , LOS and Program Scan
Real-time data output form :
Profibus DP/Modbus TCP/CAN optional
IP protection class :
Housing IP54, core module IP66
Anticorrosion grade :
C4
Description

Molas 3D , Line-of-sight detection distance 10km , Corrosion class C4

1, Product advantages

① Rich measurement information: 3D wind field refined measurement, up to 300 custom distance layers
② Large range: 10km typical detection distance
③ High precision: pointing accuracy 0.1°, visual direction wind speed accuracy 0.1m/s

2, Working principle

Molas 3D scanning wind lidar is a lidar system based on the above principles, and additionally equipped with a scanner that can freely adjust the beam direction, which can perform a specific scanning method for a specific airspace range, and can provide all-weather, all-round, real-time High-precision wind field information can be used for urban meteorological observation, wind power resource assessment, local wind shear early warning, high-altitude turbulence, wind tunnel aerodynamic research, complex terrain and offshore wind power resource assessment and other application scenarios.

3, Performance parameters

Basic parameters
Line-of-sight detection distance 10km (typical case)
Distance resolution 30m/45m/60m/75m optional
Accumulation time 0.5s/1s/2s/4s/8s optional
Radial wind speed measurement range -75~+75 m/s
Radial wind speed measurement accuracy 0.1m/s
Number of distance layers up to 300
Horizontal scan range 360° × n
Vertical scan range -10°~190°
Pointing accuracy 0.1°
Scanning method PPI , RHI , DBS , LOS and Program Scan
Real-time data output form Profibus DP/Modbus TCP/CAN optional
Telecommunication 1000BASE-TX or 4G remote access
Environmental parameters
Operating temperature and humidity -25~+50℃ (extendable to -40~+60℃),
5%~100% RH
IP protection class Housing IP54, core module IP66
Anticorrosion grade C4
Survival wind speed 70m/s (fixed by foot or by wire rope)
Working altitude ≤3500m
Other parameters
Running power consumption ≤1kW
Powered by 110VAC±20% or 220VAC±20%,
50Hz±10%
Size 800mm*650mm*1130mm
Weight ≤150kg
Accessibility
GNSS functionality Support GPS/Beidou
Time service NTP timing or GPS/Beidou timing

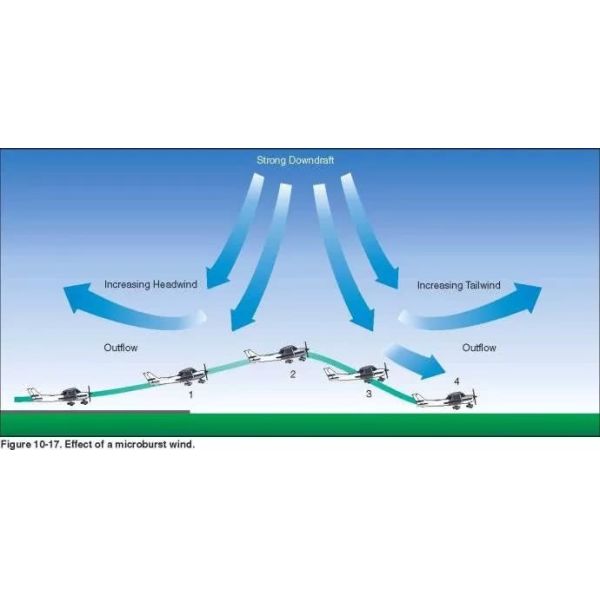

4, Influence of wind shear (microburst) on aircraft

Molas 3D Corrosion Class C4 Doppler Wind Lidar 10km Detection Distance
