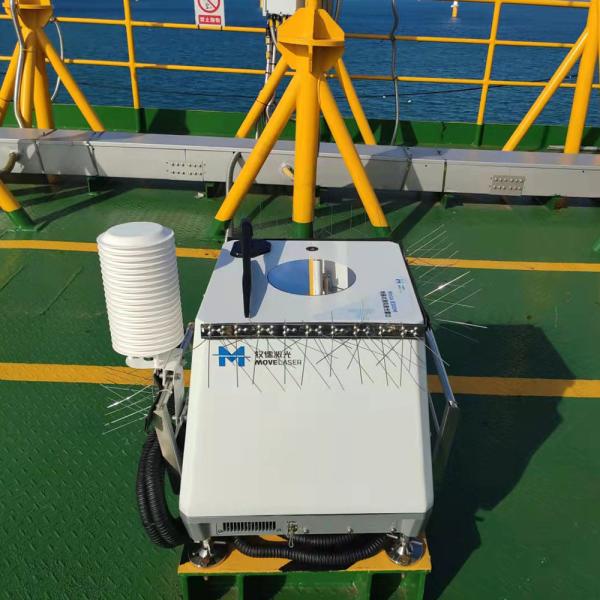

ASCII Data Format 100V To 240V Floating Lidar Buoy Wind Lidar System
ASCII Data Format 100V To 240V Floating Lidar Buoy Wind Lidar System
Specifications
Brand Name :
MOVELASER
Model Number :
Molas B300M
Place of Origin :
China
MOQ :
1 set
Price :
Dollar 7W$+ （Price consultation customer service）
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
200 set ，1 month
Delivery Time :
1-2 months
Packaging Details :
Air Box
Protection class :
IP67 (complete machine)
Measuring wind speed range :
0~75m/s
Size :
682mm x 520mm x 641mm
Powered by :
24V DC / 100~240V
Power :
70W
Weight :
<75kg
Description

Offshore buoy lidar Wind Lidar System

1,Product introduction

High precision: large buoy combined with advanced attitude algorithm
Large range: 10-300m, 12 levels
Sufficient power supply: can run continuously for up to 2-3 months in no light conditions

2,Product parameters

General parameters
Powered by 24V DC / 100~240V
Power 70W
Size 682mm x 520mm x 641mm
Weight <75kg
Range of working temperature -40℃ ~ 50℃(with over temperature protection)
Operating humidity range 0% to 100%
Protection class IP67 (complete machine)
Eye safety Class 1M (EN60825-1)

Measurement parameters
Measuring distance 30~300m
Measurement layer 12
Sampling rate 1Hz
Wind speed measurement accuracy 0.1m/s
Wind direction measurement accuracy 1°
Wind speed measurement range 0~75m/s
Wind direction measurement range 0~360°
Sweep cone angle 28°

Data parameter
Data output Horizontal wind speed, vertical wind speed, wind direction
Timestamp, GPS, temperature, humidity and pressure, statistics
Data Format ASCII
Communication Ethernet (100BASE-TX)
3G/4G
WiFi, satellite communication (optional)

3,Application scenarios

① Early detection of wind resources

ASCII Data Format 100V To 240V Floating Lidar Buoy Wind Lidar System

② Offshore construction and operation and maintenance wind power monitoring

ASCII Data Format 100V To 240V Floating Lidar Buoy Wind Lidar System

③ Prediction of wind power in offshore wind farms

ASCII Data Format 100V To 240V Floating Lidar Buoy Wind Lidar System
