Hign advance CNC window corner making, corner cleaning machine for upvc window and door, corner cut machine
Hign advance CNC window corner making, corner cleaning machine for upvc window and door, corner cut machine
Hign advance CNC window corner making, corner cleaning machine for upvc window and door, corner cut machine
Hign advance CNC window corner making, corner cleaning machine for upvc window and door, corner cut machine
Specifications
Brand Name :
GMETECH
Model Number :
GTC-120A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
8000
Payment Terms :
T/T
Delivery Time :
15
Production Capacity :
100
Application :
door and window making machine
profile width :
120MM
Power(W) :
2.8KW
Description

Hign advance CNC window corner making, corner cleaning machine for upvc window and door, corner cut machine

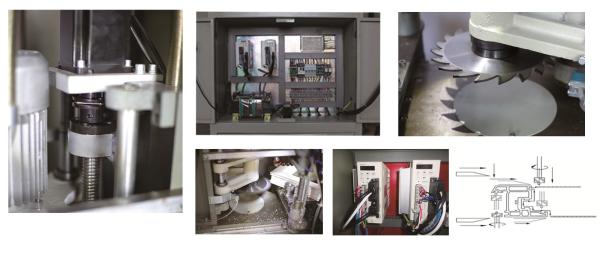

  1. Most stable welcomed mature CNC corner cleaning machine.
  2. Totally 5 cutters will be automatically cleaning surface, vertical and inside rubber.Gasket groove. No need tool change.
  3. Advanced IPC controlled full machinery automatically precise running.
  4. Memory for 60 profile data.
  5. Two axis moved by call screw shaft.
  6. Within 25 seconds finish one corner complete cleaning.
  7. Can be linked with horizontal welding machine to become welding & corner cleaning production line for grand imagine and high efficiency.
  8. Specially equipped with power-off protection function
  9. Parameter
    Air Pressure 0.5~0.8MPa
    Air Consumption 60L/min
    Input Voltage 380V 50Hz or As Customer Specification
    Input Power 2.8Kw
    Milling Cutter Revolution 2800r/min
    Profile Height 30~120mm
    Profile Width 20~120mm
    Overall Dimension 1800×1050×1800mm
    Weight

    584kg
