550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales
Specifications
Brand Name :
WEIKE CNC
Model Number :
WJMS-500
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
8500 USD
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
30 Sets / Month
Delivery Time :
10 Working Days
Packaging Details :
Plywood Box
Main Moter Power :
2.2KW*2
Saw Blade Diameter :
500mm
Cutting Angle :
45 degree and 90 degree
English Manual :
Provide
Video Training :
Provide
Remote Function :
Have
Color :
Customized
Description

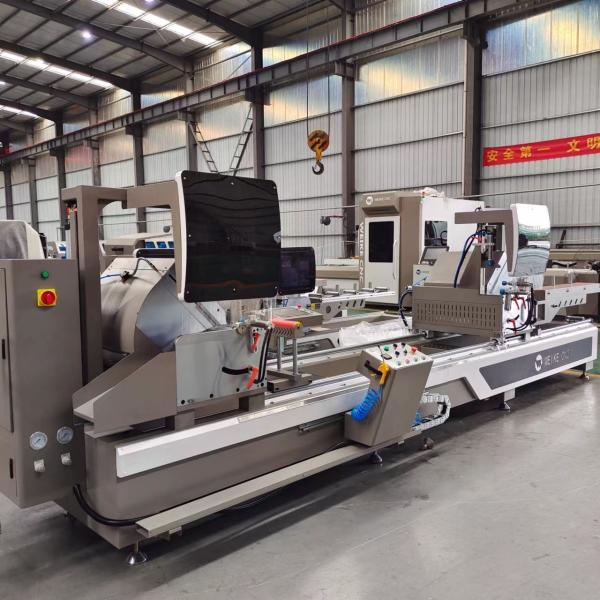

500mm/550mm/600mm CNC Double Head Cutting Saw

Front blade sawing machine

Used for Aluminum, PVC and Curtain-wall profile accurate and efficient CNC cutting.

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

1. Feature

Used for cutting aluminum and PVC, suitable for different area, such as window door, curtain wall profiles.Saw blade rotates smoothly due to high accurate main spindleThe feeding system adopts the imported linear guide pair,with high accuracy and stabilityTwo saw heads are adjustable and cut the profiles in 45°,90°freely.Auto-opening shield maked the operation safety.Uniform speed feeding and smooth motion due to airdraulic damping cylinder.

2. Technical Parameter

Input power Power supply Air pressure Motor rotary speed Saw blade specification Cutting angle Cutting length Cutting width*height Overall dimension Weight about
4.4kw 380V/50Hz (Can make according your voltage) 0.6~0.8MPa 2800r/min φ500 90°45° 360~4200mm 150*180mm (45 degree):150*240mm (90 degree) 5800 x 1500 x 1700mm 1650kg

3. Machine Details And Advantage

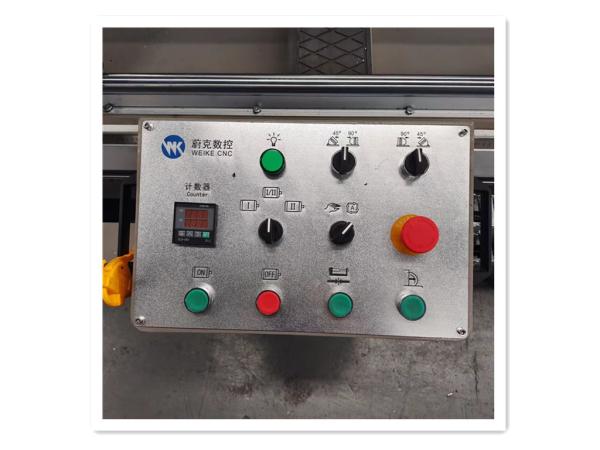

Easy Control Panel for change cutting angle with 45 and 90 degree

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

1. Use planer to ensure the flatness of the mounting guild rails
2. Guild is 40mm diameter, two guild distance is 700mm, More stable
The machine inside design to slope, more easy for chips clean

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

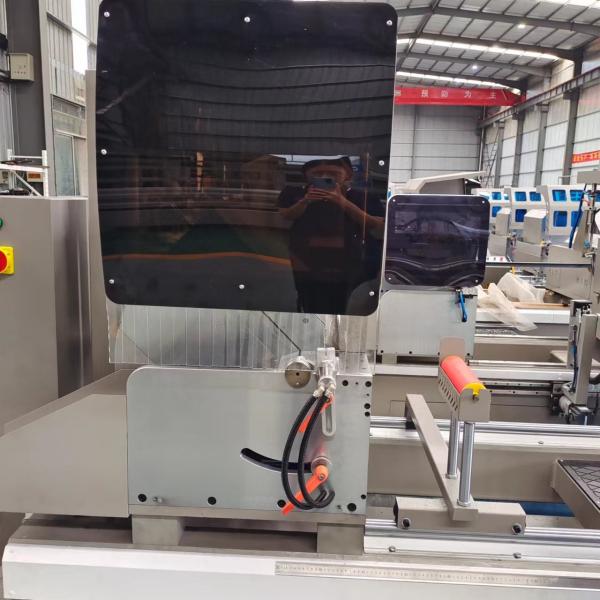

Simultaneous processing of front and rear vertical panels at the same time, so can make sure concentricity,
so precision more high

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

Two adjust speed valve, make sure Saw blade cutting stable, and back the saw blade fast.
Saw blade come out and come back are the same speed

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

Most supplier the angle fix is point to point, may easy broken and have some problem after using long time,
we upgrade to point to face, so enlarge use time.

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

Right head and left head have own lubrication, so oil can be more average

550/600mm Large Saw Blade Digital Display Double Head Miter Saw Sales

Contact Us For More Information:

Email: trade@jnfasca.com

What's app/Wechat/Mobile: +86 18264170163
