Aluminum Window Single-head Crimping Machine
Aluminum Window Single-head Crimping Machine
Specifications
Place of Origin :
China
Brand Name :
RONGQI
Model Number :
LMB-120
Certification :
CE
Price :
NG
Packaging Details :
Plastic Film
Delivery Time :
15 days
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
900
MOQ :
1 SET
Description

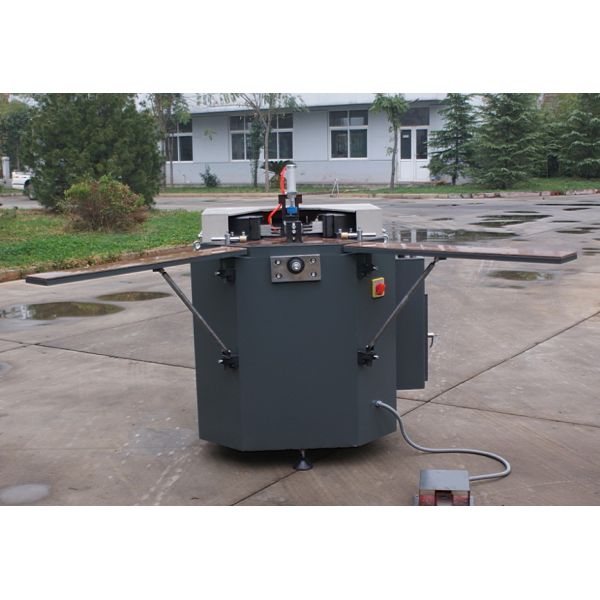

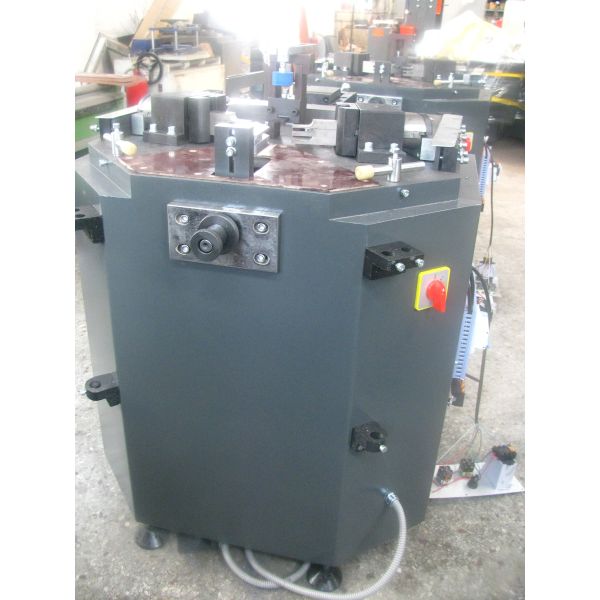

Aluminum Window Single-head Crimping Machine

Production Description

Production Name: Single-head Crimping Machine

Features:

♦ The power adopts the hydraulic pressure system, ensured the steady and

reliable operation

♦The left and right punching heads feed synchronously, avoiding the unhelpful

deformation

♦Synchronal feeding structure makes the adjustment very easy

♦It is collocated single cutter of many points crimping cutter, ensure reliably

crimping heat insulation aluminum windows and doors

♦The frame is specially jointed by 3mm steel plate introduced from the Jisteel and

after aging treatment, which ensure the high rigidity

Technical Parameters:

Power supply

380V/50Hz

Cutting motor power

1.5 Kw

Rated oil pump pressure

16Mpa

Motor rotary speed

1400r/min

Mode of the pump

2.5MCY

Profile processing height

(Max)120mm

Profile processing width

90mm

Operation air pressure

0.5-0.8Mpa

Air pressure

0.2L/Once

General pressure of corner combining

0-85KN

Corner combining casing movement journey

85mm

the adjustable range of the main location block

70mm

Contour dimension

1000mm*1200mm*1200mm

Weight

350kgs
