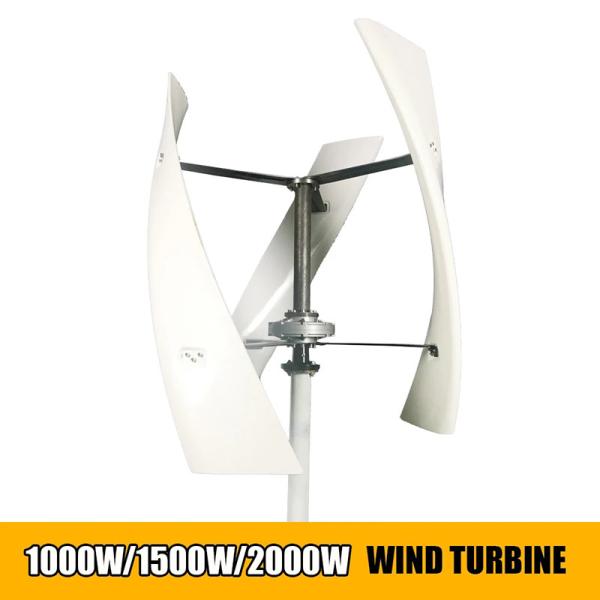

Small Vertical Wind Turbine 1KW 2KW 24V 48V Vertical Wind Turbine
Small Vertical Wind Turbine 1KW 2KW 24V 48V Vertical Wind Turbine
Small Vertical Wind Turbine 1KW 2KW 24V 48V Vertical Wind Turbine
Small Vertical Wind Turbine 1KW 2KW 24V 48V Vertical Wind Turbine
Specifications
Brand Name :
Jiangsu Shenghuang
Model Number :
SH-X1000
Certification :
CE
Place of Origin :
China-Jiangsu Province
MOQ :
1 PCS
Price :
$160-$180
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800 sets per month
Delivery Time :
10-25 working days
Packaging Details :
Carton/Foam+plywooden case
Rated Power :
600W-6KW
Color :
White/Red/Blue/Green/Customized
Blade Material :
Glass Fibre
Name :
3000W X Type Vertical Axis Wind Turbine Generator
Voltage :
24V/48V/96V
Blade Quantity :
3
Description

Modern Free Alternative Energy Small Vertical Wind Turbine 1KW 2KW 24V 48V Permanent Magnet Generator With Good Shape

Speaking of wind turbines, you might think of those that look like airplane propellers, and they're called horizontal-axis wind turbines. But there is another type of wind turbine still in development that seems to have great potential to reduce the limitations of horizontal axis turbines.

Vertical axis turbines are easily distinguished by their vertical shape. Unlike horizontal axis turbines, vertical turbines come in a variety of shapes and designs.

A wind turbine cannot be a wind turbine unless there are few blades. Likewise, horizontal axis turbines and vertical axis turbines have a set of blades. But they don't rotate horizontally, they rotate vertically. So, the rotation axis of VAWT is vertical, which is why it has such a name.

Engineers designed VAWT to make turbines more economical and practical than conventional turbines.

Model SH-X600 SH-X800 SH-X1000 SH-X1500
Rated Power 600W 800W 1000W 1500W
Maximum Power 650W 850W 1150W 1650W
Rated Voltage 12V/24V 12V/24V/48V 24V/48V/96V 48V/96V/120V
Start-up Wind Speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated Wind Speed 10m/s 10m/s 10m/s 12m/s
Survival Wind Speed 40m/s 40m/s 40m/s 40m/s
Number of Blades 3 3 3 3
Blade Height 0.8m 1.4m 1.8m 1.8m
Blade Material Glass Fibre
Type of Generator Three-phase AC Permanent Magnet Generator
Magnetic Steel Material NdFeB
Control System Electromagnet
Working Temperature -40℃-80℃
Design Life 20 Years

Model SH-X2000 SH-X3000 SH-X5000 SH-X10000
Rated Power 2000W 3000W 5000W 10KW
Maximum Power 2200W 3200W 5500W 11KW
Rated Voltage 48V/96V/120V/220V 96V/120V/220V 96V/120V/220V/380V

96V/120V/220V/380V
Start-up Wind Speed 2.0m/s 2.0m/s 2.0m/s 2.0m/s
Rated Wind Speed 12m/s 12m/s 12m/s 13m/s
Survival Wind Speed 40m/s 40m/s 40m/s 40m/s
Number of Blades 3 3 3 3
Blade Height 2.1m 2.1m 2.8m 3.6m
Blade Material Glass Fiber
Type of Generator Three-phase AC Permanent Magnet Generator
Magnetic Steel Material NdFeB
Control System Electromagnet
Working Temperature -40℃-80℃
Design Life 20 Years

Advantages of vertical axis wind turbines

Some features of VAWT make people choose it over HAWT for residential and commercial use. Let's see what benefits VAWT can bring to your home or office.

1. You don't need to set the turbine too high off the ground. Even if you don't have the proper roof placement, you can easily build the turbine close to the ground. Just make sure the area is clear of any obstructions.

2. The maintenance cost of such turbines is much lower than that of horizontal turbines. Due to the close proximity of the turbine to the ground, necessary maintenance is easy and safe.

3. If you're an animal lover, you'll love the fact that vertical axis wind turbines are bird friendly and won't harm wildlife.

4. These turbines don't make as much noise as the HAWT. Operating noise is much lower than conventional turbines.

5. You don't need to point the turbine towards the wind. They work well even when exposed to different wind directions.

6. No additional mechanism is required to operate.

7. You can set up multiple VAWTs close to each other. It is not necessary to have large fields and farms.

8. Suitable for areas where towering structures are not allowed.

9. You can easily transport turbines from one place to another.

10.Vertical axis wind turbines are very economical and suitable for small residential energy production. Great for urban areas.

Compared to horizontal turbines, their cost is much lower.

Many of these turbines are resistant to various weather elements. You can easily choose a unit that best suits your local environment.

Small Vertical Wind Turbine 1KW 2KW 24V 48V Vertical Wind Turbine

Product Feature

1. Low start-up wind speed and operating vibration

2. Adopting Flange connection, convenient installation and maintenance

3. Low Noise Level

4. Can be installed on roof top

5. High Efficiency

6. Workable to do hybrid with solar panel.

FAQ

1.Q:Does our wind is enough for a wind turbine?
-- A:Please contact with our salesman with the following points:


2.Q:Can i buy full wind and solar system from you?
-- A:Of course.Jiangsu Shenghuang New Energy Technology Co.,Ltd,can supply one-stop energy solution.We have our own technician team to supply technical support.You just need to ask a technican to install it for you.

3.Q:The delivery date for each type?
--A:Normally for wind turbine below 1kw,they are under producing all the time,and can be shipped any time.For other watts,it is around 7-14 days,and it can be negotiated according to the quantity.

4.Q:If we could be your agent or distributor?
-- A:Our company welcome more partners to joint us,but you need to double to check with us,because some area have agents alreay.Thanks for your understanding
