5000kva Oil Type Furnace Transformer for Chemistry industry
5000kva Oil Type Furnace Transformer for Chemistry industry
5000kva Oil Type Furnace Transformer for Chemistry industry
5000kva Oil Type Furnace Transformer for Chemistry industry
Specifications
Brand Name :
WINLEY
Model Number :
5000Kva
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$150000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Capacity :
10KVA-50000KVA
Type :
Oil-filled Transformer
Input Voltage :
11kV-33kV
Output Voltage :
200v/220/240/380v/400v/415v/440v
Winding material :
Copper / aluminum
Frequency :
50/60Hz
Standard :
IEC ANSI IEEE
Application :
Industrial Power Supplies
Description

5000kva Furnace Transformer Chemistry Steel Factory Use

Features

1) The iron core of the electric furnace transformer is made of high-quality oriented silicon steel sheet, which is processed by automatic cutting line.

2) It is manufactured with 45 degree full oblique seam, non-punched, non-lattice glass adhesive tape binding process.

3) The coil adopts the latest international main longitudinal insulation structure, and the structure and insulation of the winding are reasonably selected to ensure that the winding has sufficient mechanical strength.

4) It has the characteristics of strong short-circuit capacity, strong overload capacity, high efficiency, low loss, safety and reliability.


Main usage

Metallurgical iudustry: melting alloy steel and ferroalloy

Chemical industry: production of yellow phosphorus, calcium carbide, synthetic resin
Machinery industry: cast steel, cast iron, alloy melting

Specification

Capacity
(kva)		 Voltage Combination(kV) Connection on symbol Loss ShortCircuit
Impendence
High Voltage
(kv)		 Series Low Voltage
(v)		 No-load loss on-load loss
3150 6 5 100~180 Dd0 6.2 36 5
4000 10 5 110~200 7.5 45 5
5000 10 5 120~240 9 56 6
6300 10 7 140~260 11 68 6
8000 10 7 150~270 13.2 80 6
10000 35 9 150~280 15 105 6
12500 35 9 160~290 16 128 6
16000 35 13 165~310 18 160 7
20000 35 13 170~320 21 195 7
31500 35 13 190~350 36 240 8
40000 35 13 200~370 43 335 8
50000 35 13 250~490 50 390 9
63000 35 13 280~560 58 460 9

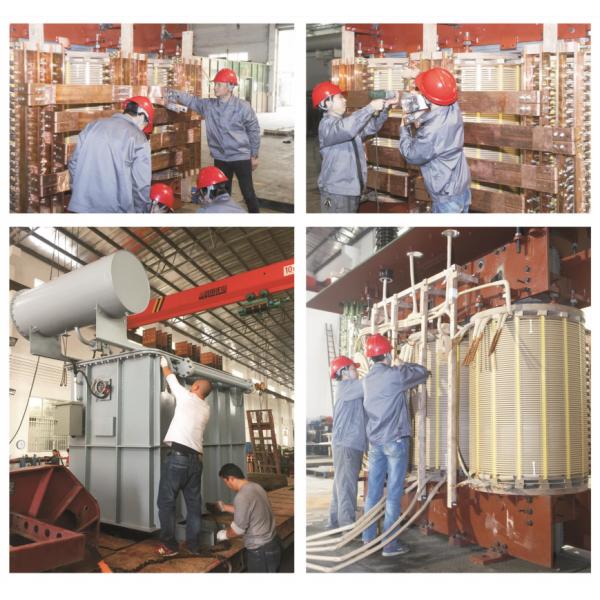

Production process

5000kva Oil Type Furnace Transformer for Chemistry industry

5000kva Oil Type Furnace Transformer for Chemistry industry

FAQ

Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
