10MVA Oil Immersed Distribution Electric Furnace Transformers
10MVA Oil Immersed Distribution Electric Furnace Transformers
10MVA Oil Immersed Distribution Electric Furnace Transformers
10MVA Oil Immersed Distribution Electric Furnace Transformers
Specifications
Brand Name :
WINLEY
Model Number :
10MVA
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
$5000-$150000
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Rated Capacity :
Up to 120Mva
Frequency :
50/60Hz
Insulation Level :
A/E
Rated Voltage :
11kV-33kV
Secondary voltage :
0.4 KV
Material :
Silicon Steel Sheet
Connection Symbol :
Yyn0/Dyn11
Standard :
IEC ANSI IEEE
Description

10MVA 20MVA 40MVA 33kV Oil-Immersed Distribution Electric Furnace Transformers

Features

1) Efficient transformers with reduced losses,low noise

2)The iron core of the electric furnace transformer is made of high-quality oriented silicon steel sheet, which is processed by automatic cutting line.

3) It has the characteristics of strong short-circuit capacity, strong overload capacity, high efficiency, low loss, safety and reliability.


Main usage

Metallurgical iudustry: melting alloy steel and ferroalloy

Chemical industry: production of yellow phosphorus, calcium carbide, synthetic resin
Machinery industry: cast steel, cast iron, alloy melting

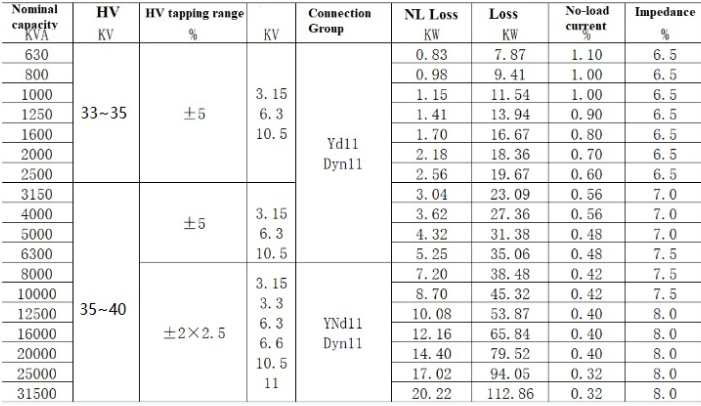

Specification

10MVA Oil Immersed Distribution Electric Furnace Transformers

Production process

10MVA Oil Immersed Distribution Electric Furnace Transformers

FAQ

Q: How do transformers been shipped?

A: Transformers always been delivered by ship,train or truck for oversea.

Q: Can your product be customerized?

A: Considering differences in voltage, frequency and other speciality of transformer product in different countries and regions,our product can be customerized according to your requirements.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least two years guarantee for all of our transformers.

Q: Do you accept FAT(Factory Acceptance Test)?

A: Yes. It’s available. We are responsible for each set transformer’s testing.

Q: Do you assign engineer for after-sale service?

A: Yes. For our products,we all show after-sale guide installation adn question inquiry.
