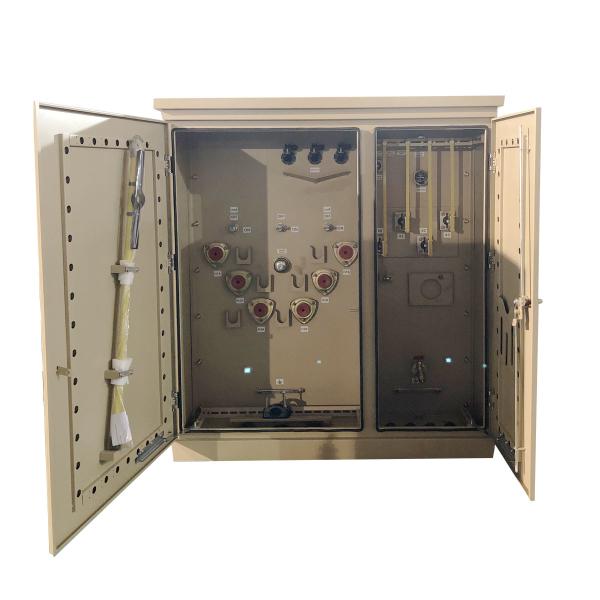

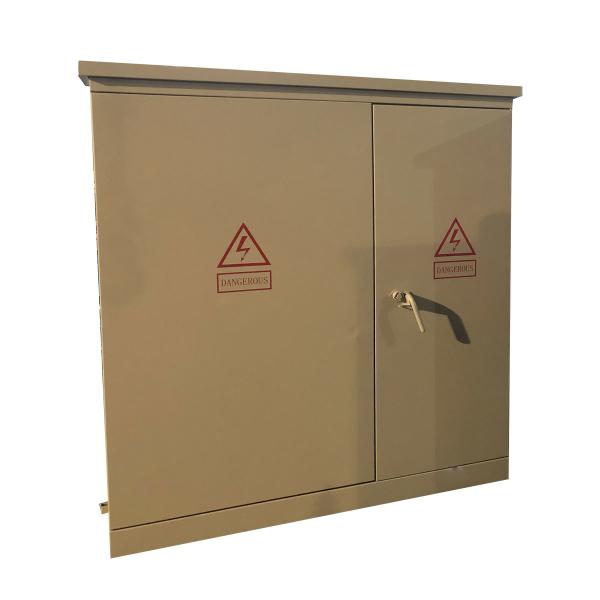

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards
500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards
500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards
500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards
Specifications
Brand Name :
WINLEY
Model Number :
S-500/15
Certification :
UL,CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$5000-$150000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Capacity :
500KVA Or Customized
Primary Voltage :
13800V
Secondary Voltage :
220V
Frequency :
50/60 Hz
Cooling Class :
KNAN; Self-Cooled
Winding Material :
Copper
Efficiency :
99.10%
Description

500 Kva 3 Phase Pad Mounted Transformer 13.8kv Ansi Ieee Standards

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards

Main data

Transformer Type Pad Mounted, Compartmental-Type
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Three Phase
Capacity 500 KVA
Vector Group Dyn1
Primary Voltage 13800
Primary Voltage Class 15 kV Class
Primary Phasor Grounded Wye
Primary BIL 95 KV
Secondary Voltage 220Y/108V
Secondary Voltage Class 1.2 kV Class
Secondary Phasor Wye-N
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Insulation Rating Class E Insulation - 120°C, 248°F
Cooling Class KNAN; Self-Cooled
Impedance (Typical) 5.5%
Primary Connection Type Dead Front
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 55 dBA
Total Weight (Liquid Filled)* 3,637 lb
Efficiency % 99.10%
No Load Loss (in watts) +/- 600W
Full Load Loss (in watts) at 100% +/- 3,500W
Total Load Loss (in watts) at 100% +/- 3,800W

Standard Features

GS11 series combined transformer is a new type of power distribution equipment. It has small volume and reasonable structure. Combined transformer is especially applicable to the load center city grid, so it can reduce the consumption and improve the quality of power supply.

What's more, this series of products have been widely used in communities across the country, public places and industrial mining enterprise and other distribution sites.

Technical drawings

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards

Specification

Rated Capacity Loss(w) Dimension(mm) Weight(kg)
No-load Loss(W) On-load Loss W D H Oil Weight (L) Total Weight (KG)
45kVA 160 1000 1730 990 1270 416 950
75kVA 180 1250 1730 990 1270 435 1020
150kVA 280 2200 1730 1245 1270 473 1225
300kVA 480 3650 1830 1295 1270 605 1655
500kVA 680 5100 2260 1345 1270 720 2110
750kVA 980 7500 2260 1448 1628 1022 2950
1000kVA 1150 10300 2260 1500 1625 1325 3720
1500kVA 1640 14500 2210 1470 2150 1552 4672
2000kVA 2160 20645 2380 1600 2220 1855 5670
2500kVA 2680 27786 3070 1650 2330 2006 6580
3000kVA 3300 30300 3260 1850 2460 2336 7500
3750kVA 4125 37875 4080 2060 2680 2650 8450

Production process

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards

500Kva 3 Phase Pad Mounted Transformer 13.8kv To 240v ANSI IEEE Standards

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
