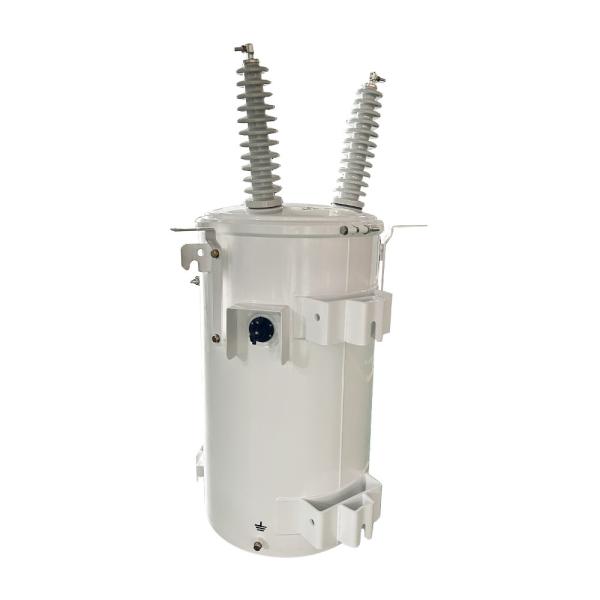

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V
Specifications
Brand Name :
WINLEY
Model Number :
D-100/35
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Phase :
Single Phase
capacity :
100 KVA
Primary Voltage :
34500GrdY/19920
Secondary Voltage :
120/240V
Cooling Class :
ONAN /KNAN
Temperature Rise :
65°C
Frequency :
50/60 Hz
Efficiency Standard(s) :
Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
Description

100KVA Single Phase Pole Overhead Distribution Transformer Oil immersed 34500V To 120V

WINLEY‘s single-phase fully complies with or even exceeds international standards such as ANSI/IEEE, CSA, and DOE.

Single-phase pole-mounted transformer power ratings:10 kVA,25 kVA,37.5 kVA, 50 kVA, 100 kVA, 167 kVA, 250 kVA, 333 kVA.

Single-phase pole-mounted transformer voltage ratings:2400V, 7200V, 124 70V , 7620V, 13200V, 13800V, 19920V, 34500V, 27600V .

Product Structure

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

Main data

Transformer Type Overhead Distribution Transformer
Phase Single Phase
Capacity 100 KVA
Primary Voltage 34500GrdY/19920
Secondary Voltage 120/240V
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class ONAN
Efficiency Standard(s) DOE 2016, ANSI/IEEE
Winding Material Copper
Ambient Temperature Rating 43°C
Sound Level 50 dBA
Dimensions* 30.65''-W x 31.80''-D x 47.19''-H
Total Weight (Liquid Filled)* 959 lb
Efficiency 99.00%
No Load Loss (in watts) +/- 270W
Full Load Loss (in watts) +/- 1,100W

Product drawings

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

Specifications

10kva-500kva Single-phase oil immersed transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
10 4160
7200
12000
12470
13200
13800
19920
24940
34500		 110
220
230
400
480		 II0,II6 IEEE/ANSI/ DOE/CSA 1.0-4.5% 98.7
15 98.82
25 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49

Structural Features

  • The tank lids are equipped with high-voltage porcelain bushings featuring ring terminals that accommodate both aluminum and copper cables.
  • The circular sewing structure of the tank cover promotes even stress distribution and ensures reliable sealing.

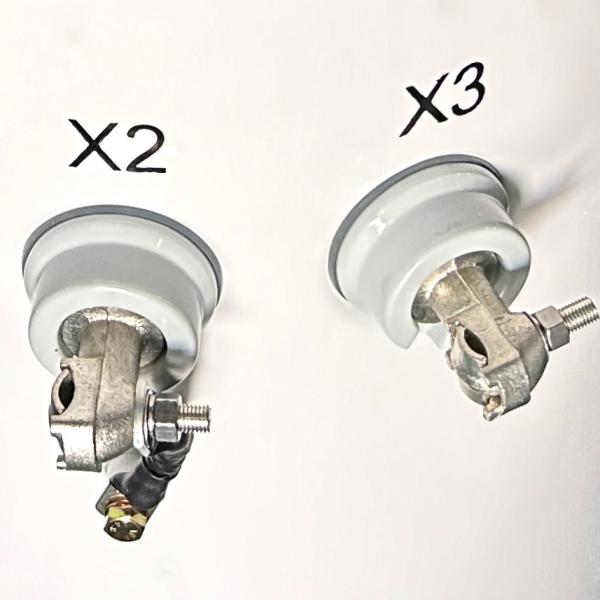

  • Tin-plated ring bolts on the tank wall function as the low-voltage bushings and terminals.
  • This transformer includes a self-sealing pressure relief valve.
  • The suspension hooks at the top and bottom of the transformer comply with ANSI standards.
  • The ground terminal on the tank is designed as a ring bolt ground terminal.

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

100KVA Single Phase Pole Overhead Distribution Transformer Oil Immersed 34500V To 120V

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
