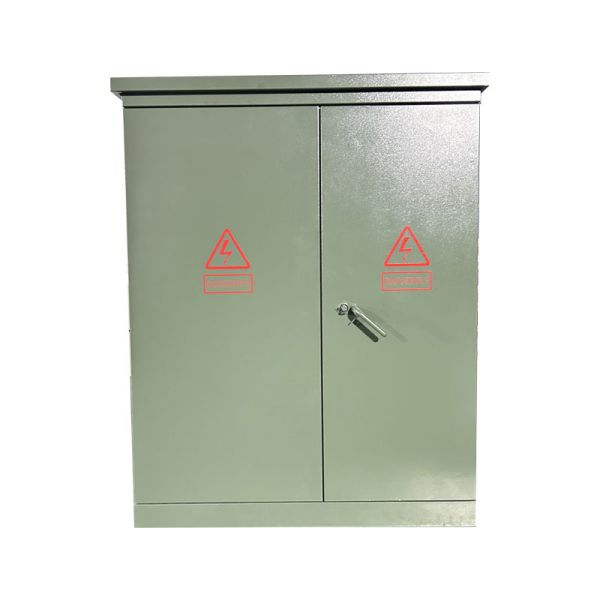

Pad Mounted Transformer 75 Kva Three Phase Step Down Transformer 12000V To 480Y UL Certified

Why choose us

• The product range spans from 45KVA to 5500 KVA, with a voltage rating of up to 34.5 KV, conforming to or exceeding standards such as DOE 2016, IEEE/ANSI, CSA , IEC , NEMA.
• The products hold UL/cUL certification (Certificate Numbers: UL-US-2431836-0, UL-CA-2423202-0) and can obtain UL (partner authorization) based on customer requests.
• Our products are exported in large quantities to regions such as North America and the Philippines. We pride ourselves on our extensive design and production experience, along with professional and reliable after-sales service, ensuring quick delivery within 7 to 35 days.

Main data

Product Structure

• 60 Hz operation.
• 65°C average winding rise.
• Radial & loop feed arrangements.
• Dead and live front type of HV terminals.
• HV BIL 45 – 150 kV (Dead Front) 200 kV (Live Front).
• LV BIL 30 – 60 kV.
• Three-point latching of low-voltage door.
• High-voltage door, which can be opened only afterthe low-voltage door is opened.
• Rigid steel partition.
• Transformer tank welded from cover to base.
• Permanent nameplate.
• One-inch NPT pipe cap filling provision.
• ANSI tank ground pads.
• One-inch drain valve and sampler.
• Automatic pressure-relief valve (35 SCFM).
• Tap changer with (2) 2.5% full capacity taps above and below nominal.
• One 10”x18” (or 14”x25”) hand hole in transformer tank cover.
• Painted olive-green color (Munsell 7GY 3.29/1.5).
• Designed, manufactured and tested in accordance

Technical drawings

Specification

Ratings

• Meets/Exceeds DOE 2016 Efficiency Ratings
• Complies with ANSI / IEEE C57.12.00
• Complies with ANSI / IEEE C57 12.28
• Complies with ANSI / IEEE C57 12.34
• Complies with ANSI / IEEE C57.12.70
• Complies with ASTM D3487
