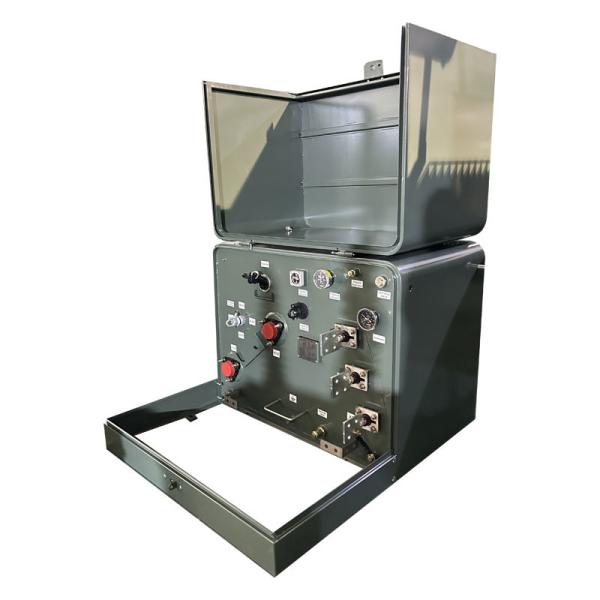

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V
Specifications
Brand Name :
WINLEY
Model Number :
D-167/34.5
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Phase :
Single Phase
Capacity :
15-333 kVA
Primary Voltage :
34.5kV/19.92kV, 24.94kV/14.4kV, 13.8kV/7.957kV, 13.2kV/7.62kV, 12.47kV/7.2kV or others
Secondary Voltage :
120/240V, 240/480V, 347V, 600V or others
Feed Type :
Loop feed/Radial feed
Winding Material :
Copper/Aluminium
BIL :
30-150
Standards :
ANSI, IEEE, DOE, CSA, NEMA
Description

167 kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

  • Primary Voltage Ratings: 34.5kV/19.92kV, 24.94kV/14.4kV, 13.8kV/7.957kV, 13.2kV/7.62kV, 12.47kV/7.2kV or others
  • Secondary Voltage Ratings: 120/240V, 240/480V, 347V, 600V or others
  • H.V. TAP RANGE: ±2×2.5% or others
  • TYPE: Loop feed/Radial feed
  • BIL: 30-150
  • Application: Residential Areas, Hotels, Single Family Houses, Parks, Underground Distribution Systems
  • Power Rating: 15-333 kVA
  • Efficiency Ratings:
    • Meets/Exceeds DOE 2016
    • Complies with ANSI / IEEE #C57.12.00
    • Complies with ANSI / IEEE #C57.12.25
    • Complies with ANSI / IEEE C57 12.28
    • Complies with ANSI / IEEE C57 12.38
    • Complies with ANSI / IEEE C57.12.70
    • Complies with ASTM D3487

Product Structure

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

Main data

Mounting Pad Mount
Phase Single Phase
kVA 167
Primary Voltage 34500GrdY/19920
Secondary Voltage 240/120V (L-N-L)
Frequency 60 Hz
Temperature Rise 60°C
Tap Changer ±2.5%
Efficiency Meet DOE 2016 Standard
Insulation Fluid Mineral Oil
Cooling Class ONAN
Protection Fuses Bayonet Fusing
Load Break Switch 4-postion Load Break Switch
Feed Loop
Winding Material Copper
Dimensions 30 x 45 x 35
Weight +/- 1,640 lb

Product drawings

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

Feature

  • Pentahead Entry Assembly
  • High-Fire Point Natural Ester Insulating Fluid
  • Non-PCB Insulating Fluid
  • Tamper Proof Housing
  • Lift Up Pad lockable Lid

Specification

Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106

Production process

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

167 Kva Single Phase Pad Mounted Power Distribution Transformer IEEE ANSI Standard 34.5KV To 240/120V

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
