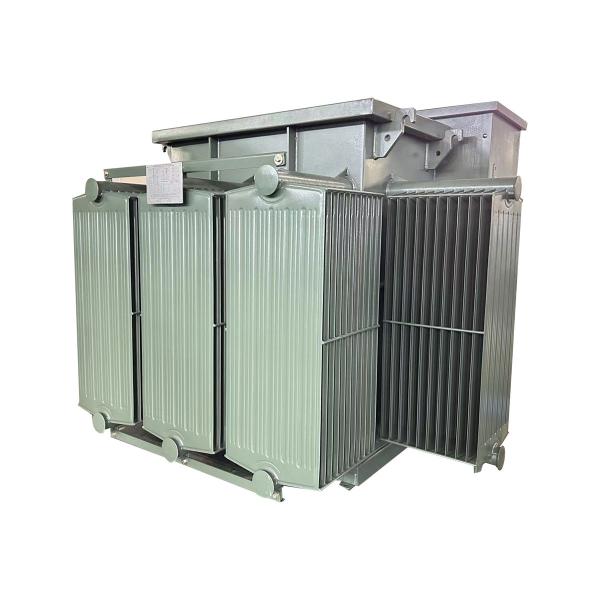

Three Phase Pad Mounted Transformer ANSI/IEEE Standard 2000kva 24940y/14400v To 480y/277

Summarization

The three-phase pad transformer is a combination of transformer, switchgear, fuse, tap changer, low-voltage power distribution device and other corresponding auxiliary equipment. It has the advantages of advanced structure, reliable performance, energy saving and consumption reduction.

WINLEY ELECTRIC specialize in the production of three-phase pad-mounted transformers. Our products comply with ANSI, IEEE, DOE, CSA and other standards. The rated power is usually 75kva to 5500kVA, and the voltage can reach 34.5 kV. Our products are exported to North America and other places in large quantities. We have rich experience in design, production, and after-sales service.

STRUCTURE

Main data

Specification

Technical drawings

Environmental conditions for normal use

Altitude: not more than 1000 meters;
Ambient temperature: no higher than +40°C, no lower than -25°C, daily average temperature difference no more than 35°C, annual average temperature difference no more than 20°C;
The wind speed does not exceed 35m/s;
There is no explosion hazard in the installation site, no chemical corrosion and severe vibration;
Cooling method: natural air cooling (AN).

Production process

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
