37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee
Specifications
Brand Name :
WINLEY
Model Number :
D-37.5/12
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Phase :
Single Phase
Rated capacity :
37.5KVA
Primary Voltage :
12000V
Secondary Voltage :
240/120V
Cooling Class :
KNAN; Self-Cooled
Impedance :
2.7%
Sound Level :
48 dBA
Tank Material :
304 Stainless Stee
Description

37.5Kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000V to 240V 304 Stainless Stee

The single-phase pad-mounted transformer is a compact independent electrical device suitable for outdoor installation without the need for an additional protective housing. It is flexible and efficient in design, with the characteristics of small size, light weight, low noise, low loss, safety and reliability, and is widely used in residential areas, commercial centers, hospitals, parks, schools and other places.

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

Feature

 Pressure relief device
 Fluid fill and drain provisions
 Laser engraved nameplate
 Floating lock pocket for easy alignment
 Decal bushing designations
 Welded domed tank cover
 Tamper strips of noncorrosive material
 Crowned tank
 Removable sill
 Hinged door with stainless steel hinge pins and barrels
 Ground strap fromX2 to tank ground
 HV bushing wells for dead front elbow connectors
 High voltage bushing wells-200A and low voltage bushin

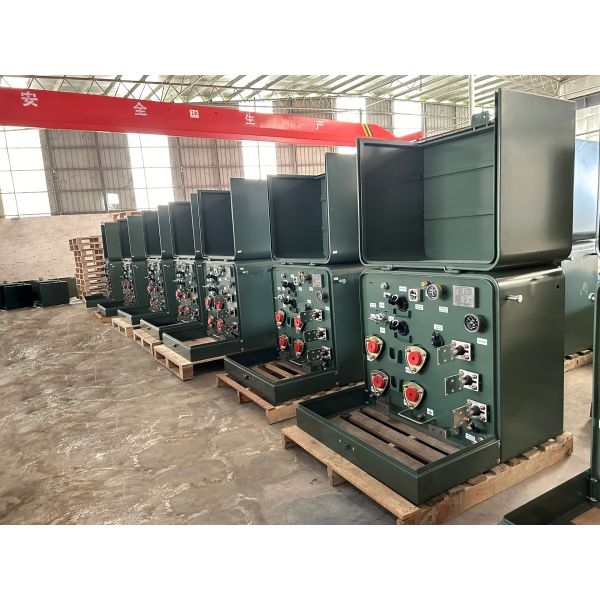

Factory photos

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

Main data

Transformer Type Pad Mounted, Compartmental-Type II
Transformer Configuration Liquid Filled Pad Mounted
Transformer Feed Type Loop Feed
Phase Single Phase
Capacity 37.5
Vector Group II6
Primary Voltage 12000V
Primary Voltage Class 15 kV Class
Primary Phasor Delta
Primary BIL 95 KV
Secondary Voltage 240/120V (L-N-L)
Secondary Phasor Dual Winding Single Phase
Secondary BIL 30 KV
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class KNAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Tank Material 304 Stainless Steel, Minimum 14-gauge stainless steel
Efficiency 98.90%
No Load Loss (in watts)* +/- 135W
Load Loss (in watts)* +/- 466W

Specification

25kva-500kva single phase pad mounted transformer
Rated Cap acity(kVA) High Low Voltage(v) Connection Symbol Standard Short-circuit impedance(%) Efficiency
Voltage(v) (%)
25 4160 7200 12000 12470 13200 13800 19920 24940 34500 110 220 230 400 480 II0,II6 IEEE/ANSI/ DOE 1.0-4.5% 98.95
37.5 99.05
50 99.11
75 99.19
100 99.25
167 99.33
250 99.39
333 99.43
500 99.49

Drawing

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

Accessories

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

Production process

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

37.5kva Single Phase Pad Mounted Distribution Transformer Oil Immersed 12000v To 240v 304 Stainless Stee

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
