50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential
50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential
50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential
50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential
Specifications
Brand Name :
WINLEY
Model Number :
ZGD-50/22
Certification :
CE,ISO
Place of Origin :
CHINA
MOQ :
1unit
Price :
$1000-$10000
Payment Terms :
T/T
Supply Ability :
1000set/month
Delivery Time :
30days
Packaging Details :
Plywood case
Type :
Pad Mount Transformer
Phase :
Single Phase
Primary Voltage :
22860GrdY/13200
Secondary Voltage :
120/240 (L-N-L)
Frequency :
60 Hz
Winding Material :
Copper
Cooling Class :
KNAN; Self-Cooled
Efficiency :
99.15%
Description

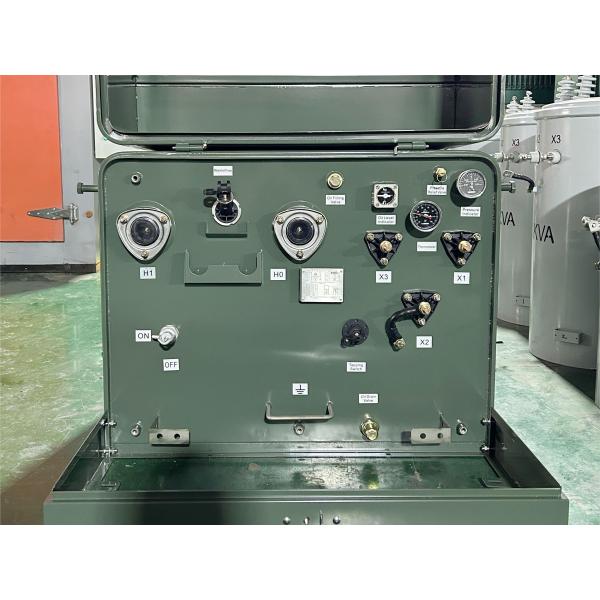

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

Single-phase padmount transformers designed to bring underground 1-phase power to homes, and commercial buildings from utility feeds. These units are perfect for urban public locations due to their tamper-proof and low profile design.

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

Main data

Phase Single Phase
Capacity 50
Transformer Feed Type Radial Feed
Vector Group II6
Primary Voltage 22860GrdY/13200
Secondary Voltage 240/120V (L-N-L)
Frequency 60 Hz
Temperature Rise 65°C
Cooling Class KNAN; Self-Cooled
Efficiency Standard(s) Meets DOE 2016 Standards, Meets ANSI/IEEE Standards
K-Factor Rating (Harmonic Mitigation) K-1 (Standard)
Winding Material Copper
Ambient Temperature Rating 40°C
Sound Level 48 dBA
Dimensions* 35''-W x 42''-D x 30''-H
Weight* 1200 lb
Efficiency 99.11%
No Load Loss (in watts)* +/- 167W
Load Loss (in watts)* +/- 640W

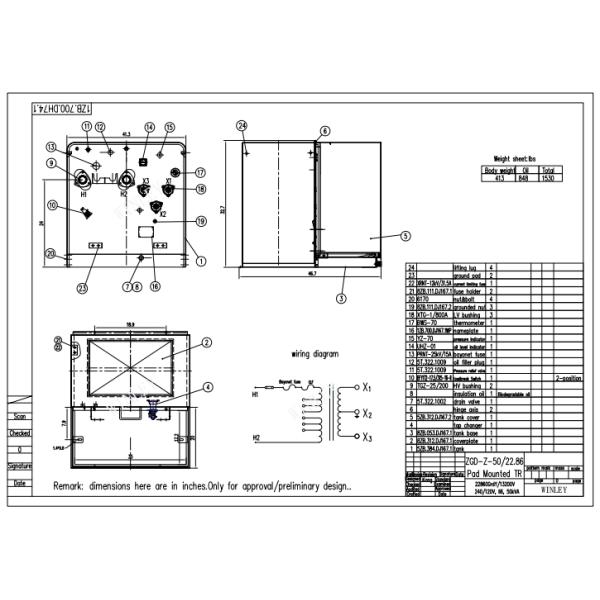

Drawing

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

Standard specs

  • Type II non-PCB mineral oil (ONAN)
  • High-grade silicon-steel core
  • Aluminum windings
  • Pad-lockable door handle
  • DOE 2016 efficiency
  • Reinforced carbon steel tank
  • Lifting lugs
  • Pressure relief valve
  • 65 degree C rise
  • Bayonet fuse with drip shield
  • Dead front well and insert HV bushings
  • Paddle/spade or lug-connector type LV bushings

Optional specs

  • Environmentally friendly, high fire-point FR3 oil (KNAN)
  • Copper windings
  • Stainless steel tank
  • High voltage taps
  • Dual voltage
  • Backup CL Fuse (internal)
  • On-Off High Voltage Switch
  • Removable Stud Bushing Wells

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

Specification

Single phase Pad mounted Transformer Specification
Rating High voltage(kV) No Load Loss On load Loss Height Depth Width Oil Weight(kg) Total Weight(kg)
(kVA) (mm) (mm) (mm)
15 kVA 34.5/19.92
13.8/8
13.2/7.6
12.47/7.2
or others		 50 195 840 740 610 45 294
25 kVA 80 290 840 740 610 68 362
37.5 kVA 106 360 840 760 610 75 476
50 kVA 135 500 840 810 610 93 553
75 kVA 190 650 840 860 610 132 672
100 kVA 280 1010 910 1200 965 230 714
167 kVA 435 1530 1000 1200 965 265 913
250 kVA 550 2230 1250 1300 1430 325 1106

Meets/Exceeds DOE 2016 Efficiency Ratings

  • Complies with ANSI / IEEE #C57.12.00
  • Complies with ANSI / IEEE #C57.12.25
  • Complies with ANSI / IEEE C57 12.28
  • Complies with ANSI / IEEE C57 12.38
  • Complies with ANSI / IEEE C57.12.70
  • Complies with ASTM D3487

Production process

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

50Kva Single Phase Pad Mounted Transformer Distribution Oil Immersed 22860V to 240V Residential

FAQ

1. Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

2. Q: What is the lead time?

A: Mass production time 15-25 days.

3. Q: How long is the warranty?

A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.

4. Q: Is OEM/ODM available?

A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.

Customized services:

a. Customized color and special function.

b. Customized box.

c. Print customer's logo.

d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.

5. Q: How to control the products quality?

A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
