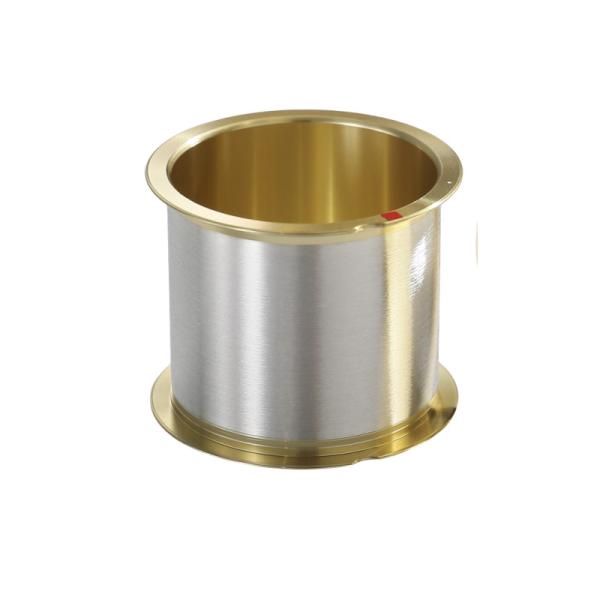

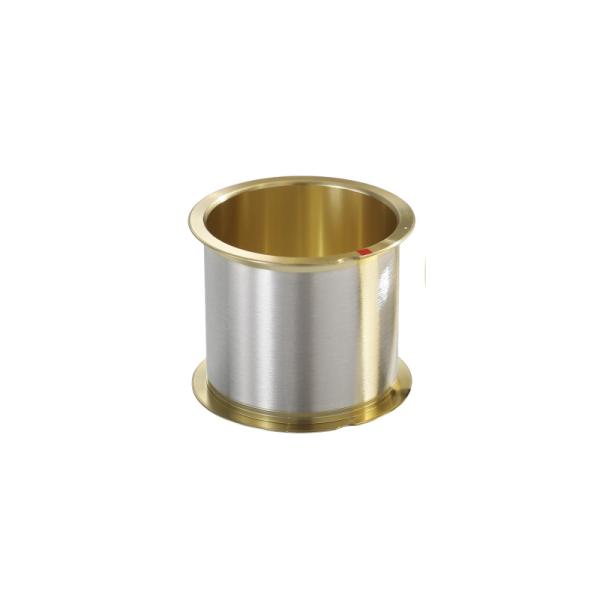

High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications
Specifications
Brand Name :
WINNER
Model Number :
YF-96
Certification :
ISO 9001, ISO 14001, RoHS
Place of Origin :
China
MOQ :
1pc
Price :
1~999
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000000 rolls per month
Delivery Time :
5~8 working days.
Packaging Details :
Roll, Neutrial Packing or with OEM LOGO
Diameter :
18(0.7mil)
Breaking Load BL(gf) :
>4
Elongation EL(%) :
3-20
Material :
Silver
Application :
Semiconductor Packaging, LED Packaging, Automotive Electronics
Purity :
99.99%
Melting Point :
1064°C (Gold), 961°C (Silver), 1084°C (Copper)
Description

High-Conductivity and Low-Cost Silver Bonding Wire for Automotive Aerospace and Medical Applications

Our product is meticulously crafted from high - purity gold or silver material. The purity level of this precious metal is guaranteed to be no less than 99%, ensuring the highest quality. In addition to the pure gold or silver, carefully selected alloy elements are added during the manufacturing process.

The surface of the product has been treated with advanced composite materials. This treatment endows the surface with a stable structure that can withstand different environmental conditions. Moreover, it results in outstanding electrical and thermal conductivity.

When compared to traditional gold wire, our product stands out with a significantly lower cost. This cost - effectiveness is not achieved at the expense of quality. Instead, it provides a remarkable competitive advantage in terms of price.

This product is widely utilized in the packaging of ICLED. In this application, its unique combination of properties plays a vital role. It ensures the reliable operation of ICLED components by providing stable electrical connections and efficient heat management.

Silver alloy Bonding Wire AG99%

Type

Ø Diameter

±1% μm

Breaking Load

BL(gf)

Elongation

EL(%)

Length

Meters

YF-99

18(0.7mil)

>4

3-20

500/1000

99B

20(0.8mil)

>5

3-20

500/1000

SW-21

23(0.9mil)

>7

3-20

500/1000

99A

25(1.0mil)

>8

3-20

500/1000

99A

30(1.2mil)

>11

3-20

500/1000

Note: The above Diameter, BL and EL parameters can be customized according to customer requirements.

Application:

Bonding silver wire is specially designed for the proper operation of IC packaging and LED equipment. High-reliability bonding silver wire is applied in: Consumer electronics and computing devices, Smartphones and telephones, PCs, Tablet, Televisions, Servers and systems, Imaging equipment, Wearable electronic device, Communications, Wireless, Wired, Satellite, NFC technology, LED.

High Conductivity Silver Bonding Wire For Automotive Aerospace And Medical Applications

1.What kind of Enameled copper wire do Winner produce?

We focus on research and development of selfbonding magnet round copper wire, fine polyurethane magnet wire, selfbonding litz copper wire and selfbonding silk covered wire.

2.What's diameters available of the Enamelled copper wire ?

We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.

3.What's selfbonding enameled copper wire?

Selfbonding enamelled copper wire is a special type of enamelled wire with an additional adhesive enamel overcoat such as thermoplastic resin.This adhesive has a bonding feature, which is activated

by heat or solvents.

Once activated the adhesive bonds turn to turn windings into a compact self supporting coil.

The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications

as bobbins, tape, varnishing, or impregnation may be eliminated.

4. Is possible to get any sample of selfbonding enamelled copper wire that you have in production?

Of course you can!
