product description :

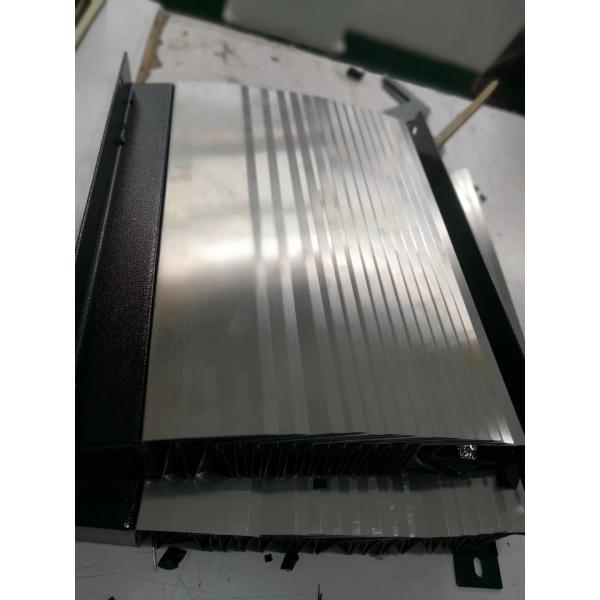

highly durability finned bellows cover black and silver for traverse rate 120M/min

Allows for traverse rate 120 M/min

A: High hardness stainless steel

B: Bellows cover

C: stiffener

This finned bellows cover are suitable for large amounts of high-temperature chips ,ultra large travel and insufficient space

for mounting metal sheet guard .

applicable machines include horizontal machining centers , travelling column machining centers and various CNC machining

centers . the corrugation top is equipped with stainless steel or aluminum alloy sheet for surface protection to prevent

high temperature from damaging the cover while ensuring superior protection effect .

Do you need vertically mounted bellows ?without lamella overhang ?

The bellows with hinged lamellas are the perfect solution for you .

Each lamella is flexibly fixed to the PVC frame . therefore , the lamellas can lie down flat on the machine enclosure

at the bottom .

Combine the rigidity and durability of steel way covers with the compression and flexibility of fabric bellows .

steel cladded is added to fabric bellow when : debris is red hot/swarf is razor sharp /

space is limited /applications are vertical .

Fixed or hinged (hinged design has overhang- good for vertical applications )

Features &Benefits :

Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .

Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .

Applications typical :

Vertical , horizontal or cross-rail protection for machine way protection .

Fixed or hinged ,stainless steel lamellas can be added to protect the bellows

against hot , sharp-edged swarf ,or mechanical strain .

High speed traveling /Resist high temperaure chips /light weight

Bellows cover in combination with high hardness stainless steel make it suitable for metal cutting chips .

outstanding forming technology and structure design enable the series of cover to be ideal for protecting slide ways with extra large traveling .

low noise and long service life . available to equip with sliding and synchronized mechanism for rapid traverse .

customized product .
