highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min
Specifications
Brand Name :
SJ
Model Number :
SJ19018803
Certification :
N/A
Place of Origin :
CHINA
MOQ :
1pcs
Price :
depends
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/month
Delivery Time :
5-10days
Packaging Details :
plastic bag +carton box
material 1 :
stainless steel
material :
fabric cloth
colour :
black /silver
size :
any size
Description

product description :

precisely designed laminar bellow /gordillo bellows for protect against hot chip loads

Allows for traverse rate 120 M/min

A: High hardness stainless steel

B: Bellows cover

C: stifferner

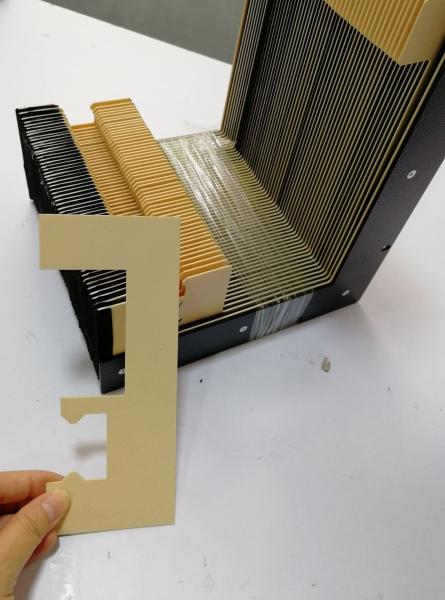

Do you need vertically mounted bellows ?without lamella overhang ?

The bellows with hinged lamellas are the perfect solution for you .

Each lamella is flexibly fixed to the PVC frame . therefore , the lamellas can lie down flat on the machine enclosure

at the bottom .

Combine the rigidity and durability of steel way covers with the compression and flexibility of fabric bellows .

steel cladded is added to fabric bellow when : debris is red hot/swarf is razor sharp /

space is limited /applications are vertical .

Fixed or hinged (hinged design has overhang- good for vertical applications )

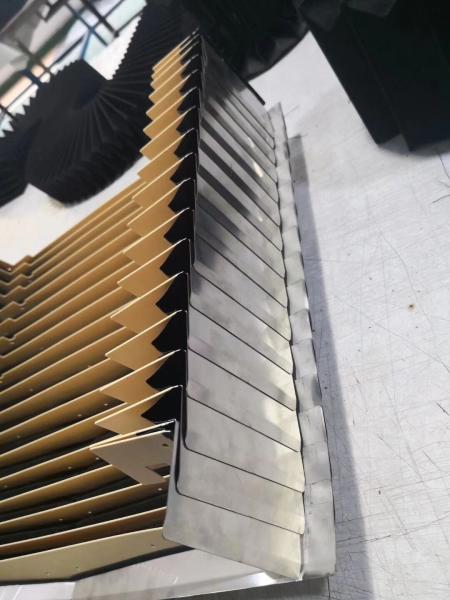

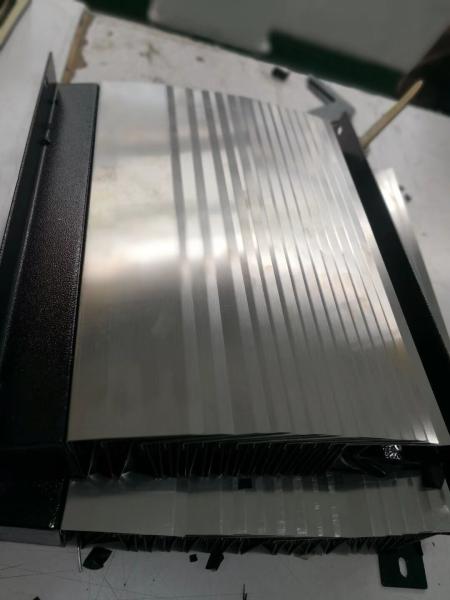

Laminar bellow is a bellows way cover (sewn-folded or thermic-weld construction )

made with stainless steel plates covering each convolution .

The stainless steel plates shield the bellows from damaging hot chips and hot sparks ,

which could quickly damage a conventional bellows .A gordillo way cover is a convenient option where

there is not enough space for a telescopic way cover .

Features &Benefits :

Added protection against hot chip loads and weld spatter resistance prolongs operation life of bellows .

Smaller footprint and great extended -to-retracted ratio compared to telescoping steel way covers .

Applications typical :

Vertical , horizontal or cross-rail protection for machine way protection .

Fixed or hinged ,stainless steel lamellas can be added to protect the bellows

against hot , sharp-edged swarf ,or mechanical strain .

highly durability steel clad bellows finned bellows cover black and silver for traverse rate 120M/min

fold height (e) 24
extensions per fold flat (AZ) 27
extensions per fold folded (az) 33
