Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Toption Overhead Stirrer Lab Mixer For Pharmaceutical Synthesis
Specifications
Accuracy :
Varies depending on specific equipment
Capacity :
Varies depending on specific equipment
Certifications :
CE, ISO
Features :
Adjustable temperature control, digital display, timer function
Material :
Stainless Steel, Glass, Plastic
Power Source :
Electricity
Product Type :
Laboratory Equipment
Safety Features :
Overheat protection, automatic shut-off
Temperature Range :
Room temperature to 300°C
Usage :
For general laboratory experiments and procedures
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

      • Overhead Stirrer

        TOPTION overhead stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.

        Specifications OS20-Pro OS20-Pro
        Max. stirring quantity[H2O] 20L 40L
        Power 70W 130W
        Motor type brushless DC motor brushless DC motor
        Motor input power 60W 120W
        Motor output power 50W 100W
        Speed range 50-2200rpm 50-2200rpm
        Speed display accuracy ±3rpm ±3rpm
        Speed display LCD LCD
        Torque display LCD LCD
        Voltage 100-220V, 50/60 Hz 100-220V, 50/60 Hz
        Overload protection display LED lights LED lights
        Max. torque 40Ncm 60Ncm
        Viscosity max. 10000mPas 50000mPas
        Chuck range diameter 0.5-10mm 0.5-10mm
        Dimension[W*D*H] 83*220*186mm 83*220*186mm
        Weight 2.8kg 2.8kg
        Protection class IP21 IP21
        Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C, 80%RH
        Data connector RS232 RS232

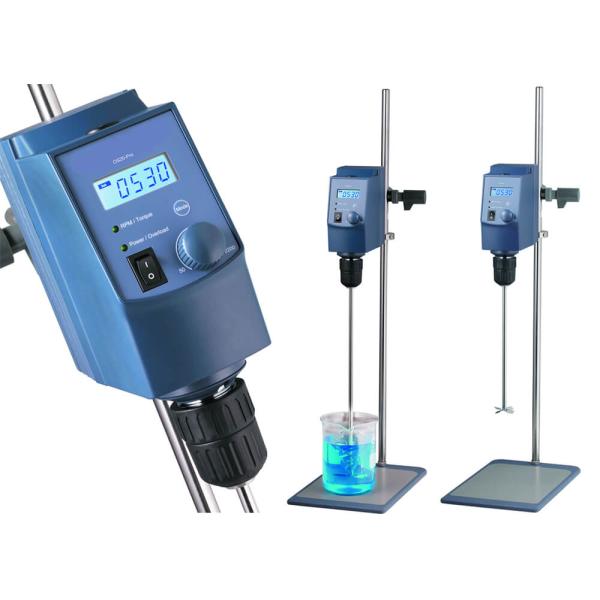

        • Main features of LCD digital overhead stirrer:

        1.High reliability and outstanding performance.

        2. LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm.

        3. Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity, changes.

        4. Safety circuits allow for safe stop function in anti-stall or overload conditions.

        5. Smooth operation prevents accidental spillage and splashing.

        6. Provides constant speed even with changes in viscosities of the samples.

        7. Remote function provide PC control and data transmission.

        8. Availability of auto-restart function in case of power loss for overnight operations.

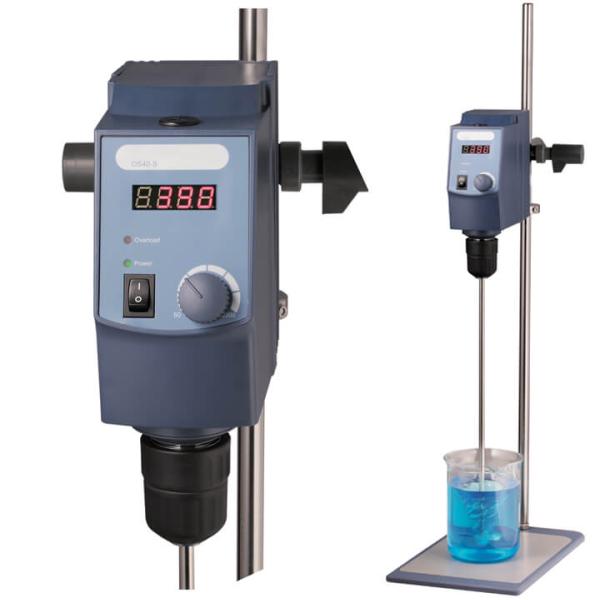

    • LED Overhead Stirrer

      • High reliability and outstanding performance.
      • A wide range of speed from 50 to 2200rpm.
      • Brushless DC motor for long life, maintenance free and explosion proof.
      • LED screen for monitoring actual speed.
      • Safety circuits allow for safe stop function in anti-stall or overload conditions.
      Specifications OS20-S OS40-S
      Max. stirring quantity(H2O) 20L 40L
      Motor type brushless DC motor brushless DC motor
      Motor input power 60W 120W
      Motor output power 50W 100W
      Voltage 100-220V, 50/60 Hz 100-220V, 50/60 Hz
      Power 70W 130W
      Speed range 50-2200rpm 50-2200rpm
      Speed display accuracy ±3rpm ±3rpm
      Speed display LED LED
      Overload protection display LED lights LED lights
      Max. torque 40Ncm 60Ncm
      Viscosity max. 10000mPas 50000mPas
      Chuck range diameter 0.5-10mm 0.5-10mm
      Dimension[W*H*D] 83*220*186mm 83*220*186mm
      Weight 2.8kg 2.8kg
      Protection class IP42 IP42
      Permissible ambient temperature and humidity 5-40°C, 80%RH 5-40°C 80%RH

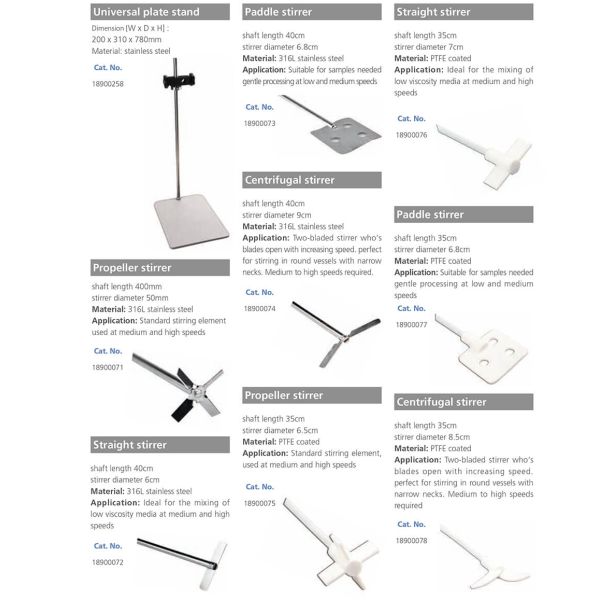

    • Accessories of overhead stirrers
