1L Supercritical Fluid Extraction cbd

TOPTION Supercritical Fluid Extraction is a kind of high and new separation technology which developed nearly 10 years. It has difference with conventional solvent extraction which use organic solvent, the new one choose a substance called Supercritical Fluid (SF) as extracting agent instead of organic solvent.

The SFE technology is mainly about Separation, the solution will touch with extracted materials under High Pressure& Suitable Temperature, the Solutes would be diffused into the solution, then change the operation Conditions, to make the Solutes separate out.

Technical parameters of botanical and cbd extracts supercritical fluid extraction equipment:

Your benefits from TOPTION brand supercritical fluid extraction equipment:

1.The extractor is equipped with a quick opening, the quick opening mechanism adopts special design (the technology introduced from US), and the switch kettle is portable and fast.

2. The extractor and separator are made of stainless steel integral forgings with high strength and long life.

3. Unique cylinder design, which increases the effective contact with the material in the extractor, overcomes the “bypass” phenomenon of CO₂, improves the extraction efficiency and yield, and reduces the extraction time.

4. The heat exchange system is equipped with electric heating device. The temperature can be set arbitrarily and the heating is stable and uniform.

5. Adopt the refrigeration unit of joint venture technology, the refrigeration effect is good, the appearance is beautiful.

6. Equipment has reliable security: in addition to the pressure device has enough safety margin, the extractor, separator, evaporator are equipped with safety relief valve, and CO₂ pump discharge has pressure limited protection, the whole units will stop running while over pressure.

7. Automatic Control System operation is simple: extraction and separation pressure, heating and cooling temperature, CO2 flow can be determined by process.

8. Computer centralized control, 17 inches color LCD touch screen display and control, high speed, high performance microprocessor, cooperate with the company self-developed software can realize multi-channel signals at the same time of test, record, display, alarm and control output, and has USB interface, can be inserted U disk backup history data, or connect printer to print history curve and data. (This function is optional).

9. Use frequency converter to adjust CO2 flow, which is convenient for process and energy saving.

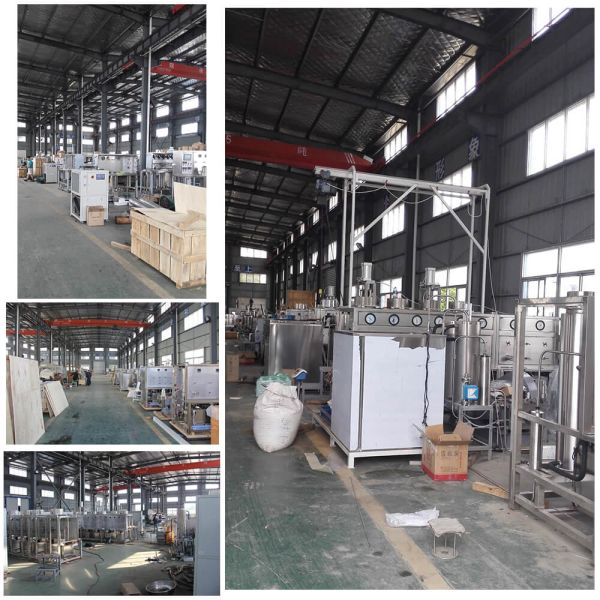

Supercritical fluid extraction equipment workshop show:

Learn more about TOPTION INSTRUMENT CO.,LTD , welcome TOPTION supercritical fluid extraction factory visit: info@toption-china.com 24h/7days online service.
