0.5L Supercritical Co2 Extraction Plant 110V/220V Co2 Extraction Machine
0.5L Supercritical Co2 Extraction Plant 110V/220V Co2 Extraction Machine
Specifications
Control System :
PLC
Frequency :
50Hz/60Hz
Heating Method :
Electric Heating
Material :
Stainless Steel
Power Source :
Electric
Product Type :
Industrial Equipment
Voltage :
110V/220V
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • 0.5L Supercritical co2 Extraction Plant

      TOPTION brand Supercritical Fluid Extraction Machine is also named as Essence Extraction Machine, which is used for the extraction of material (solid or liquid) under high pressure and suitable temperature extraction.

      Changing conditions in the separation kettle, the dissolved substances will resolve in order to achieve the purpose of separation.

      Technical parameters of 0.5L laboratory supercritical carbon dioxide extraction plant:

      Model

      Extraction capacity

      Pressure

      Temperature range

      Combining form

      TOP120-50-0.5

      0.5L

      500bar

      RT-75℃

      One extracting pot-two separating pot circulation mode.

      TOP121-50-0.5

      0.5L

      500bar

      RT-75℃

      One extracting pot-two separating pot one rectifying column circulation mode.

      Main features of this set supercritical CO2 extraction machine:

      1.Intermittent or continuous work,co-solvent can be added if request.

      2. CO2 can be recovered and reused.

      3. Pressure and temperature can be designed according to demand.

      4. Can custom made into PLC or computer control.

      Application of supercritical carbon dioxide extraction plant:

      Application

      Description

      Agriculture Food

      Extraction of pesticides and soil contaminants. Separation of fats and contaminats,flavors.

      Pharmaceutical

      Extraction of active components, preparation of natual products, viamins.

      Cosmetic

      Extraction of fragrances and oils.

      Laundry

      Dry cleaning of garments.

      Mechanical

      Degreasing parts, precision cleaning of high-value componets.

      A wide range of industries for the extraction of natural products for the food additives (such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc), drugs (such as artemisia annua vegerarian, magnolia, angelia, etc), health care (such as sea buckthorn, samara, pomegranate, lycopene, etc).

      Reliable quality raw material of supercritical co2 extractor:

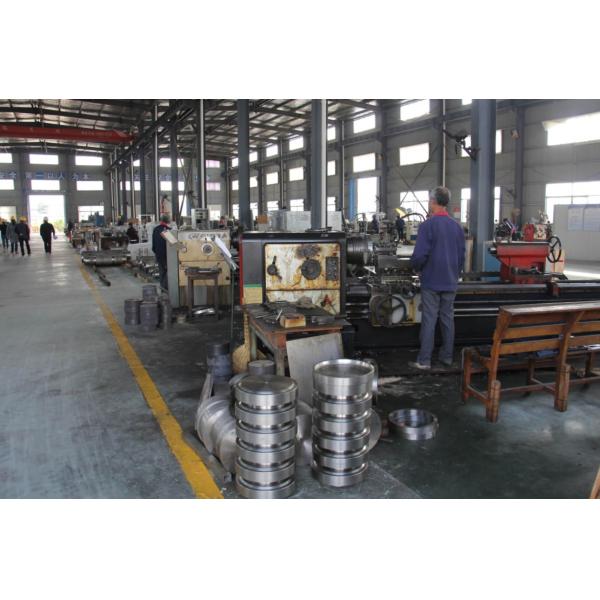

      Production process and TOPTION supercritical fluid extraction machine workshop:

      Products showcase of supercritical co2 extraction of essential oil:

      Related cbd oil molecular distillation equipment

    • Technical parameters of supercritical co2 extraction of essential oil:

      Model

      Extraction capacity

      Pressure

      Temperature range

      Combining form

      TOP120-50-0.5

      0.5L

      500bar

      RT-75℃

      One extracting pot-two separating pot circulation mode.

      TOP121-50-0.5

      0.5L

      500bar

      RT-75℃

      One extracting pot-two separating pot one rectifying column circulation mode.

      Main configurations of TOPTION brand supercritical co2 extraction cbd:

      Extraction kettle Separation kettle CO2 high pressure pump
      Entrainer pump Refrigeration system Heat exchange system
      CO2 stock tank Liquidometer Purification system
      Flow meter Temperature control system Safety protection device
      Feed cylinder hoisting system

      Main features of this set laboratory co2 oil extraction kit:

      1. It can be extracted at near normal temperature without destroying biological active substances, especially suitable for the separation, extraction of heat-sensitive and easily oxidized substances.

      2. The extract has no residual solvent, so it is called “100% natural”.

      3. Extraction process parameters are easy to adjust and control, and the products have high yield.

      4. Little extraction procedure, simple process, high efficiency and low energy consumption.

      5. CO2 is cheap and easy to use, non-toxic and tasteless, not producing “three wastes”, pollution-free and “environmentally friendly”.

      6. Easy to operate and adjust.

      7. Well selectivity. Can extract out requested component according to control pressure and temperature.

      8. Low operating temperature. Operation often happen under room temperature, which is much better for Heat-sensitive Materials. Because during extraction process, it has avoid “when oxygen oxygenation” and “when light reaction”, product can keep its natural tastes.

      9. Finish within one step, CO2 won’t be left on the products.

      10. CO2 is a kind gas of non-poisonous, tasteless, inflammable, cheap and can be cycle use.

      11. Quick extraction speed.

      Learn more about TOPTION INSTRUMENT, welcome supercritical co2 extraction machine factory visit: info@toption-china.com 24h/7days online service.
