Toption 100L Rotary Evaporator 304 Stainless 100l Rotovap Industrial
Toption 100L Rotary Evaporator 304 Stainless 100l Rotovap Industrial
Toption 100L Rotary Evaporator 304 Stainless 100l Rotovap Industrial
Toption 100L Rotary Evaporator 304 Stainless 100l Rotovap Industrial
Specifications
Applicable Industries :
Lab
Collecting Bottle :
1L
Display :
Digital Display
Lifting :
Automatic
Lifting Method :
Electric lift
Lifting Type :
Automatic lifting
Oil Bath Material :
304 stainless steel
Rotating Power :
30W Brushless Electric Machine
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

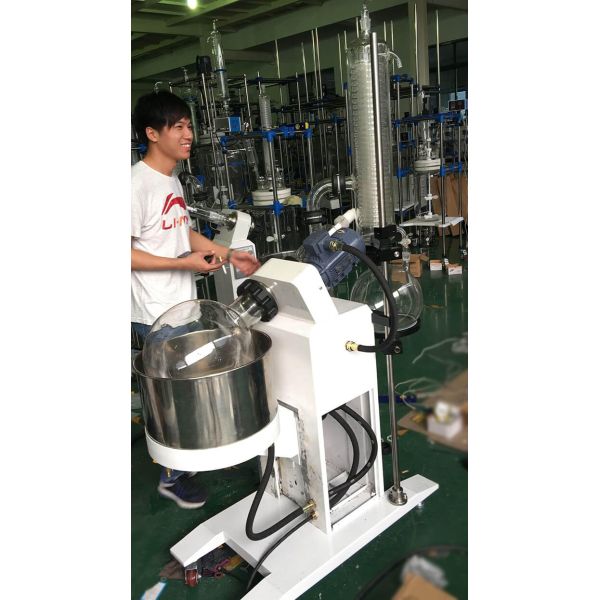

    • 100L Industrial Rotary Evaporator

      Rotary evaporator is mainly used in pharmaceutical, chemistry and bio-pharmaceuticals industries, for concentration, crystallization, drying, separation and solvent recovery.

      TOPTION rotary evaporation equipment is specially suitable for the biological products concentration and purification which is easy to decompose deformation under high temperature.

      Technical parameters of 100L rotary evaporator:

      Product name

      Explosion proof type rotary evaporator
      Type

      RE-100LEX
      Evaporation flask capacity

      100L
      Collection flask capacity

      10L+50L
      Lifting method

      Bath automatic lifting
      Rotational speed

      0-110rpm
      Rotational speed digital display

      Have
      Temperature digital display

      Have
      Water bath power

      16KW
      Temperature sensor type

      K
      Temperature fluctuation accuracy

      ±0.2℃
      Working conditions:

      Environment temperature

      Environment humidity

      Working frequency

      Working voltage

      ≤30℃

      ≤60%

      50Hz

      380V+N+E

      Main configurations of large rotary evaporator 100L rotary evaporation equipment:

      Item

      Quantity

      Unit

      Part Name

      01

      1

      Set

      Electronic control main engine

      Automatic lifting oil & water bath

      02

      2

      Pcs

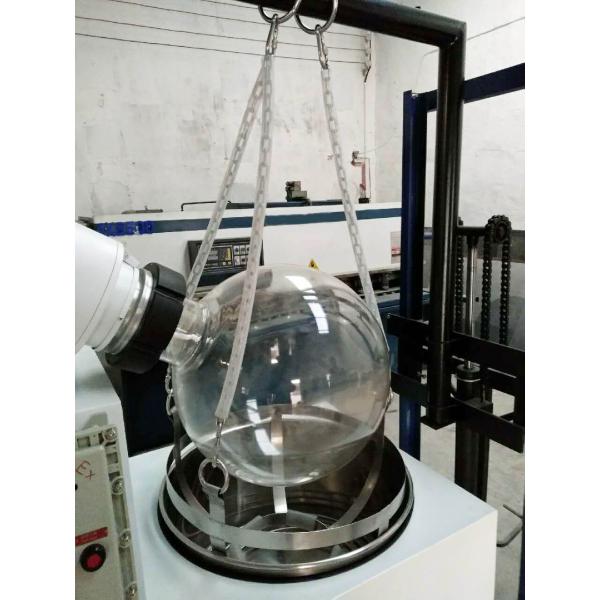

      100L glass evaporation flask

      03

      1

      Pcs

      50L glass collection flask

      04

      1

      Pcs

      10L glass collection flask

      05

      1

      Pcs

      Glass rotation axis

      06

      1

      Pcs

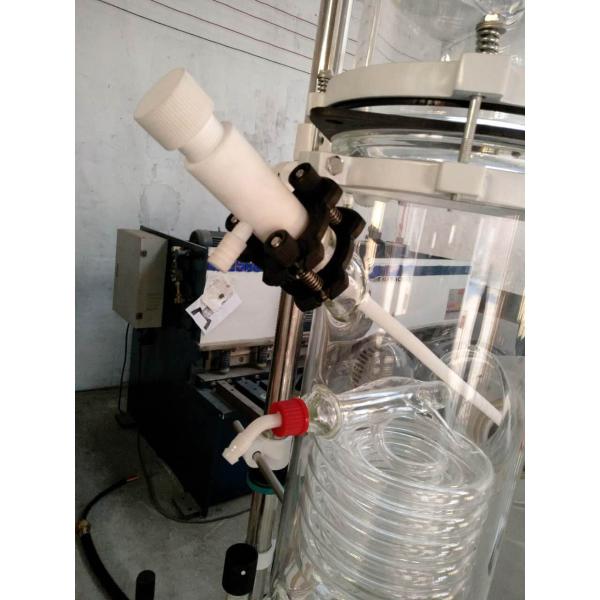

      S-shaped high efficient main glass condenser

      07

      1

      Pcs

      S-shaped high efficient assistant glass condenser cross pipe

      08

      1

      Pcs

      One separate two positions which contains full teflon material feed valve glass connecting pipe

      09

      4

      Pcs

      50# full teflon plug flange glass air relief valve

      10

      2

      Pcs

      60# full teflon plug flange material discharging valve

      11

      1

      Pcs

      50# full teflon material charging valve

      12

      1

      Pcs

      12# full teflon prevent suck-back pipe

      13

      1

      Pcs

      60# Vacuum air exhaust head

      14

      4

      Pcs

      14MM condenser pipe liquid out & in female adapter

      15

      1

      Set

      Evaporation flask clamp

      full teflon sealing gasket

      16

      1

      Set

      Main & assistant condenser pipe connection clamp

      full teflon sealing gasket

      17

      5

      Pcs

      60# flange full teflon sealing gasket

      18

      2

      Pcs

      60# flange full teflon free changeover valve

      19

      4

      Pcs

      50# flange full teflon sealing gasket

      20

      1

      Pcs

      80# flange full teflon sealing gasket

      21

      1

      Pcs

      120# flange full teflon sealing gasket

      22

      5

      Pcs

      50# flange quick opening clamp

      23

      5

      Pcs

      60# flange quick opening clamp

      24

      1

      Pcs

      80# flange quick opening clamp

      25

      1

      Pcs

      120# flange fix clamp

      CE certification reliable quality rotary evaporator customize, more than 10 years rotary evaporation technology development, professional design & production rotary evaporator, welcome factory visit contact info@toption-china.com 24h/7days online service.
