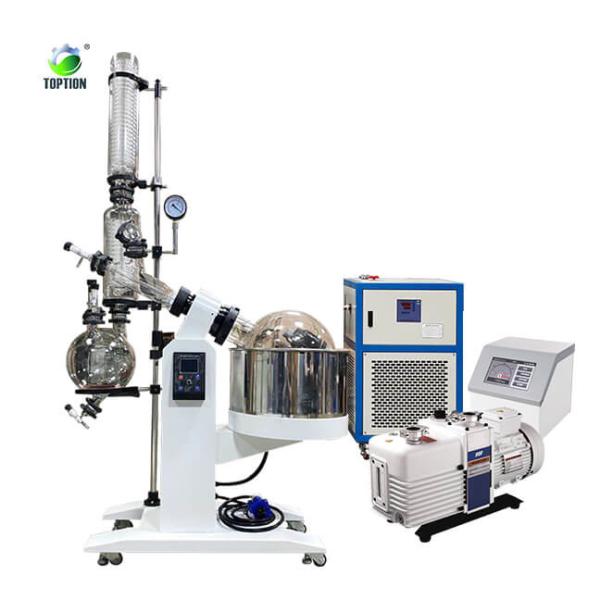

GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
GG3.3 20 Liter Rotovap Distillation 10L 20L Evaporation Lab
Specifications
Bath Material :
Stainless Steel
Condense Area :
0.31㎡
Condenser Type :
Vertical
Core Components :
Sealing
Evaporating Speed :
water: 5L/h, alcohol: 14.3L/h
Glass :
high borosilicate GG3.3
Material :
High Borosilicate Glass
Rotation Control :
Rotary stepless control
Rotation Flask :
5L 10L 20L 50L
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • rotovap distillation

      TOPTION rotovap distillation equipment wide application include manufacturing plant, evaporation, concentration, chemistry, pharmaceutical, CBD industry, ethanol / alcohol recovery, solvent remove, etc. Fully customizable with wide capacity range 100L 50L 30L 20L 10L 5L 3L 2L 1L, cooling circulating pump ( chillers ) and vacuum pump are available, rotary evaporator complete set factory directly sale help you save cost most.

      The working principle of rotary evaporator is under the vacuum condition, constant temperature heating, evaporation bottle be rotary by constant speed, material forming a large area film at the wall of bottle, efficient evaporation. Solvent vapors through the efficient glass condenser cooling, recycling in the collection bottle, improve the efficiency of evaporation.

      Technical parameters of rotary evaporator 20l

      Model RE-5210 RE-5220
      Warranty period 1 Year
      Voltage 220V/110V, 50/60Hz (customizable)
      Power 3000W 5000W
      Capacity 10L 20L
      Rotating flask 10L / F95 20L / F125
      Collection flask 5L, bottom discharge 10L+3L, bottom discharge
      Lifting type Automatic lifting
      Dimension 1250x800x800 1260x1030x780
      Weight 140 kg 145 kg
      Certification CE/ISO9001
      Advantages Long Service Life, Easy to Operate, Energy saving, High Safety Level
      Package 1. The glass parts will be wrapped with foam,then put into the carton; the main body portion will be packed in wooden cases.
      2. Both neutral and customized packaging can be available.

    • Structure and advantages of rotary evaporator equipment
