Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Alcohol Distillation Rotary Evaporator Stainless Steel 2L Rotovap
Specifications
Application :
Chemical Industry
Bath Material :
Stainless steel
Capacity :
1-2L
Condenser Type :
Vertical
Heating Bath :
Stainless steel water bath
Item :
Rotary Evaporator R-1050CE
Material :
High Borosilicate GG-17
Process :
Vacuum Distillation
Temp Control :
PID Controller
Up And Down :
Manual Up And Down Of Bath Kettle
Vacuum Gauge :
oil vacuum gauge
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

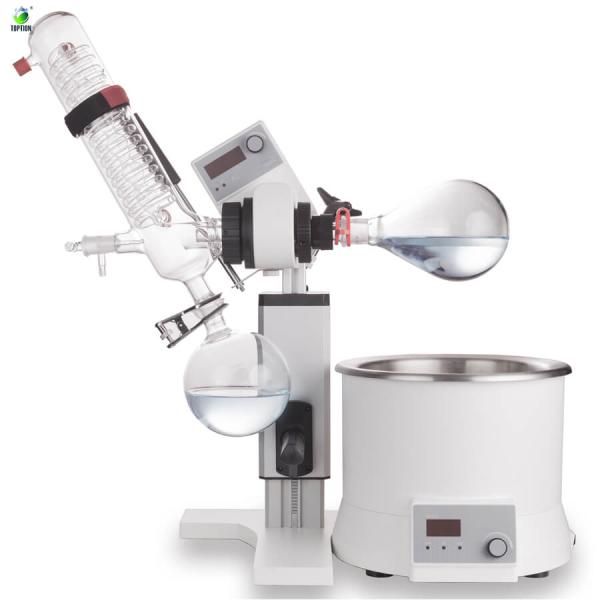

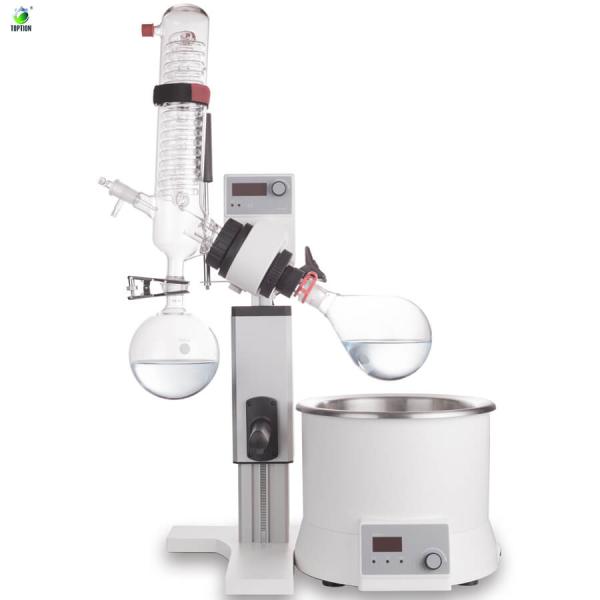

    • Alcohol Distillation Rotary Evaporator

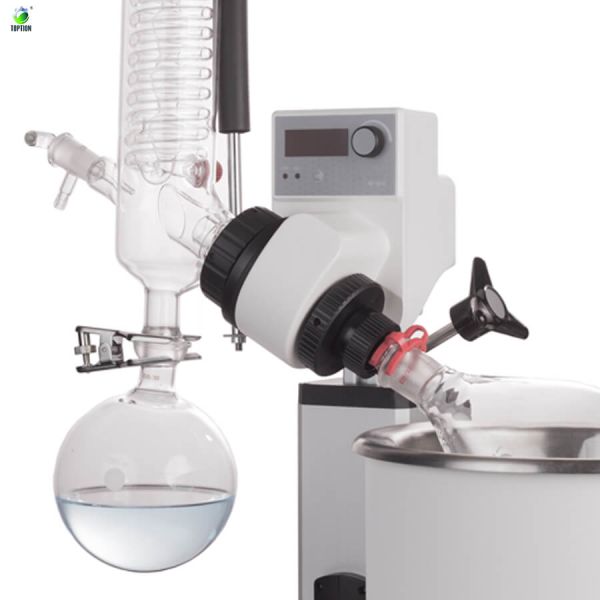

      TOPTION LED Digital Rotary Evaporator is an essential instrument in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.

      This set lab mini rotary evaporator can be combined with vacuum pump, vacuum controller and circulating chiller to provide excellent distilling solutions in a wide range of applications.

      Technical parameters of alcohol distillation rotary evaporator:

      Specifications RE100-S alcohol distillation rotary evaporator
      Motor Type Brushless DC motor
      Speed Range 20-200rpm
      Display LED (Speed, temperature, time)
      Clockwise and Anti-clockwise Yes
      Heating Temperature Range Room temp. to 180℃
      Control Accuracy Water:±1℃ oil: ±3℃
      Heating Power 1010 W
      Stroke Displacement Manual 110mm + auxiliary100mm
      Interval Time Setting Range 1~999s
      Dimension [D×W×H] Main Unit: 440×320×450mm
      Heating Bath: 300x300x240mm
      Weight Main Unit: 7kg Heating Bath: 3kg
      Permissible Ambient Temperature 5~40oC
      Permissible Relative Humidity 80%RH
      Protection Class IP20
      USB Interface Yes
      Voltage/Frequency 100~120/200~240V 50/60 Hz
      Power 1100 W

      Main features of laboratory condenser rotary evaporator:

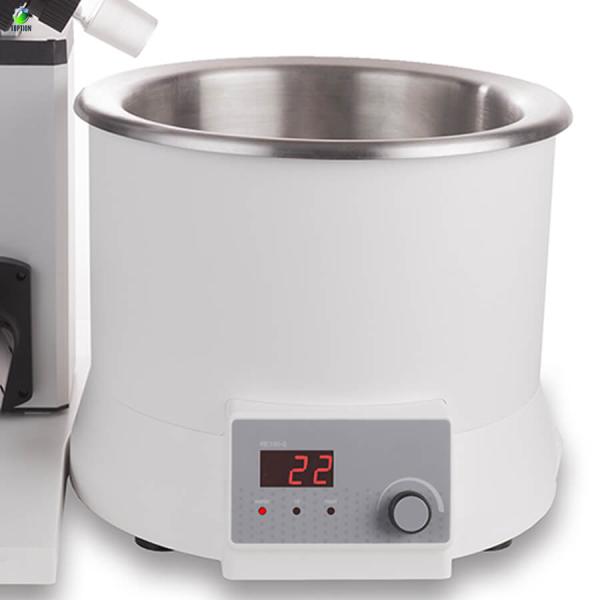

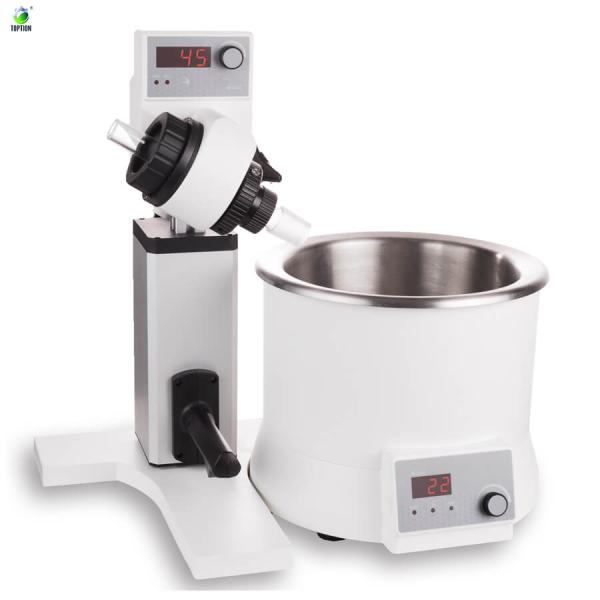

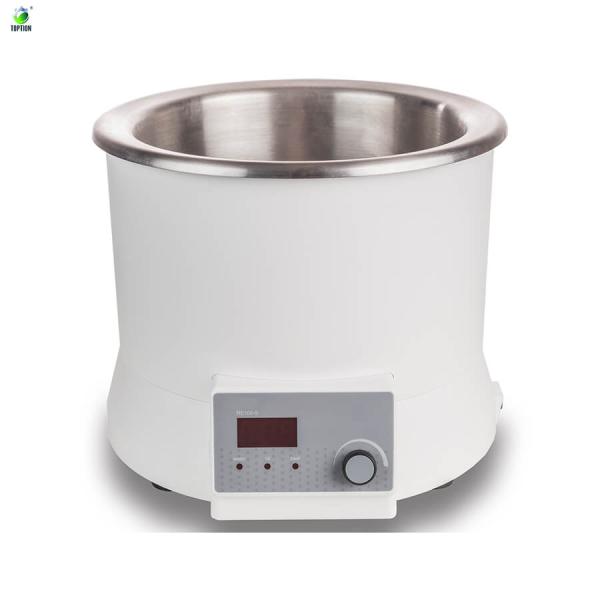

      1. 5L heating bath with a wide temperature range (RT~180°C), independent temperature control, make it can be used separately. Water/oil heating mode can be changed only through a switch.

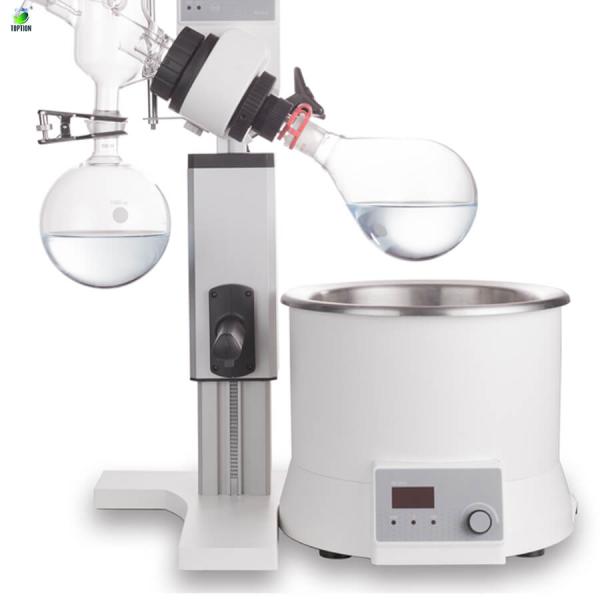

      2. Manual lift combined with auxiliary lift for precise positioning of the glassware.

      3. PID control ensures high temperature accuracy at ±1℃ (water).

      4. Overheating protection temperature at 220°C.

      5. Boil-dry protection, automatically power off if heating without water/oil in the heating bath.

      6. Speed range from 20 to 200rpm, timing interval operation in clockwise and anticlockwise directions for drying process.

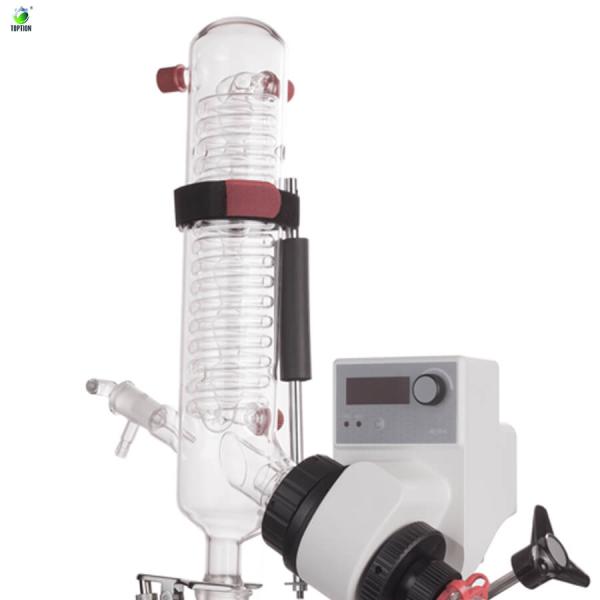

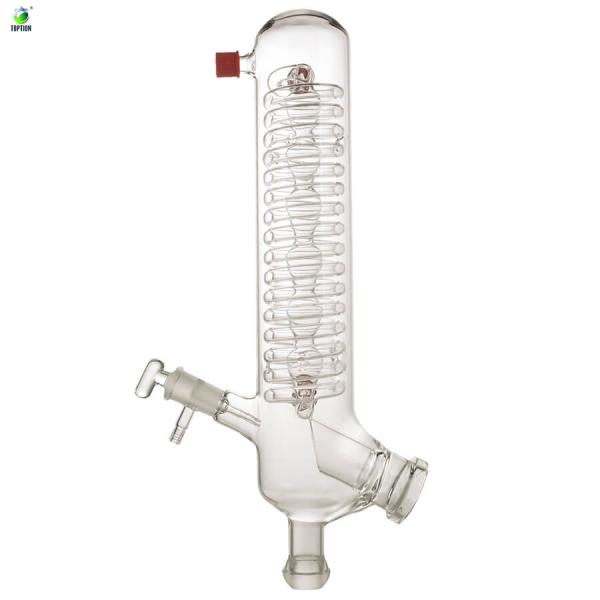

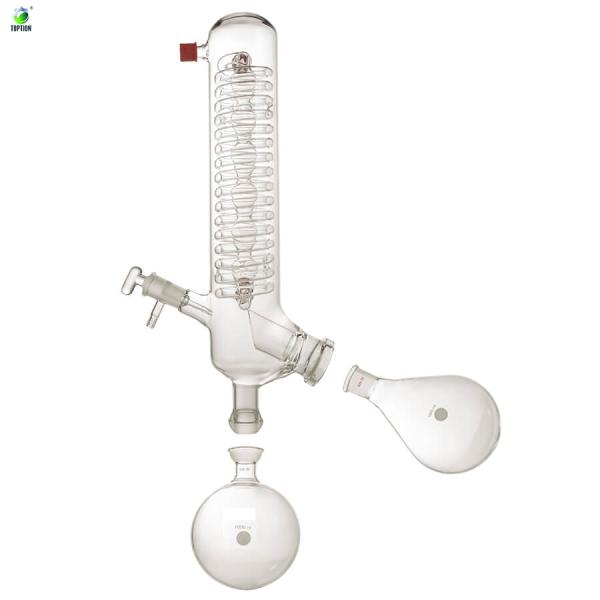

      7. Patented condenser (cooling surface 1200/1700cm2 for selection), double helix condensing tube + center circular arc design to speed up the flow rate of liquid with excellent cooling effect.

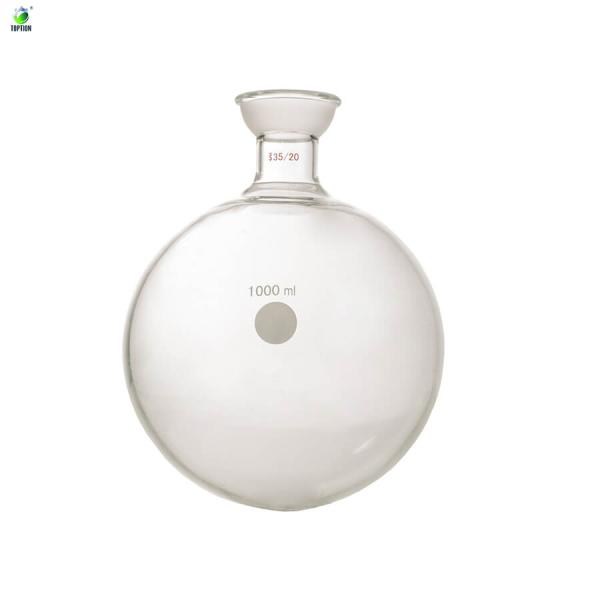

      8. Ejection mechanism ensures easy exchange of evaporating flask.

      9. Adjustable immersion angle

      Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance.

      10. Remote function provides PC control and data transmission.

      Quality is our culture, strickly on every detail quality.

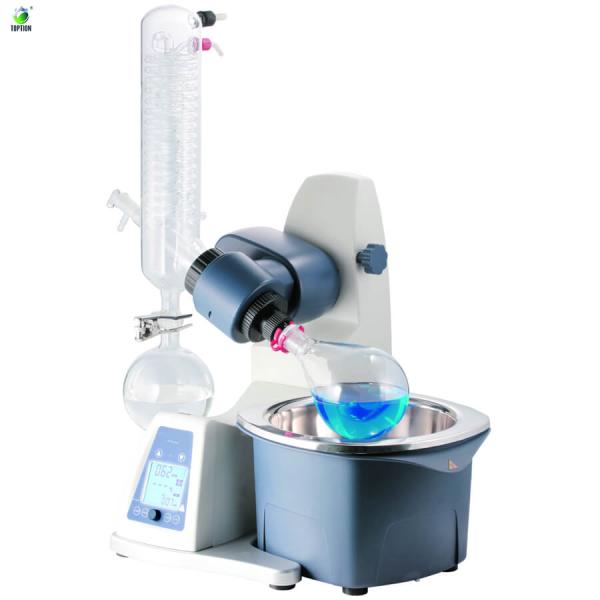

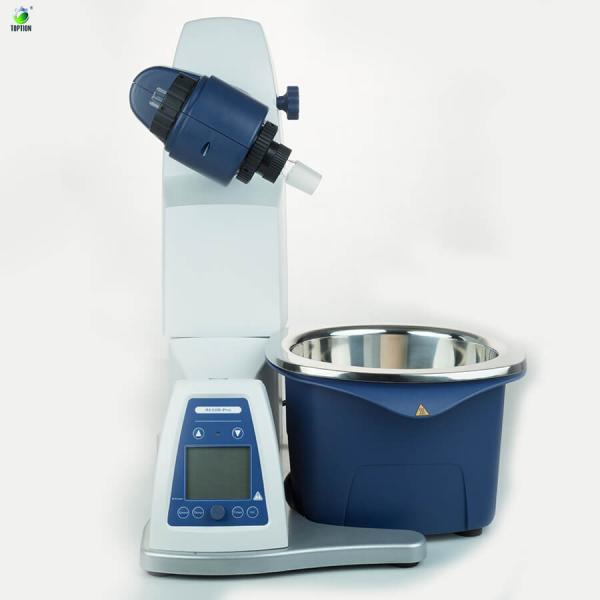

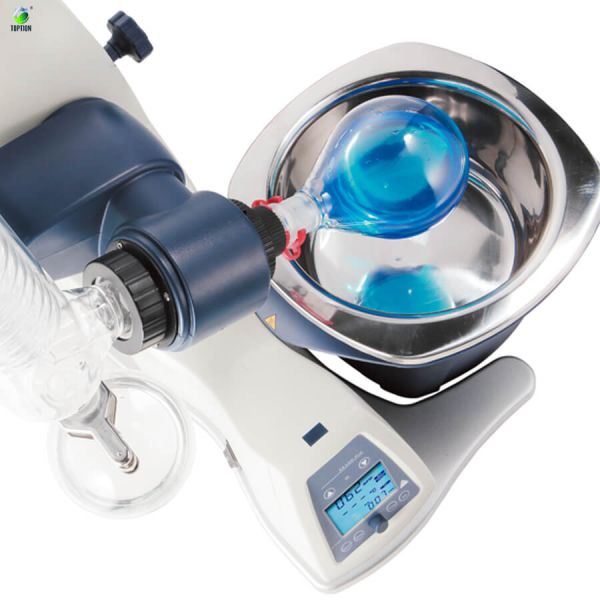

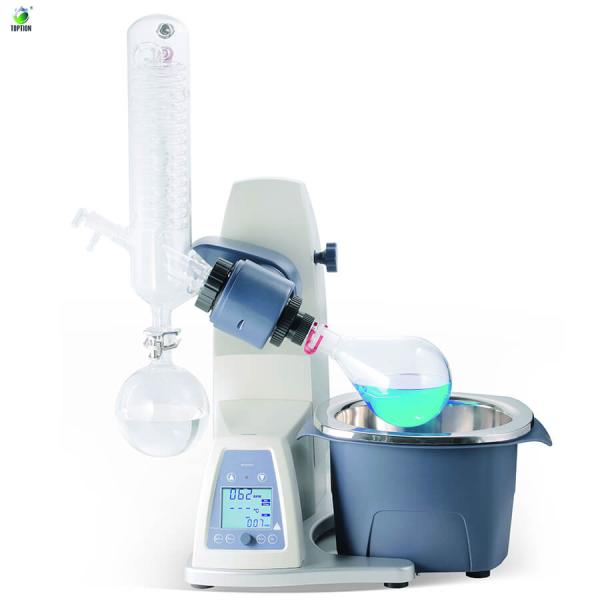

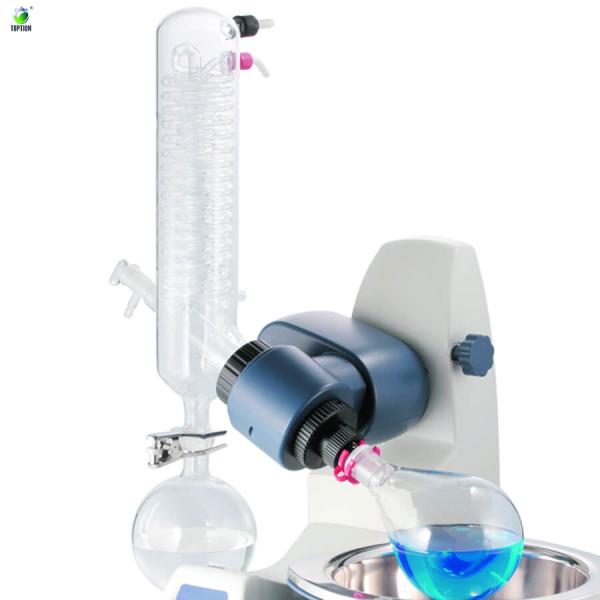

    • RE100-Pro LCD Alcohol Distillation Rotary Evaporator

      Technical parameters of fractionating distillation rotary evaporator:

      Specifications RE100-Pro fractionating distillation rotary evaporator
      Motor Type Brushless DC motor
      Speed Range 20-280rpm
      Display LCD (speed, temperature, time)
      Clockwise and Anti-clockwise Yes
      Heating Temperature Range Room temp. to 180oC
      Control Accuracy ±1℃
      Heating Power 1300W
      Stroke Displacement automatic 150mm
      Timer Yes
      Time Setting Range 1-999min
      Dimension[D×W×H] 465×457×583mm
      Weight 15kg
      Permissible Ambient Temperature 5-40℃
      Permissible Relative Humidity 80%RH
      Protection Class IP20
      Weight 2.8kg
      Protection class IP21
      USB Interface Yes
      Voltage/Frequency 100-120/200-240V 50/60 Hz
      Power 1400 W

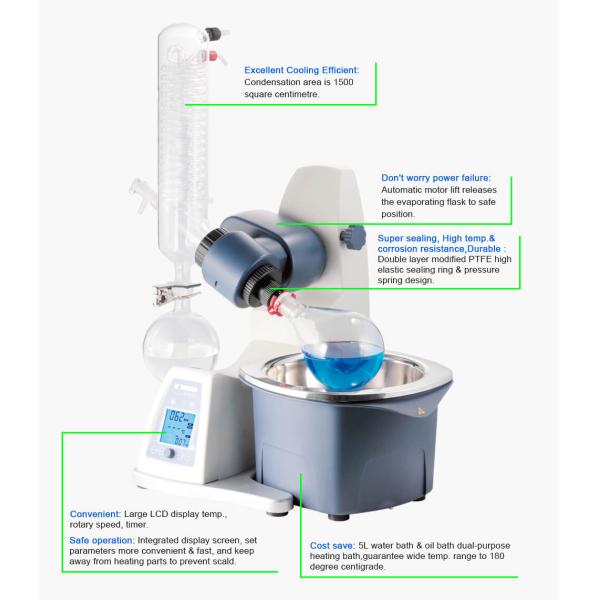

      Main features of mini rotary evaporator:

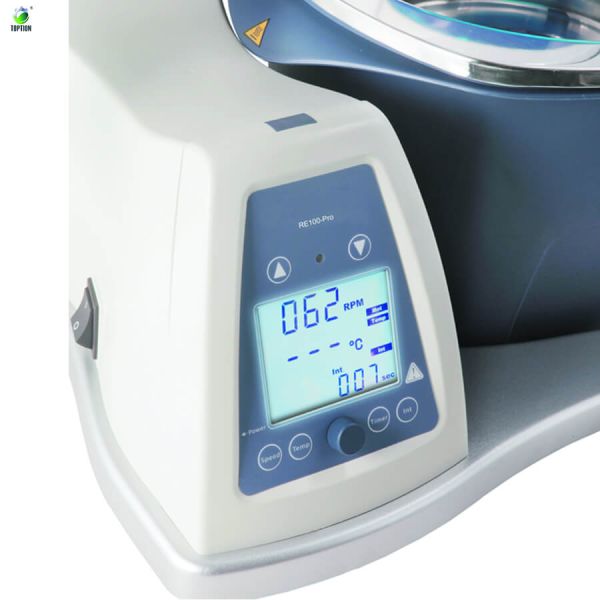

      1. Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes.

      2. Automatic motor lift releases the evaporating flask to a safe position in case of power failure.

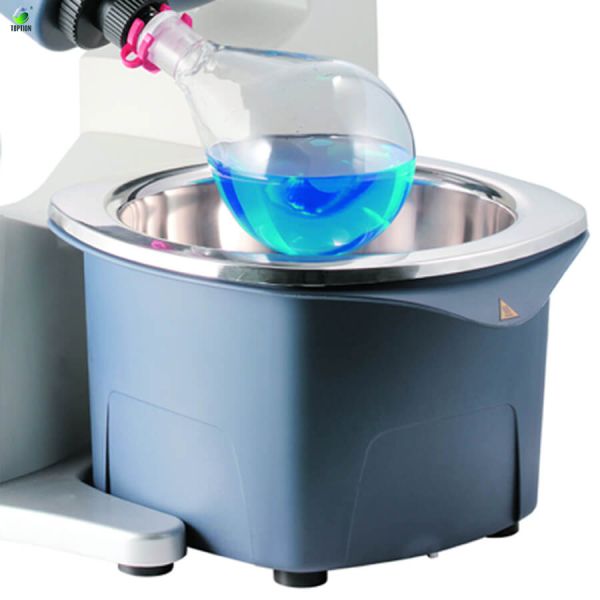

      3. 5L heating bath with wide temperature range from room temp. to 180°C.

      4. Overheating protection temperature at 220°C.

      5. Speed range from 20 to 280rpm, and interval operation in clockwise and anticlockwise directions for drying process.

      6. Patented condenser (cooling surface 1500cm²) with excellent cooling effect.

      7. Ejection mechanism ensures easy removal of evaporating flask.

      8. Patented double spring sealing ring which is made of PTFE provides an excellent sealing performance.

      9. Remote function provides PC control and data transmission.
