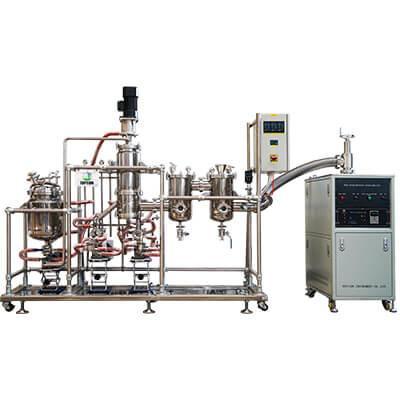

High Vacuum Wiped Film Evaporator Pharmaceutical Short Path Distillation Unit
High Vacuum Wiped Film Evaporator Pharmaceutical Short Path Distillation Unit
Specifications
Application :
Chemical/Pharmaceutical/Food Industry
Distillate Collection :
Condenser
Feed System :
Gear Pump
Film System :
Wiped Filming System
Material :
Stainless Steel
Temperature Control :
Digital Display
Type :
Molecular Distillation Equipment
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • wiped film high vacuum molecular distillation

      Below a distillation plant for laboratory use is described. The plant is used for:

      • Process development.
      • Feasibility studies.
      • Continuous distillation of smaller quantities.
      • For heat sensitive chemical, pharmaceutical and food products.

      The achievable operating pressure could be as low as 0.001 mbar in the short path evaporator. (Depending on product and process).

      Technical parameters of TOPTION this set thyme oil distillation machines:

      Type of molecular distillation

      MDS-30B short path distillation unit

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      18– 30 kg/h

      Evaporation surface

      0.3 m²

      Surface of internal condenser

      0.5 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      Main features of oil distillation machine:

      1. Material feeding system: 20L jacketed stainless steel feed tank, which is jacket design, can be heated and achieve heat preservation by circulating heat conduction oil.

      High precision gear pump feeding (5-30L/H).

      2. Short path evaporator is made of S304 stainless steel material, its evaporator surface: 0.3㎡.

      3. Heavier component discharge system and Lighter component discharge system both are 30L stainless steel tank.

      4. Heating & Cooling Unit, vacuum pump (could achieve 10Pa, 1Pa, 0.1Pa) are equipped well.

      5. Gage pressure vacuum display, with vacuum regulator.

      Related laboratory type molecular distillation equipment:

      Application of TOPTION brand cbd thc molecular distillation equipment:

    • High Vacuum Wiped Film Evaporator Pharmaceutical Short Path Distillation Unit

    • Technical parameters of essential oil distillation machine:

      Type of molecular distillation

      MDS-30BE wiped film high vacuum molecular distillation

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      18–30 kg/h

      Evaporation surface

      0.3 m²

      Surface of internal condenser

      0.5 m²

      Surface of external condenser

      0.5 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      1. 20L jacketed stainless steel feed tank, jacketed design.

      2.High precision gear pump feeding (5-30L/H), stable and continuously material feeding.

      3.0.3㎡ S304 stainless steel short path evaporator.

      4.30L collecting tank * 2pcs, different for heavier component discharge system and lighter component discharge system.

      5.External condenser system: 1set condenser whose heat exchange area is 0.5㎡, material is S304 stainless steel.

      6. Heating and cooling system, vacuum system ( could achieve 10Pa, 1Pa, 0.1Pa) are equipped well.

      Laboratory type short path molecular distillation unit:
