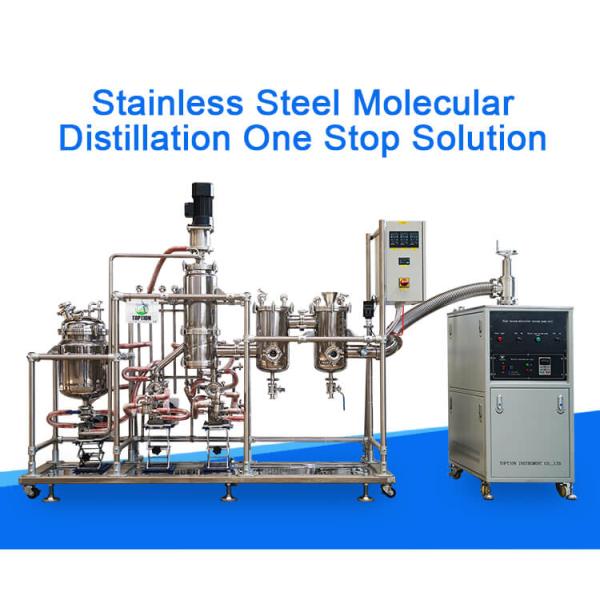

20l Short Path Distillation Essential Oil Distillation Machine Thin Film
20l Short Path Distillation Essential Oil Distillation Machine Thin Film
Specifications
Application :
Concentration/Distillation
Film System :
Wiped Filming System
Heating Method :
Electric/Steam
Material :
Stainless Steel
Separation Efficiency :
99%
Type :
Molecular Distillation Equipment
Voltage :
220V -60hz
Place of Origin :
China
Brand Name :
TOPTION
Price :
Negotiable
Delivery Time :
15-20 workdays
Payment Terms :
LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Description

    • 20l Essential Oil Distillation Machine Thin Film Short Path

      Molecular distillation process has the advantages of avoiding the problem of toxicity that occurs in techniques that use solvents as the separating agent, and also of minimizing losses due to thermal decomposition. and can be used in a continuous feed process to harvest distillate without having to break vacuum.

      So TOPTION molecular distillation plant is widely used industrially for purification of oils, enrich borage oil in γ-linolenic acid (GLA) and also to recover tocopherols from deodorizer distillate of soybean oil (DDSO).

      1. Technical parameters of TOPTION this set oil distillation apparatus

      Type of molecular distillation

      MDS-30AE molecular distillation of essential oils

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      10– 25 kg/h

      Evaporation surface

      0.2 m²

      Surface of internal condenser

      0.4 m²

      Surface of external condenser

      0.4 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      2.Main features of 20L stainless steel short path distillation:

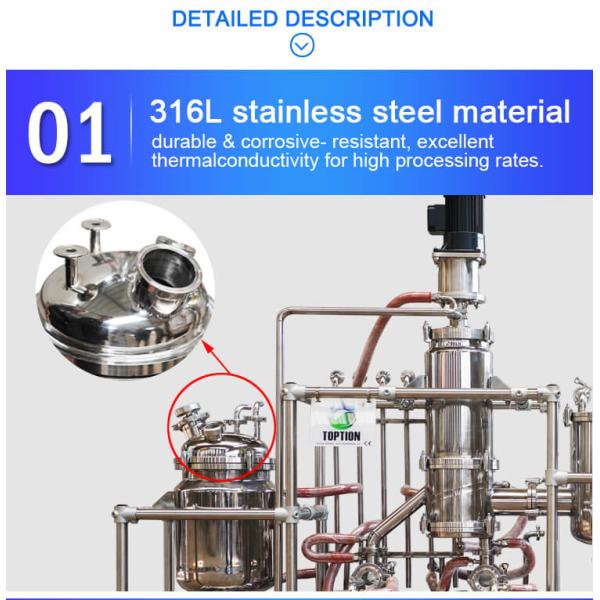

      – 20L jacketed stainless steel feed tank, which has built-in integrated PTFE pressure differential valve feeding tank, jacket design, can be heated and achieve heat preservation by circulating heat conduction oil.

      -Material feed through the evaporator’s top side, which could make a small amount of low boiling point impurity be degassing, prevent material liquid splashes caused by material foaming.

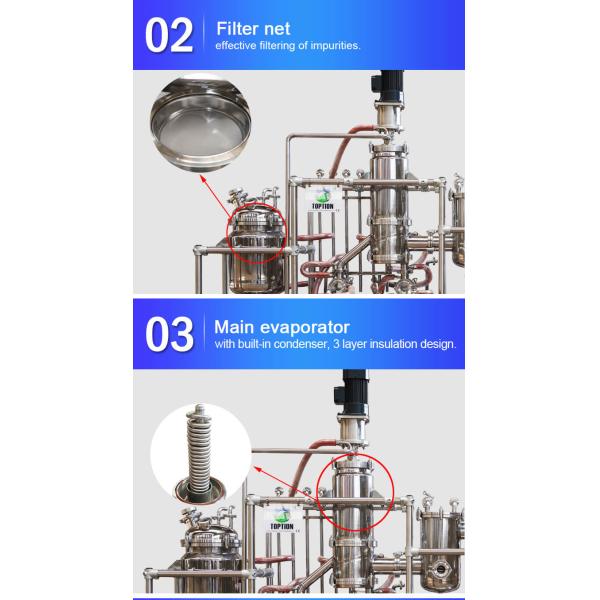

      -S304 stainless steel short path evaporator, whose surface is 0.2㎡.

      -Heavier component discharge system and lighter component discharge system both are 30L capacity.

      – External condenser system: 1set condenser whose heat exchange area is 0.4㎡, material is S304 stainless steel.

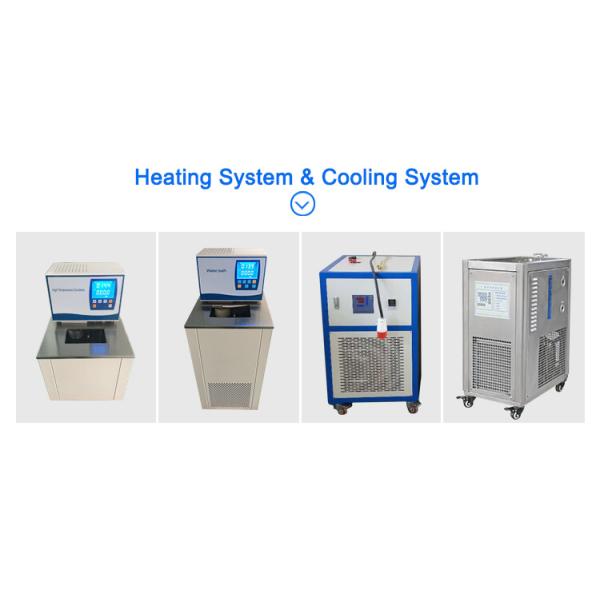

      – Heating & cooling system of essential oil molecular distillation machine:

      No.

      Model

      Description

      Features

      Qua.

      1

      UC-A1530 heater

      Matched with main evaporator.

      – Temperature range: RT-300℃.

      – Power: 15KW, AC 380V.

      – Medium: conduction oil.

      1set

      2

      UC-5020 heater

      Matched with feeder and light component’s pipe temperature preservation.

      – Temperature range: RT-200℃.

      – Power: 5KW, AC 220V.

      – Medium: conduction oil.

      1set

      3

      UC-5020 heater

      Matched with heavier component’s pipe temperature preservation.

      – Temperature range: RT-200℃.

      – Power: 5KW, AC 220V.

      – Medium: conduction oil.

      1set

      4

      HR-150 high & low temperature circulator

      Matched with internal condenser.

      – Temperature range: -20~98℃.

      – Power: 15KW custimized, AC 380V.

      – Medium: conduction oil.

      1set

      5

      LX-2000 Chiller

      Matched with external condenser.

      – Temperature range: -20~98℃.

      – Power: AC 380V.

      – Medium: ethyl alcohol.

      1set

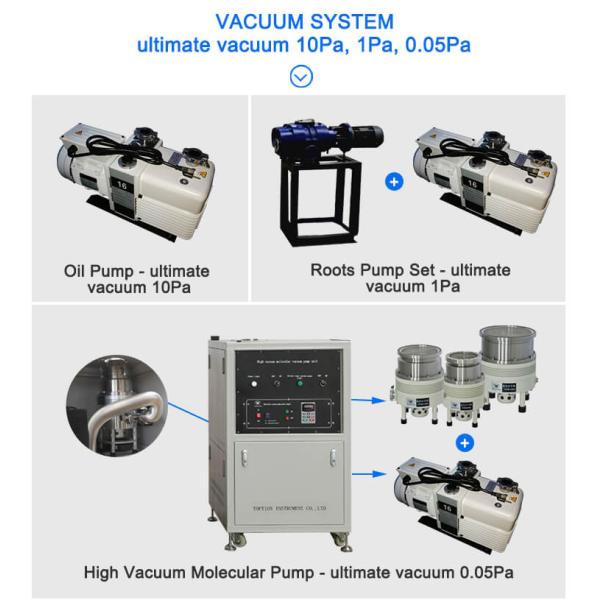

      – Vacuum pump (vacuum degree: 10Pa, 1Pa, 0.1Pa) are equipped well.

      TOPTION as CE certified, ISO approved reliable quality molecular distillation equipment manufacturer, support global installation / training service, welcome factory visit, contact info@toptionlab.com 24h/7days engineers & sales service.

    • Technical parameters of wiped film molecular distillation

      Type of molecular distillation

      MDS-10CE essential oil distillation unit

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      5– 12 kg/h

      Evaporation surface

      0.1 m²

      Surface of internal condenser

      0.15 m²

      Surface of external condenser

      0.15 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature:5000 centipoise.

      Your benefits of TOPTION brand stainless steel molecular distillation:

      1. Full jacketed layer insulation for all pipelines which the materials flow through. Ensure there will be no solidification which will affect material’s separation.

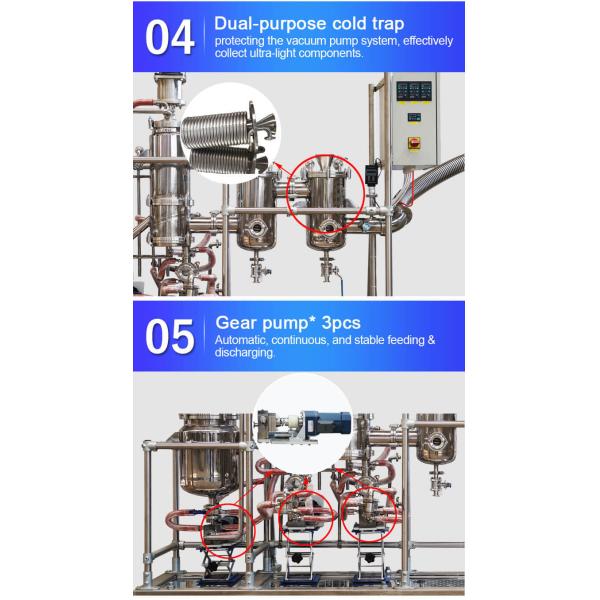

      2.High precision gear pump feeding material: ensure material discharging is continuously and stably.

      3.Dual external cold trap design: though only 1 set equipment to complete the multistage effect of film degassing and molecular distillation separation.

      4.Reliable quality vacuum pump: There has exhaust separator after the vacuum pump, the pump outlet will not discharge oil vapor, ensure working environment no peculiar smell.

      5.Professional heating & cooling system: heater temperature control range: RT- 300 ℃, precision 0.1 ℃. For the chiller the lowest temperature can reach to -20℃.

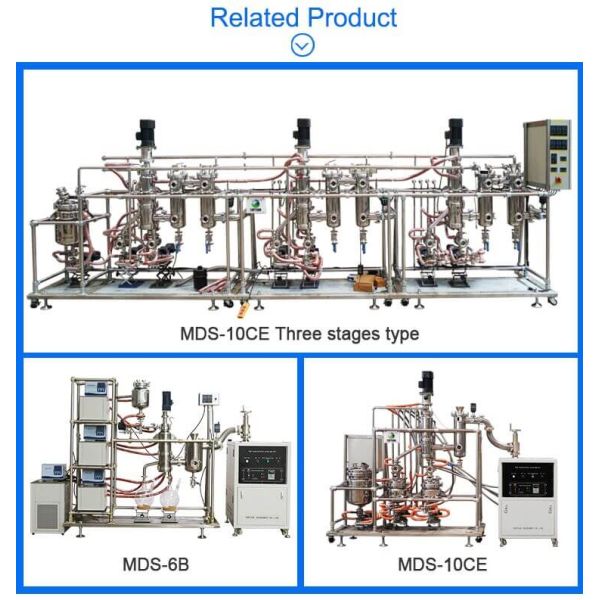

      Multistage molecular distillation equipment for sale, support professional customize according to your working process, include vacuum system & temperature control system ( heating & cooling circulator bath).

    • Technical parameters of wiped film short path distillation:

      Type of molecular distillation

      MDS-6CE molecular distillation of essential oils

      Maximum distillation temperature

      300 °C

      Minimal achievable operating pressure

      (depending on product)

      < 0.001mbar with rotary vane pump and oil diffusion vacuum pump.

      Throughput (depending on product)

      1–3 kg/h

      Evaporation surface

      0.06 m²

      Surface of internal condenser

      0.1 m²

      Surface of external condenser

      0.1 m²

      Wiped film system

      Scraper type film scraping rotor

      Maximum viscosity of product can be processed

      Under operating temperature: 5000 centipoise.

      Main features of this set short path distillation turnkey:

      1. 20L jacketed stainless steel feed tank.

      2.High precision gear pump feeding (5-25L/H).

      3.S304 stainless steel evaporator evaporation surface is 0.2㎡.

      4.Collecting material: 30L * 2.

      5.External condenser system whose heat exchange area is 0.4㎡, material is S304 stainless steel.

      6.Heating and cooling system, vacuum pump (10Pa, 1Pa, 0.1Pa) are equipped well, help you save time and cost.

      Application of short path molecular distillation machine:

      Applied industry Examples of the species of refined products
      Food Monoglycerides, palm oil, tocopherol, fish oil, rice bran oil, fatty acids and their derivatives, dienoic acid,

      Vegetable oil, diglycerides, glutamate, cream, lactic acid, linseed oil, dimer acid,etc.

      Pharmaceutical

      		 Acyl chloride, amino acid ester, vitamin E, glucose derivative, terpene ester, natural or synthetic vitamin, beta-carotene, gingerol, capsicum pigment,etc.
      Chemistry Advanced alcohols, glycerides, herbicides, halogenated alkanes, pesticides, silicone oils, waxes, fatty acids, etc.
      Plastic industry Epoxy resin, epoxidated oil, isocyanate, plasticizer, stabilizer, polyether and polyether polyol,etc.
      Petroleum industry Base oil, bright oil, lubricating oil, vaseline, fir oil, residual tar, etc.

      Cosmetic industry

      		 Lanolin fatty acid, lanol, including algae, roots of plants, extract of capsicum, high fat ester, turmeric essential oil, dry ginger essential oil,etc.

      Lab – Pilot – Industry wide capacity range molecular distillation equipment optional
